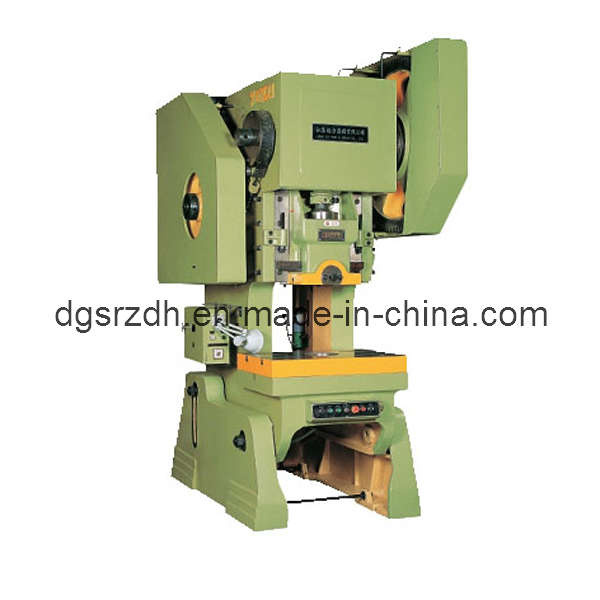

JE21 series modle D power press machine with open fixed table and adjustable travel
Press machine point concise:
Crankshaft mounted in transverse direction, friction clutch compact structure and handsome appearance
Press machine features:
This press machine with open fixed table and adjustable travel, with the crankshaft being placed vertically, it marked with compact structure and handsome outlook.
The crankshaft is fitted with the travel regulating device. Adjustment of this device allows the change of sliding block travel, meeting the specific requirements of different technological process
Pneumatic friction clutch and brake are adopted to ensure steady engagement, sensitive movement and low noise level.
The press machine use of duplex safety valve and PLC ensures safety and reliability in operation
Power press specifications:
|
model |
JH21-25D |
JH21-45D |
JH21-63D |
JH21-80D |
JH21-110D |
JH21-160D |
|
nominal force |
kn |
250 |
450 |
630 |
800 |
1100 |
1600 |
|
stroke under nominal force |
mm |
3 |
4 |
4 |
5 |
6 |
0.5-6 |
|
slide block stroke |
mm |
10-110 |
20-120 |
10-150 |
10-150 |
10-160 |
10-160 |
|
number of stroke |
fixed |
spm |
100 |
80 |
70 |
60 |
50 |
40 |
|
variable (optional) |
spm |
80-120 |
70-90 |
60-80 |
50-70 |
40-60 |
35-50 |
|
max die set height |
mm |
250 |
270 |
300 |
320 |
350 |
350 |
|
die set height adjustment |
mm |
50 |
60 |
80 |
80 |
80 |
110 |
|
distance from slide block centre to the frame |
mm |
210 |
230 |
300 |
300 |
350 |
380 |
|
worktable dimensions (f.b*l.r) |
mm |
400*700 |
440*810 |
570*900 |
580*1000 |
680*1150 |
740*1300 |
|
dimensions of worktable hole |
mm |
170*20*150 |
180*30*160 |
200*40*180 |
200*40*180 |
260*50*220 |
300*50*260 |
|
thickness of bolster |
mm |
80 |
110 |
110 |
120 |
140 |
150 |
|
hole dimensions in bed (diameter/f.b*l.r) |
mm |
260*350 |
300*300 |
365 |
365 |
400 |
470 |
|
dimensions of slide block bottom surface(f.b*l.r) |
mm |
300*360 |
340*410 |
400*480 |
420*560 |
500*650 |
580*770 |
|
size of the handle hole (diameter * depth) |
mm |
40*60 |
40*60 |
50*80 |
50*80 |
60*80 |
65*90 |
|
distance between columns of body |
mm |
450 |
550 |
620 |
670 |
760 |
850 |
|
main motor capacity |
kw |
3 |
5.5 |
5.5 |
7.5 |
11 |
15 |
|
outline dimension (f.b*l.r*h) |
mm |
1370*1050*2150 |
1650*1125*2415 |
1850*1210*2600 |
1860*1280*3100 |
2080*1400*3200 |
2280*1550*3400 |
|
net / cross weight |
kg |
3100/3550 |
4350/46850 |
6500/7400 |
8500/9700 |
11500/12700 |
15500/17000 |
