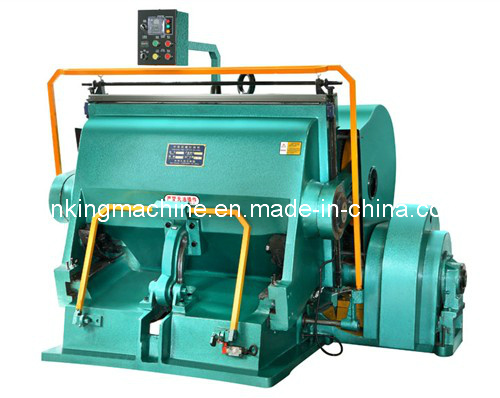

Creasing and Die Cutting Machine/ Die cutter Function characteristics:
This machine is suitable for large area cutting and pressing, which can be used to cut and press paper board, corrugated paper board, plastics, leather, etc. Our machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Technical Parameters:
High strength due to one piece casting by using top-ranging material for machine body. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing. With functions of single, continuous and opening dweel operation, dwell range is adjustable. Single plate electromagnetic clutch is sensitive and reliable. Flywheel is with big moment of force and large pressure. Operating position is reasonably arranged, moving-bed can be opennd to its optimum Central lubrication system guarantees fine lubrication and reduce friction. Safety system is reliable.
|
Model |
ML1300 |
ML1200 |
ML1100 |
ML930 |
ML750 |
ML720 |
|
Platen size(mm) |
1300×920 |
1200×820 |
1100×800 |
930×670 |
750×520 |
720×520 |
|
Max. cutting rule |
≤40m |
≤35m |
≤30m |
≤25m |
≤15m |
≤15m |
|
Working speed |
15±2
times/min |
20±2
times/min |
20±2
times/min |
21±2
times/min |
25±2
times/min |
25±2 times/min |
|
Motor power |
5.5kw-4H 380V/220V |
5.5kw-6H 380V/220V |
4kw-6H 380V/220V |
4kw-4H 380V/220V |
2.2kw-6H 380V/220V |
2.2KW 380V |
|
Net weight |
6000kg |
4800kg |
4500kg |
2800kg |
1800kg |
1600kg |
|
Gross weight |
6300kg |
5200kg |
4800kg |
3000kg |
2000kg |
1800kg |
|
Dimension(mm) |
2400×2100×1950 |
2000×2100×1900 |
1950×2050×1700 |
1600×1820×1600 |
1450×1340×1550 |
1450×1300×1550 |
Wenzhou Qianfeng Technology Co., Ltd. is back-end of PP woven bag machinery manufacturer with scientific research, development, manufacture, sales and service.
It is wellknown and more than years rich experiences, to supply the suitable packaging machinery to all of our clients is our biggest goal!
Our main productions are Flexographic printing machine, Automatic cutting machine, Automatic sewing machine etc for PP woven bag. All above equipments are with the high-end technology patents which is in leading level in current domestic. Be used in proper proportions will reduce the labor intensity and bag cost, improve the bag quality and production efficiency, create more binefit. Our machinery have been exported to over several dozens countries such as Southeast Aisa, Middle East, Middle Aisa, Russia and Africa.
Our purpose is "quality first customer first" with own technical expenrtise, we improve and develop our machinery continuously, the perfect after-sales service to solve problems of the customer who buy products! Our machinery has been good favours by customers of a long time. Welcome all customers to visit us and dicuss cooperation together.
