Mineal Mineral Ore Processing Machine-Crushing Machine, Crusher, Grinding Mill
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Features
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Descriptions

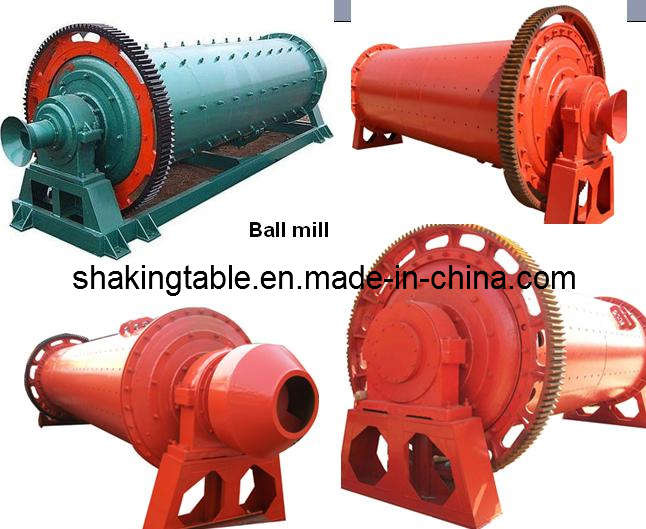

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
|
Model |
Shell rotation speed
(r/min) |
Ball load
(t) |
Feeding size
(mm) |
Discharging size
(mm) |
Capacity
(t/h) |
Motor power
(kw) |
Weight
(t) |
|
Ø900*1800 |
36-38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
|
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
|
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Ø1200*3000 |
36 |
3.5 |
<=25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
|
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Ø1500*5700 |
28 |
12 |
<=25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
|
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
28 |
|
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
|
Ø1830*6400 |
24.1 |
21 |
<=25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
|
Ø1830*7000 |
24.1 |
23 |
<=25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
|
Ø2100*3000 |
23.7 |
15 |
<=25 |
0.074-0.4 |
6.5-36 |
155 |
34 |
|
Ø2100*4500 |
23.7 |
24 |
<=25 |
0.074-0.4 |
8-43 |
245 |
42 |
|
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-0.4 |
8-48 |
280 |
50 |
|
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
|
Ø2200*6500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
|
Ø2200*7000 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-28 |
380 |
54 |
|
Ø2200*7500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-30 |
380 |
56 |
|
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Ø2400*4500 |
21 |
30 |
<=25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Ø2700*4000 |
20.7 |
40 |
<=25 |
0.074-0.4 |
12-80 |
400 |
94 |
|
Ø2700*4500 |
20.7 |
48 |
<=25 |
0.074-0.4 |
12-90 |
430 |
102 |
|
Ø3200*4500 |
18 |
65 |
<=25 |
0.074-0.4 |
----- |
800 |
137 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Capacity(T/H): |
120. |
| Feeding Size: |
25. |
| Material: |
Matal. |
| Power(Kw): |
11-500. |
| Max Ball Load(T): |
1.1-45 |
| Quality: |
ISO9001 |
| Testing: |
Supply |
| Install: |
Supply. |
| Training: |
Supply. |
Jiangxi Gandong Mining Equipment Machinery Manufacturer is a large beneficiation service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of beneficiation, now our factory is the largest manufacturer and supplier of gravity mining equipment in China. Our factory has 12 years experience in mining equipment manufacturing, two special factories directly under the factory specialized in the manufacture of mining equipment and the manufacture of crusher and grinder. Our company covers an area of about 20, 000 square meters and with various large modernized machinery process facilities, professional mechanical and manufacturing engineers, professional mining engineers, as well as professional installation team.
Our factory has been adhering to the "honesty and realistic, quality first, technological innovation" business philosophy, successfully achieved ISO9001: 2008 Quality Management System Certificate, meanwhile cooperated with SGS and obtained SGS Audited Supplier Certificate. In addition, our factory obtained certificate of "Following Contract and Observing Credit" AA level Enterprise from Ganzhou city Administration Bureau for Industry and Commerce, and we signed an agreement of technical cooperation and product development with Jiangxi University of Science and Technology which is known as the "the cradle of nonferrous metallurgical expert", and established "East China Mining Equipment Technology Research & Development Center" and "Jiangxi Shicheng Mining Equipment Technology Research & Development Center" in our factory.
Because of excellent performance of our products and professional after-sale service, our gravity mining machine, flotation machine, classification machine, screening machine are known both at home and abroad, which gravity mining machine has a 35% market share in China. Meanwhile, we adhere to international development strategies, according to the market demand and the superiority of our products, continuously to strengthen up development of international market. Now our products have been exported to over 40 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, SouthAfrica, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, NorthKorea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
