Middle Frequency Induction Casting Machine

Middle Frequency Induction Casting Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
AX-ZL3, Middle Frequency Induction Casting Machine Description
The AX-ZL3 Middle Frequency Induction Casting Machine is upgraded from the High Frequency Induction Casting Machine, it has the following advantages.
1. Highly efficient, low power consumption and low power rating (2.5kW) thanks to the advance all-transistor circuitry.
2. No preheating is needed, melting and casting can start immediately. The interval time between two castings is only two minutes, excellent for continuous casting.
3. It can work under 220V/110V voltage.
4. Safer and more reliable thanks to the low working voltage and low high-frequency radiation.
5. Compact size and lower weight.
Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2, 500W
Motor: 370W
Centrifugal Rev: 550rpm
Centrifugal Radius: 21cm
Casting Method: Centrifugal Casting
Max. Melting Amout: 50g
Heating Method: Medium Frequency Induction Heating
Melting Time: 30g≤ 65sec (standard)
Cooling Fashion: Air Cooling
Dimensions: 93cm x 52cm x 52cm (H W D)
Shipping Dimensions: 111cm x 61cm x 60cm (H W D)
Weight: 120kg

AX-ZL3A: Middle Frequency Induction Casting Machine
Description
The AX-ZL3A Medium Frequency Induction Casting Machine is upgraded from the AX-ZL3 model with digital display and touch control buttons, which makes voltage reading and operations much easier.
Comparing to a high frequency induction casting machine, it has the following advantages.
1. Highly efficient, low power consumption and low power rating (2.5kW) thanks to the advance all-transistor circuitry.
2. No preheating is needed, melting and casting can start immediately. The interval time between two castings is only two minutes, excellent for continuous casting.
3. It can work under 220V/110V voltage.
4. Safer and more reliable thanks to the low working voltage and low high-frequency radiation.
5. Compact size and lower weight.
Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2, 500W
Motor: 370W
Centrifugal Rev: 550rpm
Centrifugal Radius: 21cm
Casting Method: Centrifugal Casting
Max. Melting Amout: 50g
Heating Method: Medium Frequency Induction Heating
Melting Time: 30g≤ 65sec (standard)
Cooling Fashion: Air Cooling
Dimensions: 93cm x 52cm x 52cm (H W D)
Shipping Dimensions: 111cm x 61cm x 60cm (H W D)
Weight: 120kg

AX-ZL5: Vacuum Induction Casting Machine
Description The AX-ZL5 Medium Frequency Induction Casting Machine is developed by Aixin Medical. The patented casting machine features compact size, light weight, easy operations, no radiation, and low power consumption. As the casting process is done in an oxygen-free state, the integrity, density and success rate of the castings is increased, which also prevents sand holes, bubbles, and oxidation. Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2, 500W
Motor: 370W Centrifugal Rev: 550rpm
Centrifugal Radius: 21cm Casting Method: Centrifugal Casting
Max. Melting Amout: 50g Heating Method: Medium Frequency Induction Heating
Melting time: 30g≤ 185sec (standard)
Cooling Fashion: Water Cooling
Vacuum Pump: 120W, 1440rpm
Working Pressure: -0.08~-0.09Mpa
Vacuum duration: ≤ 1min
Dimensions: 91cm x 68cm x 54cm (H W D)
Shipping Dimensions: 109cm x 80cm x 650cm (H W D) Weight: 120kg

AX-MAX1: Dental Vacuum Pressure Casting Machine
Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2, 500W
Pressure of Argon: 0.2MPa~0.4Mpa
Cooling Fashion: Water Cooling
Air Flow Rate: 2 cfm
Max. Pressure: 10PA
Max. Melting Amount: 80g
Heating Method: Induction Heating
Dimensions (Part B): 70cm x 64cm x 62cm (H W D)
Shipping Dimensions (Part A): 61cm x 56cm x 54cm (H W D)
Shipping Dimensions (Part B): 78cm x 64cm x 62cm (H W D )
Weight: 120kg

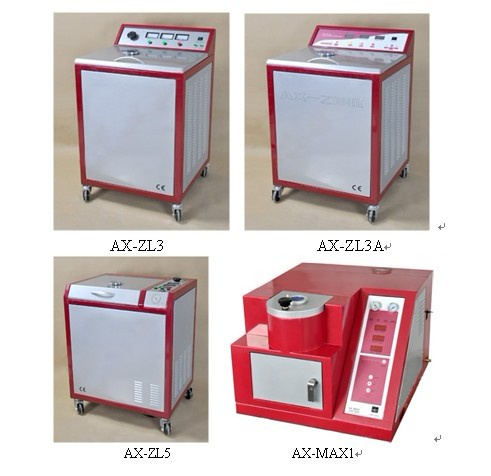

Prod Model: AX-ZL3, AX-ZL3A, AX-ZL5, AX-MAX1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2, 500W
Motor: 370W
Centrifugal Rev: 550rpm
Casting Method: Centrifugal Casting
Max. Melting Amout: 50g
Type: Mechanic Equipment
