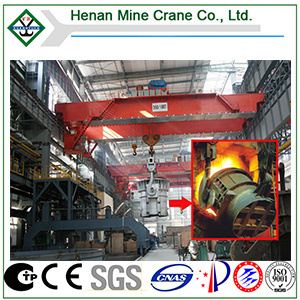

Metallurgy or Casting Overhead Crane for Steel Rolling Mill
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
QDY Model Hook Casting Bridge Crane
Special usage:
This crane is mainly used in BOF bay, EAF bay and CCP bay in steel smelting shop. They have good performance to lift the molten metal. Working class could achieve A7 for long time continuous lifting and transferring work.
Key words which characterize our "steel production" application focus are:
High ambient temperatures
High level of availability
Severe operating conditions
Low-maintenance designs with a long service life
Safety hoist units
Redundant drive systems
Equipment and structure
Normally there are four beams and two trolleys assembled on the crane, laminated ladle hook is equipped on the main trolley for lifting the ladle, and Aux trolley is for overturning the ladle and other assistant handing. The electrical appliance is installed inside of the main girder with heat insulation device and cooling device, the crane can work efficiently under harsh conditions such as high temperature and dust-laden
Use various frequency speed system with speed ratio as1: 10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.
|
Lifting weight |
Primary handcart |
T |
100 |
|
Secondary handccart |
30 |
|
Span |
|
16 |
|
Lifting height |
Primary handcart |
M |
18 |
|
Secondary handccart |
19 |
|
Working class |
A6 |
Speed |
Lift |
Primary handcart |
m/min |
7.54 |
|
Secondary handccart |
8.93 |
|
Travel |
Primary handcart |
35.08 |
|
Secondary handccart |
42.44 |
|
Cart |
76.99 |
Motor |
Lift |
Primary handcart |
Type/kw |
YZR355M-10/90× 2 |
|
Secondary handccart |
YZR280M-10/55 |
|
Travel |
Primary handcart |
YZR160L-8/9× 2 |
|
Secondary handccart |
YZR160M1-6/6.3 |
|
Cart |
YZR225M-8/22× 4 |
Weight |
Primary handcart |
T |
66 |
|
Secondary handcart |
10.25 |
|
Cart |
173 |
|
Max wheel pressure |
KN |
520 |
|
Steel track |
|
QU120 |
|
Power supply |
|
3-phase A. C. 50Hz 380V |
| Prod Model: |
QDY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Ladle Lifting, Tranfering |
| Working Class: |
A7~A8 |
| Capacity: |
up to 40 |
| Control Method: |
Cabin, Pendent Line Control, Remote Control |
| Working Temperature: |
High Temperature Type |
| Assembly Parts For Hook: |
Magnets, Ladle Hook, Scrap Grab, Scrap Basket |
| Auxiliary Hook: |
Available |
| Hoist Mechanism: |
Heavy Duty Trolley Cart Type |
| Power Supply System: |
Include |
| Electrical Parts Brand: |
Siemens and Schneider |
| Condition: |
New |
| Power Source: |
Electric |
| Sling Type: |
Wire Rope |
| Certification: |
GOST SGS |
| Type: |
Bridge Crane |
| Application: |
Mineral Area Usage |
We are a shareholding industry enterprise, engaged in the manufacture and sale of "Kuangyuan" brand electric hoists, single or double beam overhead cranes, gantry cranes, grab cranes, foundry cranes, anti-explosion cranes and related spare parts. We have gotten production, installation, modification and maintenance licenses issued by the General Administration of Quality Supervision, Inspection and Quarantine, and is a director-lever member of China Association of hoisting Industry and China Association of Heavy Equipment Industry.
We have more than 2700 employees, cover 680, 000 square meters and hold RMB380 million capital and over 380 branches around the world. The 1200-plus sets of equipment enable us to finish independently over 20 technological flows, including lathing, milling, planning and grinding. More than 180 medium and senior technical staff members are responsible for the design and production guidance of whole products. We have passed ISO9001: 2000 international quality control standard, ISO14001: 1996 environment and ISO9001: 2001 health and safety standard. We have a perfect quality-control system, a strict management system, strong production capabilities and advanced testing measures to ensure the high production and high quality.
Our company does continually investment, and all kinds of economic targets are increased by 30% annually. Our products are very popular in the market, and have been sold well in more than 30 provinces and cities in China, for instance, our single beam overhead crane has scored No. 1 on quantity for continuous 3 years in Chinese market. Meanwhile, we have exported our cranes to Australia, Vietnam, India, Thailand, the United States, Pakistan, Egypt, Bangladesh, the Philippines, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia and other countries and regions.
Every year, we manufacture and sell more than 3500 sets of double beam and gantry cranes, more than 19000 sets of single beam cranes, more than 23000 sets of the single and double-beam electric hoists and related accessories. Our output and economic benefits per capital are at the first head in the same industry. Our company has won more than 120 honors, such as "Advanced Science and Technology Enterprise", "Top Trademark in China", "Top-10 Brand of Crane in China", "Henan Famous Goods", "Henan Famous Trademark", "Quality Management Qualified Enterprise", "High Credit Enterprise", "Enterprise without Counterfeit, Fraud or Unjust Competition", "Quality Reliable Company", "Advanced Science and Technology company" and "Famous Brand on CCTV Recommended List".
Our company is a high & new technology enterprise in Henan Province, through continuous technology innovation, developing new products, improving the technological content of products to meet the market demands for higher quality hoisting equipments. On the basis of the digestion and absorption of advanced crane design and manufacturing technology in China and abroad, we make the great effort to redesign of the electric hoists and single and double beam cranes, keep pace with the other international similar products company and have occupied the commanding location of the market.
We are in the Central Plains of China, with advantageous geography and humanities, having the scientific management system, automatic office system, huge production capacity, advanced inspection ways and stronger sales nets, then producing the "Kuangyuan" brand series products which have high quality and reasonable prices to serve the markets at home and abroad. The "Kuangyuan" people have a decision to make our company be first class in the crane industry in China, making the great effort to use our wisdom and ability to write out the most brilliant Chinese nation' S industry flying chapter!
Quality makes the brand, integrity weaves bright future and your ideal is our pursuit. We hope cooperate with all kinds of trade friends and create large brilliance together!
