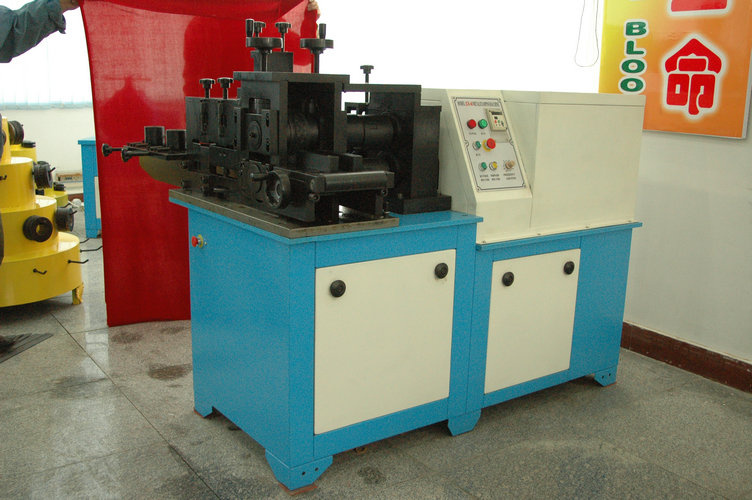

Metalcraft Coining Machine (JGH-60)

Metalcraft Coining Machine (JGH-60)
Price: US $ 6400/Piece
Trade Terms: FOB,CFR
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Contact Supplier
Ningxia Fusheng Machine-Building Co., Ltd.
Showroom Product Company Profile
The Company, having a history of more than forty years, is an enterprise specialzing in manufacturing the small-sized lathes. In our production scope of the tool-sets in JG family are products in two main categories of auto and manual metal craft processing tools along with the milling and drilling machine in six series. The metalcraft tool-sets in JG series have been granted five State Letters Patent as well as prizes for inventions. All kinds of standard metal patterns have been put out in recent years. The products of the company have been sold to scores of the provinces, cities, towns and regions nationwide and have covered the markets in areas such as Europe, America, West Asia as well as South Asia.
ITEMS TECHNICAL PARAMETERS
Dimensions of the
Stocds to be Processed		 Rotation Speed of The Main Shaft
Processing
Capacities
(mm)		 Flat Steel 60 ×10              0~40 r/min
Note: Always chose and use the right
shaft speed in accordance with the sizes
of the stocks to be worked on.(See
Attachment 7 for the positive connection
between rotation speed of the main
shaft and frequency.)
Square Steel 30 ×30
Rectangular
Steel Pipe		 100 × 50
Round Steel φ 8  - φ 20
Decelerator for Cycloidal
Pin-wheel		 380V \50HZ/Power of motor:7.5KW./ Synchronous
Speed of rotation:1500rpm./Output Rotation speed
of Main Shaft:35rpm./Gear Ratio:1:43.
Net Weight (kg) 1050 NOTE: Three sets of pattern-rolling
wheels are attached to your machine
 (For flat steel, square steel and rectangular
 pipe).Other rolling-wheels produced by
us for various patterns are available for
 your option.
Gross Weight (kg) 1260
External dimension(mm)(L) 1636 ×990 ×1330
Prod Model: JGH-60
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method: Free Forging
Warranty: 12 Month
The Company, having a history of more than forty years, is an enterprise specialzing in manufacturing the small-sized lathes. In our production scope of the tool-sets in JG family are products in two main categories of auto and manual metal craft processing tools along with the milling and drilling machine in six series. The metalcraft tool-sets in JG series have been granted five State Letters Patent as well as prizes for inventions. All kinds of standard metal patterns have been put out in recent years. The products of the company have been sold to scores of the provinces, cities, towns and regions nationwide and have covered the markets in areas such as Europe, America, West Asia as well as South Asia.
