We can design and produce the required furnace according to the requiements of the customers.

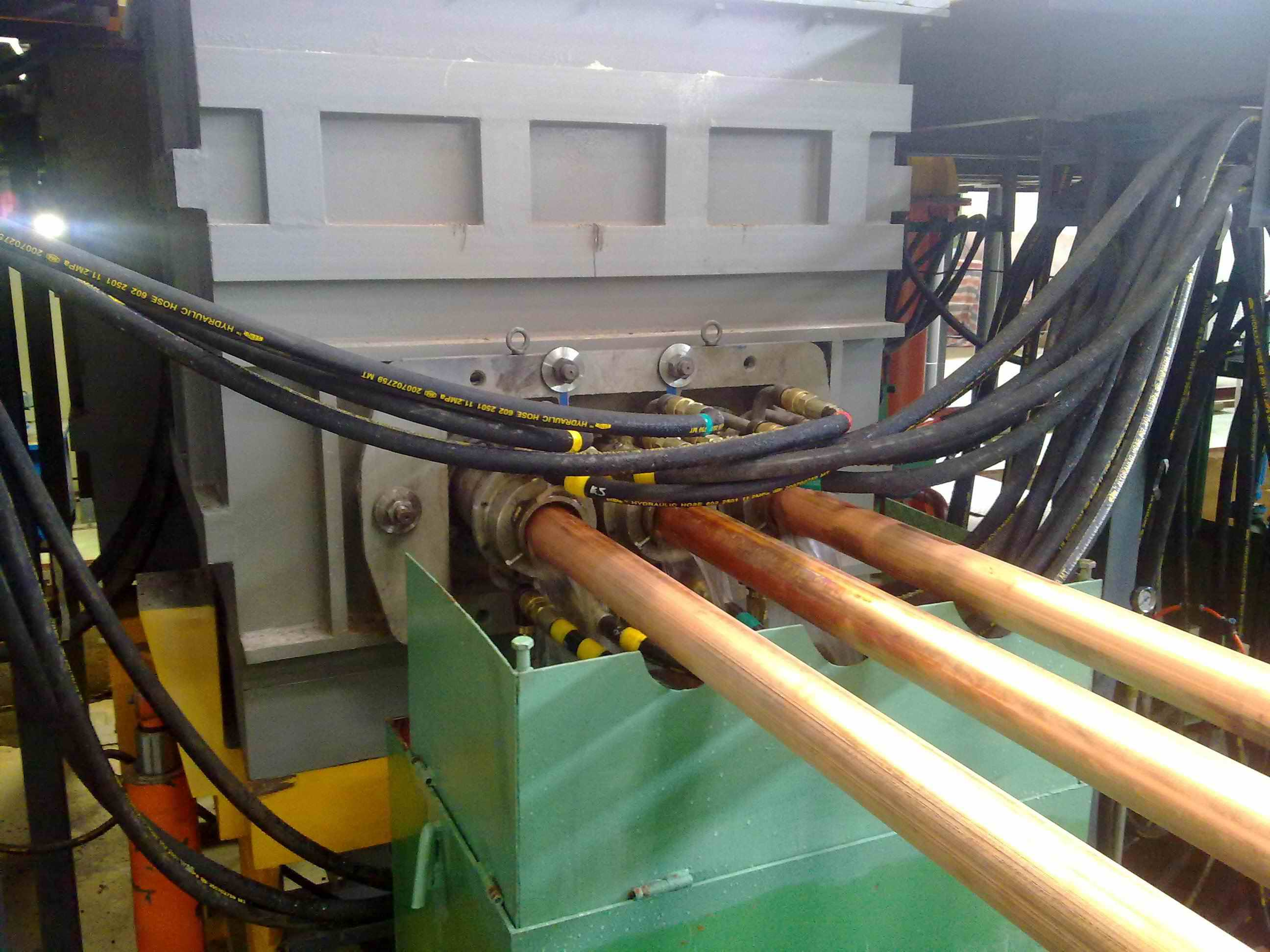

The horizontal continuous casting unit for copper tube/bar consists of a main frequency cored melting-holding combined furnace, a crystallizer, a cooling water system, a servo control withdrawl system, an on-line synchronous saw, a hydraulic system and an electric control system.
The furnace adpots a new combination structure of melting-casting with flowing under surface. The inductor adpots a vertical structure with silicon sheets imported. As the molten metal flows form the melting furnace to the holding furnace under the surface, the heat emission (that would be otherwise caused) is avoided so as to reduce the energy consumption. Meantime, the metal loss is also reduce. As the exposure of the molten metal to the air is substantially reduced, that the product quality can stabilized and enhanced. The parameters of the melting-holding furnace like voltage, amperage, effective power and compensation factor are indicated with signals. The metal temperature in the furnace is continuously measured and displayed. Also indicated are the temperature and pressures of the water for cooling the inductor coils, wrapping sleeves and cables with necessary optic and acoustic alarms equipped.
Different types of the furnace with different price, and the price can be negotiated.
Wuxi Xishan Transformer Electric Furnace Factory was built in 1990, specially producing melting and casting equipment, and heat treatment equipment for non-ferrous production, with complete testing devices and abundant technical capability.
Wuxi Xishan Transformer Electric Furnace Factory is one of the biggest manufacturers in China now. We co-operated and are co-operating with several National Research Institutes. We absorb advanced technology and also develop new technology by our team. In the last few years, we have been awarded by China Non-Ferrous Fabrication Association for Advanced Technology of Furnace. We were also awarded by the government in 2001 as High-Tech Enterprise of Jiangsu Province. We have also successfully cooperated with High-Copper, Sea-Shares, Fujian Zijin, Ningbo Jintian, Qingdao Wang-tai, Shandong Obote, Shagang Group, and other well-known domestic enterprises. We export our products to South Korea, Turkey, Ukraine, Syria, India, and Vietnam. With continuous innovation and improvement, the overall performance of our products has reached advanced standards of domestic similar products. We will continue to strive for "Technology, innovation, brands, and services" together with customers.
We sincerely invite communities and friends at home and abroad to cooperate with us for common development and a better future.
