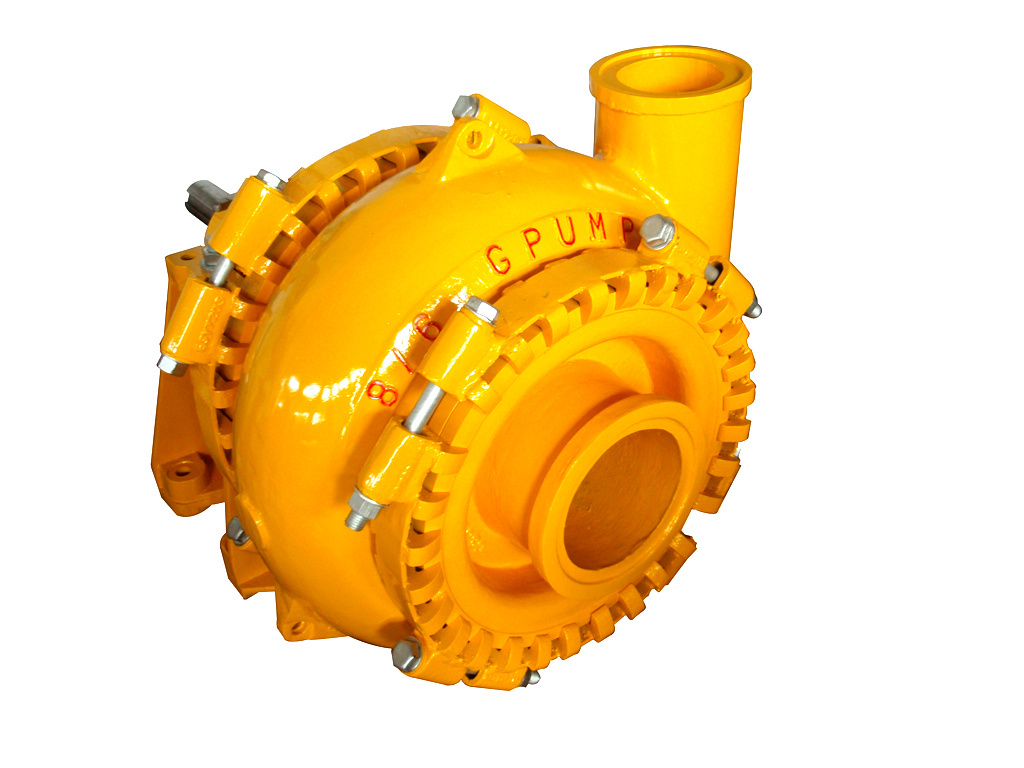

10/8E-M Medium Duty Slurry Dewatering Pump With ISO CE
Name: NP-M Medium Duty Slurry Pump
Pump Type: centrifugal
Drvie Type: ZVz/CRz/CV/DC
Power: motor/diesel
Discharge Size: 8 inch
Capacity: 540-1228m³/h
Head: 15-61m
Feature:
Naipu® NP-M series centrifugal slurry pumps and spare parts could fully interchange with world famous brand.These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal casting liners and Impellers, which are all interchangeable within a common casting assembly.
Typical Applications---
Dense media transfer
Dense media make-up
Bottom boiler and fly ash
Ferrosilicon make up
Thickener underflow
Dewatering
Type Notation :
10X8NP -M
10------ Suction Diameter(inch)
8------- Discharge Diameter(inch)
NP-------- ShiJiaZhuang NaiPu Pump Co.,Ltd
M--------- Medium Duty Slurry Pump
Materials of Construction
|
LINERS |
IMPELLERS |
CASING |
BASE |
EXPELLER |
EXPELLER RING |
SHAFT SLEEVE |
SEALS |
Standard |
Chrome Alloy |
Chrome Alloy |
SG Iron |
SG Iron |
Chrome Alloy
or
SG Iron |
Chrome Alloy
or
SG Iron |
SG Iron |
Rubber |
NP-M SLURRY PUMP PERFORMANCE PARAMETERS
Type |
Allowable Mating Max. Power(Kw) |
Clear Water Performance |
Impeller |
Capacity/Q m³/hr |
Head/m |
Speed/rpm |
Max Efficiency/% |
NPSH/m |
Nos of Vane |
Impeller Diameter/mm |
10X8E-NP-M |
120 |
540-1228 |
15-61 |
600-1100 |
70 |
4.5-8 |
4 |
549 |
10X8R-NP-M |
300 |
Our Service
1. Quick Reply
Your inquiry related to our products or prices will be
replied within 12 hours.
2.Pump Choice .
We can help to select the suitable pump
3.Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything during the whole process.
4.Guarantee quality.
All the products have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery.
5.Perfect after -sales .
We will be responsible for the whole life period
6.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy.
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
