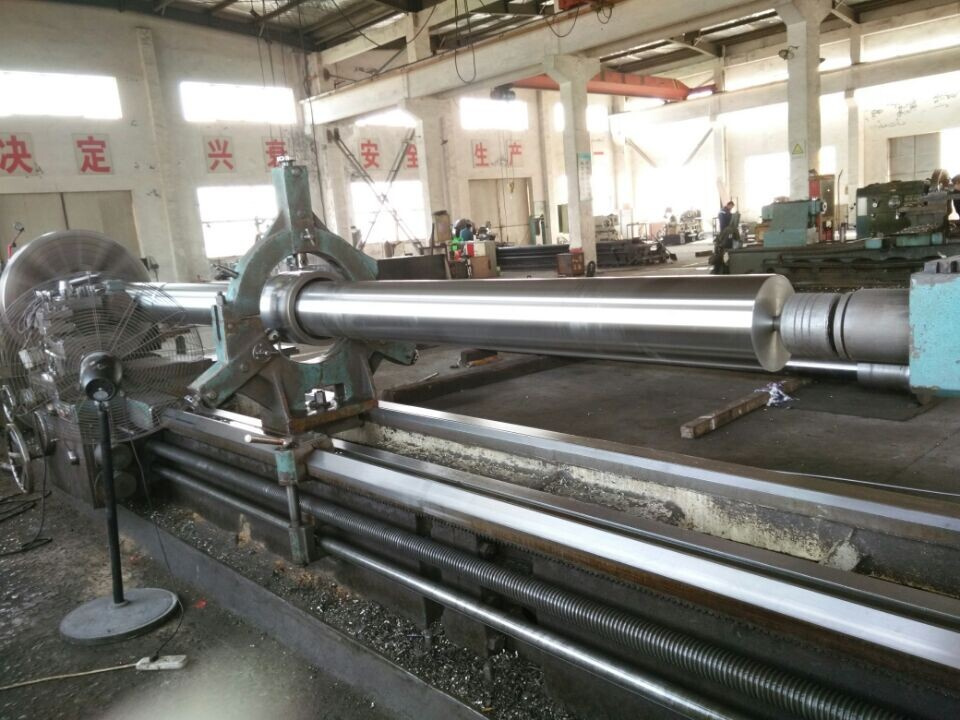

Marine Stainless Steel Tail Shaft/ Propeller Shaft
Specifications of the stern shaft or propeller shaft:
Material: 35# forged steel,SUS316,SUS304
Processing methods: Forged and lathe machining
Dimensions: Designed according to the vessel.
. Packaging Methord:
1. Wooden Cases;
2. Iron Frame box;
Packages will be suitable for the long distance ocean transportation.
| #35 Forged Steel (ASTM1035 or JIS S35C DIN C35) Chemical Component(%) |
| C | Si | Mn | Mo | Cr | S | P | Ni | Cu | Other |
|
| 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | / | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 |
|
|
|
| SUS 304 Chemical Component(%) |
| C | Si | Mn | P | S | Cr | Ni |
|
| ≤0.07 | ≤1.00 | ≤2.00 | ≤0.35 | ≤0.30 | 17.00-19.00 | 8.00-11.00 |
| Mechanical Properties |
| Tensile Test | Hardness Test |
|
| Ob(MPa) | Os(MPa) | 05(%) | HB | HRB | HV |
| ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
|
| SUS 316 Chemical Component(%) |
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | N | Other |
| ≤0.07 | ≤1.00 | ≤2.00 | ≤0.35 | ≤0.30 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | / | / | / |
| Mechanical Properties |
| Tensile Test | Hardness Test |
|
| Ob(MPa) | Os(MPa) | 05(%) | HB | HRB | HV |
| ≥520 | ≥205 | ≥40 | ≤187 | ≤90 | ≤200 |
We are a professional manufacturer producing shaff, we have good machines and experienced worker and technicians.
If you are satisfied with our products, please feel free to contact me .
Jingjiang trust trading Co., Ltd. Was established in 2008, we' Re specializing in manufacturing & exporting marine equipment, construction material, ship models and heating treatment fixtures. With professional mechanical engineers and sales staff mastered in international trade, we' Ve been devoting ourselves to introducing Chinese best products to worldwide customers. Our advantages are good price, excellent quality, fast delivery & good service.
Our main scope of business:
Marine:
*Propeller & shaft system
* lifeboat, davit, life raft, life jacket, life buoy,
* anchor, chain, crane, winch, windlass, bollard, fairlead, rope, fender
* marine door, window, ladder, valve, pump & other fittings
* Marine hardwares, blocks, riggings, wire ropes and slings
* fishing tackles (nets, compass, light, cage)
* Water hydrophore, fresh water maker, sewage treatment plant
Construction material: Galvanized steel planks
Heating treatment fixtures
We can also supply complicated equipment according to buyer' S drawing.
We warmly welcome our customer' S comments and advice. In the future, we will work closely with our factories to improve ourselves in quality and service so as to serve our customers better.
