-Outter disc dia. From 250mm to 350mm;
-Cutting head is able to adjust to left or right for bevel cutting grooving cut
Features:

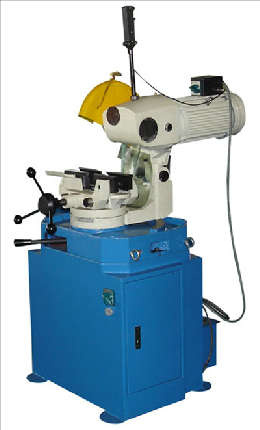

- This series of metallic circular saw machine can be divided into: Hand moving type, air clamping type, semi-automatic type.
-Adopt two sides and two direction clamp which make workpiece stable.
-The precision is higher than band saw and bow saw with low noise and low pollution. The section is free of burrs and powder without secondary processing.
-The machine head can be adjust to the left and right for beveled cutting and grooving cut.
-Circulation cooling system and super large capability of oil tank insure the life-span of saw blade.
-Adopt of pole changing motor and convenient speed adjustment can meet the requirement of different metallic material cutting.
|
Host computer motor |
KM-275H |
KM-315H |
KM-350H |
|
Main motor power(kw) |
1.8/1.3kw |
2.4/1.8kw |
3.0/2.2kw |
|
Rotate speed of Main Shaft(rpm) |
RPM96/48 |
RPM84/42 |
RPM36/18 |
|
Outer diameter of Saw Blade |
250/275mm |
275/300/315mm |
300/315/350mm |
|
Bore OD of Saw Blade(mm) |
¢32mm |
¢32mm |
¢32mm |
|
Pin hole of Suitable Saw Blade |
2x¢11xPCD63 |
2x¢11xPCD63 |
2x¢11xPCD63 |
|
Maximum Cutting Round Pipe |
¢80mm |
¢95mm |
¢115mm |
|
Maximum Cutting Square Pipe |
75x75mm |
85x85mm |
100x100mm |
|
Maximum Cutting Round Rod |
¢30mm |
¢35mm |
¢38mm |
|
Cooling Water Pump |
90w |
90w |
90w |
|
Compressed Air |
0.6Mpa |
0.6Mpa |
0.6Mpa |
|
Volume of machine |
1400x1080x1800 |
1400x1080x1850 |
1400x1080x1900 |
|
Net Weight of machine |
220kg |
240kg |
300kg |
