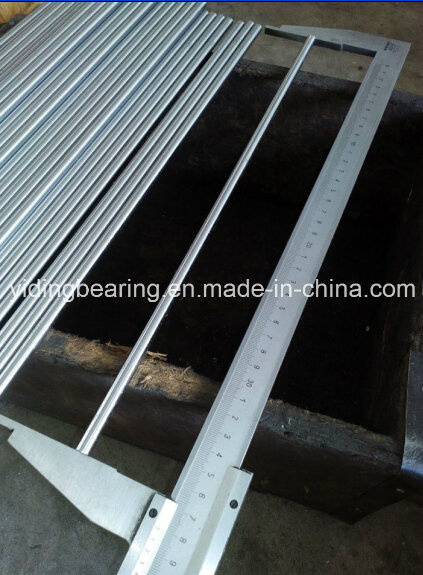

Low price Linear bearing shaft with size 3mm for CNC machine
Quick Details
Structure: Flexible
Material: Steel, bearing steel
Coatings: Chrome
Length: As your request
Model Number: SFC3-SFC80
Color: Silver
Hardness(HRC): 58-62
Surface hardening thickness: 0.8-2.5mm
Specifications
Cnc linear shaft
1 high precision high quality
2 high rustproof
3 chrome plated
4 used with high precision linear bearing
Packaging & Delivery
Packaging Detail: 1 Standard export packing 2 according to the customers'request
Delivery Detail: Depend on your quantity or as your request
MODEL NO. |
OUTER DIAMETER |
DIAMETER TOLERANCE |
LENGTH |
DEPTH OF EFFECTIVE HARDENED LAYER |
WEIGHT(kg/m) |
g6 |
h6 |
SFC3 |
3 |
-0.004
-0.012 |
0
-0.008 |
100-2000 |
>0.8 |
0.18 |
SFC4 |
4 |
0.18 |
SFC5 |
5 |
0.19 |
SFC6 |
6 |
0.22 |
SFC8 |
8 |
-0.005
-0.014 |
0
-0.009 |
100-2000 |
0.40 |
SFC10 |
10 |
-0.005
-0.014 |
0
-0.009 |
100-2000 |
>1.0 |
0.62 |
SFC12 |
12 |
-0.006
-0.017 |
0
-0.011 |
100-3000 |
0.89 |
SFC13 |
13 |
100-3500 |
1.04 |
SFC16 |
16 |
100-4000 |
>1.5 |
1.58 |
SFC20 |
20 |
-0.007
-0.020 |
0
-0.013 |
100-6000 |
2.47 |
SFC25 |
25 |
3.85 |
SFC30 |
30 |
>2.0 |
5.55 |
SFC35 |
35 |
-0.009
-0.025 |
0
-0.016 |
7.55 |
SFC40 |
40 |
>2.5 |
9.87 |
SFC50 |
50 |
15.4 |
SFC60 |
60 |
-0.010
-0.028 |
22.2 |
SFC80 |
80 |
39.5 |
Type LM-UU: This is the metric dimension series with seal used most frequently in Korea and Japan.
Type LME-UU: This is the metric dimension series with seal used most frequently in Europe.
Type LMB-UU: This is the inch dimension series with seal used most frequently in UK&USA
LM linear bearing: LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8S, LM10UU, LM12UU, LM13UU, LM16UU, LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM50UU, LM60UU, LM80UU, LM100UU
LME linear bearing:
LME3UU, LME4UU, LME5UU, LME6UU, LME8UU, LME8S, LME10UU, LME12UU, LME13UU, LME16UU, LME20UU, LME25UU, LME30UU, LME35UU, LME40UU, LME50UU, LME60UU, LME80UU, LME100UU
LMB linear bearing:
LMB4UU, LMB6UU, LMB8UU, LMB10UU, LMB12UU, LMB16UU, LMB24UU, LMB32UU
LM Open Series linear bearing: LM10OPUU, LM12OPUU, LM13OPUU, LM16OPUU, LM20OPUU, LM25OPUU, LM3OOPU, LM35OPUU, LM40OPUU, LM50OPUU, LM60OPUU, LM80OPUU, LM100OPUU
KH type linear bearing:
KH0622PP, KH0824PP, KH1026PP, KH1228PP, KH1630PP, KH2030PP, KH2540PP, KH3050PP, KH4060PP, KH5070PP
Stell Cage Linear Bearing: LM8GA, LM10GA, LM12GA, LM16GA, LM20GA, LM25GA, LM30GA, LM35GA, LM40GA, LM50GA, LM60GA
SDM series Steel cage linear bearing(As same as Ease SDM series): SDM16, SDM20, SDM25, SDM30, SDM35, SDM40, SDM50, SDM60, SDM80, SDM100, SDM120, SDM150
Flange Type Linear Bearing:
LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU, LMF100UU
LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU
LMT6UU, LMT8UU, LMT10UU, LMT12UU, LMT13UU, LMT16UU, LMT20UU, LMT25UU, LMT30UU.
Linear Slide Unit:
1. Close Type:
SC8UU, SC10UU, SC12UU, SC13UU, SC16UU, SC20UU, SC25UU, SC30UU, SC35UU, SC40UU, SC50UU, SC60UU (normal type)
SC8WUU, SC10WUU, SC12WUU, SC13WUU, SC16WUU, SC20WUU, SC252UU, SC30WUU, SC35WUU, SC40WUU, SC50WUU (long type) SC8VUU, SC10VUU, SC12VUU, SC13VUU, SC16VUU, SC20VUU, SC25VUU, SC30VUU, SC35VUU, SC40VUU, SC50VUU(Short type)
2. Open Type: SBR10UU, SBR12UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR50UU(Normal type) SBR10LUU, SBR12LUU, SBR13LUU, SBR16LUU, SBR20LUU, SBR25LUU, SBR30LUU, SBR35LUU, SBR40LUU, SBR50LUU(Long type) TBR16UU, TBR20UU, TBR25UU, TBR30UU (This type with the flange at the pillow block)
Shaft Support: SK/SHF SHAFT SUPPORT: SK8, SK10, SK12, SK13, SK16, SK20, SK25, SK30, SK35, SK40, SK50, SK60 SHF8, SHF10, SHF12, SHF13, SHF16, SHF20, SHF25, SHF30, SHF35, SHF40, SHF50,
