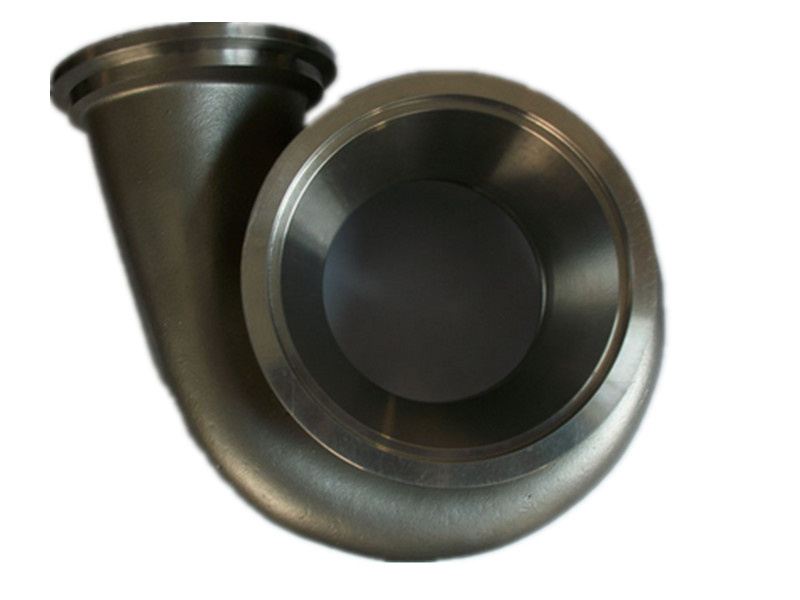

Product Introduction:
1. Material: Stainless Steel, Carbon Steel, Alloy Steel, like: SS304, SS316, 42CrMo4, 1Cr18Ni9Ti...
2. Process: Lost Wax Casting, Investment Casting by sodium silicate or silica sol and CNC machine...
3. Size: as per drawing or sample from 0.01 kg-100kgs unit weight.
4. Surface: Zinc-Plated, Hot Dip Galvanized, Polish, Painting, Lightly Oiled...
5. Non-Destructive Test: Ultronsic Test, Magnetic Particle Testing, X-Ray Testing
6. Package: In pallet or as your requirement
7.Surface finish process:blacking/polishing/anodize/chrome/plating/zinc plating/nickel plating, tinting,etc.
8. Tolerance: CT7-CT9
9 .Surface roughness: Ra0.8-1.6
10. Main equipment used: CNC machine, milling machine, machining center,drilling machine, cutting machine, grinding machine, tipping machine,etc.
11.Standard: IS, ASTM, DIN, BS, etc.
12.Casting process:Model making→Core making→Mold assembling→Pouring→Cleaning→Shot blasting→Machining
13.Inspection:We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
| PROCESS |
MATERIAL |
STANDARD |
SAND CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon Steel, Aluminium, Brass, Bronze |
AISI
ASTM
DIN
GB
BS
JIS
NF
AAR |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT CASTING |
Sodium Silicone
(Water Glass) |
Stainless Steel, Carbon Steel, Special Alloy Steel, Bronze, Brass, Aluminium |
Silica Sol |
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Steel, Brass, Aluminium |
Die Forging |
Roll Forging |
STAMPING MACHINING |
|
All Metal Material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
