Lgz-1500+255/15y Type Aluminum Rod Continuous Casting and Rolling Line

Lgz-1500+255/15y Type Aluminum Rod Continuous Casting and Rolling Line
Price: US $ 170600/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

LGZ-1500+255/15Y type aluminum rod continuous casting and rolling line
Feature:
,,,,.,.,,,,,;,;,,,.
  The fourth generation aluminum rod continuous casting and rolling line optimized the equipment hardware, so that make sure the line runs long term and stably, reduces the running cost, has the advantages of economic, environmental protection and low carbon, and the produced rod has the best quality. The crystallizing wheel of the fourth generation casting machine adopts new material to strengthen the structure, which improves the life span of crystallizing wheel. Adopt horizontal casting to make the molten aluminum enter the crystallizing cavity stably, will not bring sinuous flow and turbulence, will prevent oxide film on the molten aluminum surface between the launder and middle ladle from being damaged, will lessen the re-inhale and re-oxidation of molten aluminum, so that improve the quality of aluminum rod. The fourth generation aluminum rod continuous casting and rolling line possesses the advantages of both aluminum alloy rod rolling machine and common aluminum rod rolling machine, improves the strengthen and the life span of easy-damaged parts; new type coiler adopts conic rolling wheel water drum type coiler system, needs not butter, which is economy, environmental protection and without pollution, also can be used to varnished wire and extruded tube directly.
1    application
,,9.5mm,12mm,15mm.
The line is designed to produce aluminum rod by means of continuous casting and rolling, the material is pure aluminum ingot or electrolytic molten aluminum, and the produced rod diameters are9.5mm,12mm and 15mm.
2, composition
2.1:LGZ-1500+255/15Y
    Equipment name: LGZ-1500+255/15Y type aluminum rod continuous casting and rolling line.
2.2.:,,15Y,(),,,.(:,,,.)

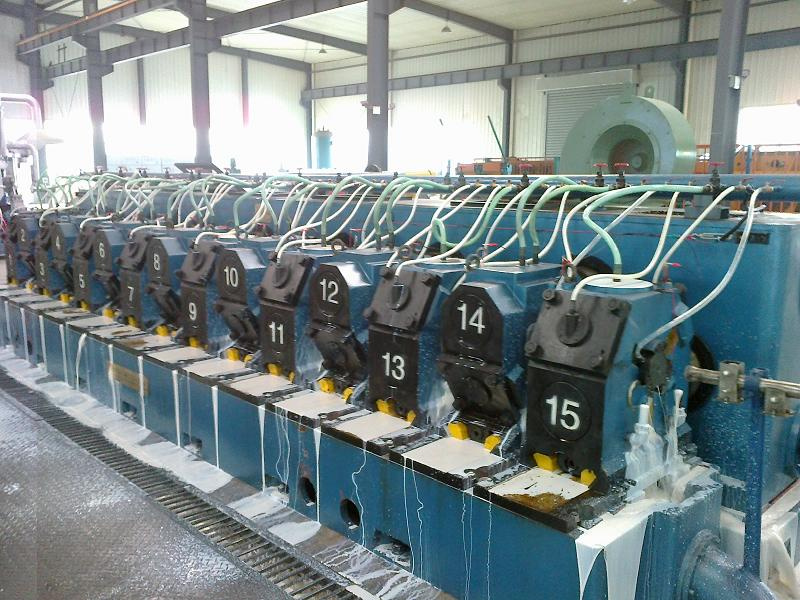

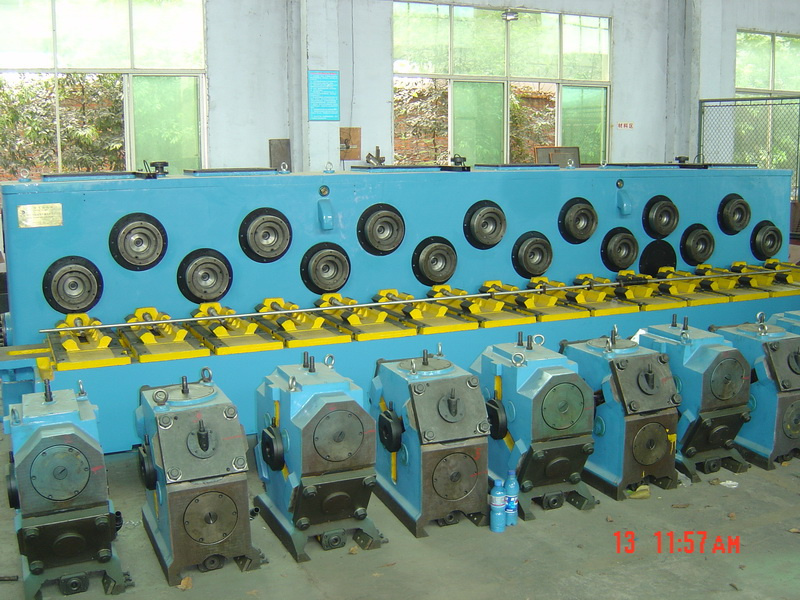

   Main component: one set of two-wheel type casting machine, one set of rotating arm balance slinging type hydraulic shearer, one set of Y type continuous rolling mill with 15 rolling stands, one set of conic rolling wheel water drum type coiler (rod guiding device without oil), one set of emulsion circulating device, one set of lubricant circulating device, one set of electric control system. (Remark: aluminum melting furnace, holding furnace and launder should be ordered separately.)
3     Brief Technological process:
3.1,.
  Aluminum ingot→ molten aluminum→ molten aluminum refining→ sampling→ holding device→ filting→ casting→ cooling casting blank→ front blank shearing→ enter the rolling→ rolling → rod guiding without oil→ continuous rod winding→ dual-basket coiler→ bundle→ finished aluminum rod measuring→ check up→ warehousing.
3.2,,,2450mm2M.,,,.
   The melting aluminum or the molten aluminum, through the holding furnace and the launder get into wheel belt type continuous casting machine, continuous cast into 2450mm2 section M type aluminum ingot. Cut the useless ingot using hydraulic shearer, and then feed into the rolling machine and outlet rod, collect the rods in coil with dual baskets through guiding the rod without butter and winding the rod continuously.
4,  main technical parameter
4.1,:                                      9.5±0.2 mm,12mm,15mm
   Produced aluminum rod dia.                              9.5±0.2 mm,12mm,15mm
4.2,:                                           2.7-5.0 t/h
   Production capacity                                     2.7-5.0 t/h
4.3,:                           40×7.8×5.1 m()
   Main equipment dimension             40×7.8×5.1m (excludes furnace and cooling circulating system)
4.4,:                                       65 t
   Total weight of main equipment                              65t
4.5,:                                               350kw
   Total power                                              350kw
Prod Model: LGZ-1500+255/15Y type
Markets: Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lgz-1500+255/15y Type: Aluminium Rod Continuous Casting and Rolling
Precision: Precision
Certification: ISO
Demoulding: Automatic
Heating System: Electric
Function: Lubrication
Mould Life: >1,000,000 shots
Automatic Grade: Automatic
Condition: New
Customized: Customized
Warranty: 12 Months
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
