Introduction& Application:

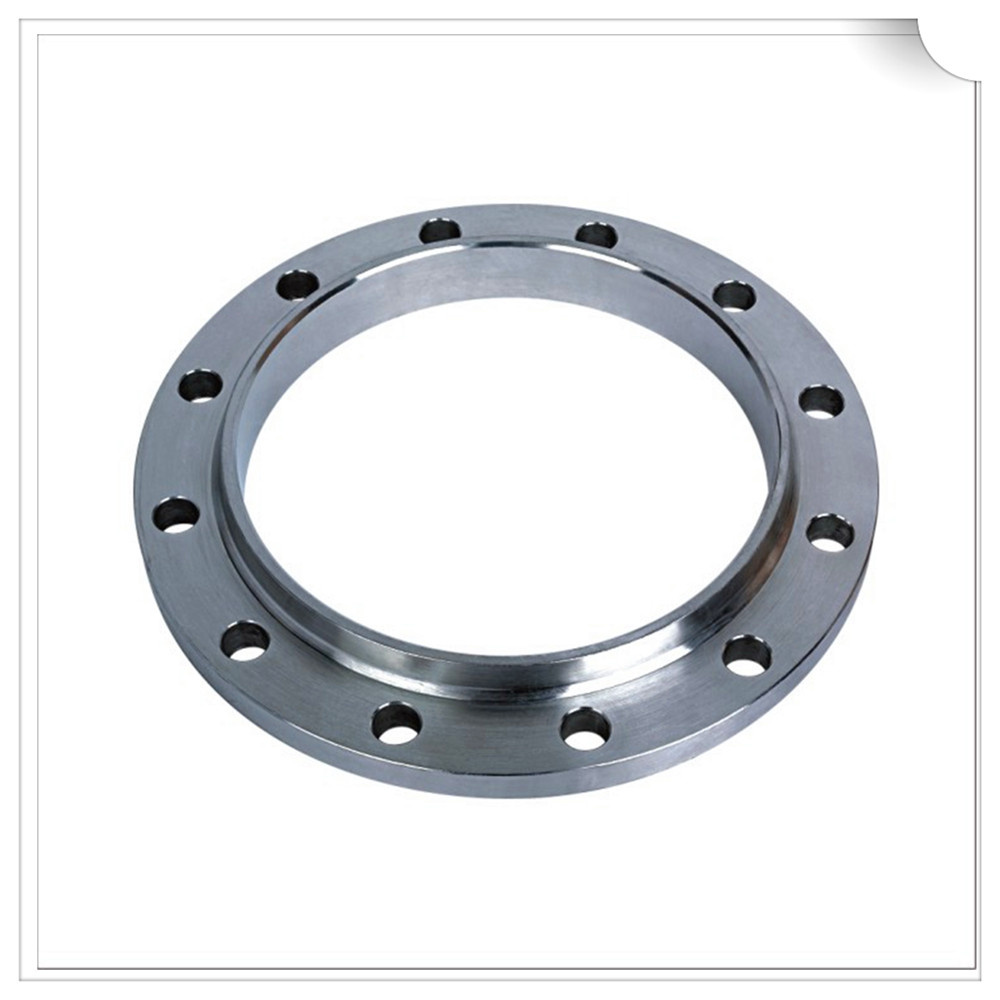

Casting flange is a kind of common flange technology, which has the advantages of high production efficiency, low production cost, suitable for middle and low pressure pipe. The sealing surface of casting flange can be divided into flat face (FF), raised face (RF), male and female (MFM), tongue and groove face (TG), ring joint face (RJ).
Spicification:
The following is some basic description of the product, the detailed parameter is according to different standards. We can also manufacture special application flanges according to customer's require.
| PN | PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160 |
| Standard | ANSI B16.5 \ ASME B16.47 \ DIN \ JIS \ BS3293 \ BS4504 \BS10 |
| Size | 1/2"-160" |
| Material | Carbon Steel | ASTM A105,20#,Q235,16Mn, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2,ASTM A694 F42, F46,F48, F50, F52, F56, F60, F65, F70 |
| Alloy Steel | ASTM A182 F1, F5a, F9, F11, F12, F22, F91,A182F12,A182F11,16MnR,Cr5Mo,12Cr1MoV,15CrMo,12Cr2Mo1,A335P22 |
| Stainless Steel | ASTM A182 F304,304L, F316,316L,1Cr18Ni9Ti,0Cr18Ni9Ti,321,18-8 |
| Surface Treatment | Hot dip galvanized, Electric galvanizing, spray paint, Anti-rust oil coated |
| Sealing Surface Form | flat face (FF), raised face (RF), male and female (MFM), tongue and groove face (TG), ring joint face (RJ). |
| Inspection | Factory in-house or third party inspection available upon request. |
| Deliver Time | 45 days after the prepayment. |
| Application field | Petrochemical Industry,Electric Power Industry,Coal mine industry,Machinery industry,Water & Heating System,Machinery,Offshore Platform |
Other nonstandard flanges also can be manufactured according to customer's special require or drawings.
We have the following types of flanges:slip-on, Threaded, welding neck, socket welding, blind, lap-joint.
Xushui Ying'ao Valve & Pipe Fitting manufacturing Co., Ltd was established in 2001, which was specialized in manufacturing flanges and other pipe fittings for more than 15 years. The main products are low carbon steel, alloy steel and variety of other material flanges with ANSI B16.5 standard, DIN standard, BS standard, JIS B2220, JIS B2210, GOST standard and GB standard. With good quality and credit, our products have been exported to many countries and regions such as Japan, South Korea, Canada, Southeast Asia, South America, Western Europe etc.
The company has very perfect investment casting production equipment machining equipment and physical and chemical analysis equipment, which can meet the customers' full requirement for product quality and physical & chemical properties in different levels. Meanwhile, the company also continues to introduce and expand the world's advanced technology, and a large number of professional & technical personnel, advanced technology and production equipment. The technical force and economic strength of the company is becoming increasingly strong.
The company will be adhering to "customer first and to exceed customer's expectations", be in credibility and pragmatic. Friends from all over the world with credit and honesty will be sincerely welcomed to visit us and cooperate with us.
