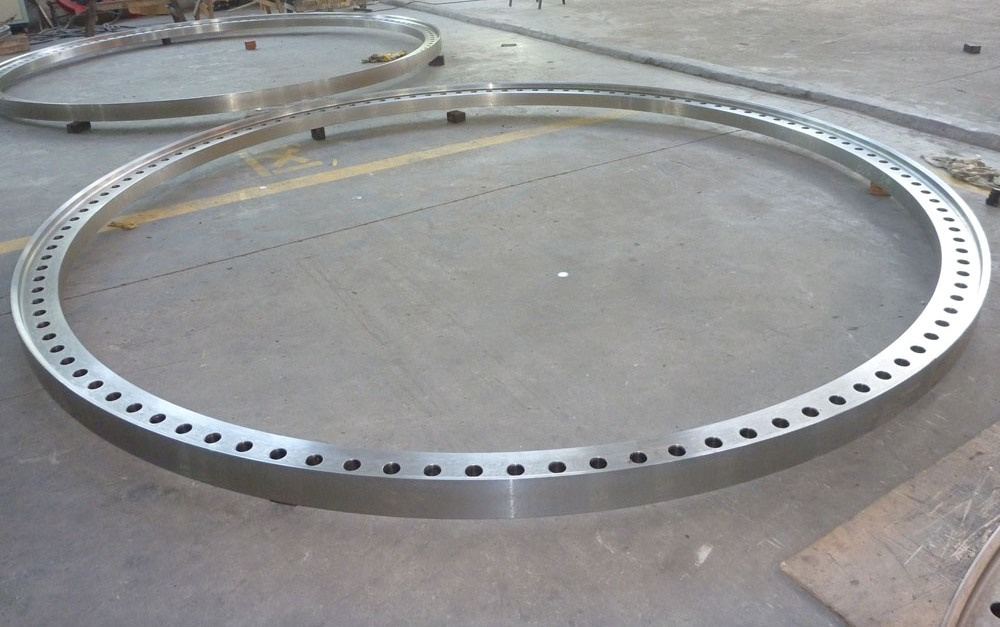

Large Dia ASTM A105 Forged Flange Forgings

Large Dia ASTM A105 Forged Flange Forgings
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Company Introduction
Expert Maker of Various Metal Products
Sunnyhome Metal Products is located in Wuxi City. We mainly focus on manufacturing and supplying qualified metal products such as flanges, rings, forged parts (including shafts, cylinder heads, bending blocks, wheels and couplings) and pipe fittings for the field of oil and gas. We also offer parts in 1/2 to 160 inches, with weights from 150 to 5, 000lbs and made of carbon, stainless and alloy steel.

Meeting ANSI, ASME, API, MSS, AWWA DIN, JIS, GOST, BSW, GB and Other Standards
All our products are manufactured according to ANSI, ASME, API, MSS, AWWA DIN, JIS, GOST, BSW, GB and Other Standards. We can also design and manufacture special types of rings, flanges and other forged items according to the drawings that you provide and special requirements you propose.

Exporting to over 20 Countries and Regions
With our own professional technical teams, advanced quality inspection equipment, and perfect management systems, we export our goods to more than 20 countries and regions, like Japan, South Korea, Southeast Asia and Europe. We look forward to receiving your inquiry. Call now.

Flange:
1>. Flange:
2>. Oilfield and Natural Gas Flange
3>. Weld neck flange(WN)
4>. Blind Flange (BL)
5>. Lap Joint Flange (LJ)
6>. Slip On Flange(SO)
7>. Socket Welding Flange (SW)
8>. Thread Flange (TH)
9>. Carbon Steel Flange
10>. Stainless Steel Flange
11>. Alloy Steel Flange
12>Blind flange

Raw material:
1>. Carbon steel flange: ASTM A105, ASTM A350 LF2, ASTM A694 F42-F52-F60-F65- F70, C22.8, C21, Rst37.2, S235JRG2, P355NH, SS400
2>. Stainless steel flange: ASTM A 182 F304-304L-304H, ASTM A182 F321-321H, ASTM A182 F347-347H, ASTM A182 F316-316L-316H
3>. Alloy steel flange: ASTM A182 F1--F5- F9-F11, F12, F22, F51, 16Mo3, 1Cr5Mo, 15CrMo, 42CrMo, 12Cr1MoV, TStE355
4>. Duplex Stainless Steel: ASTM A182 F44, F45, F51, F53, F55, F60, F61
5>. Nickel Alloy: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
6>. Claded materials: ASTM B898, B263, B264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1.

Connect Face: RF, FF, M, FM, RJ, TG

Size: OD100mm-4000mm

Pressure: 150Lb-5000Lb

Standard: ANSI, ASME, API, MSS, AWWA DIN, JIS, GOST, BSW, GB and Other Standards

Delivery status: Forging+Heat Treatment+UT( according to practical situation and customers' clear requirements)
We have professional UT center and mechanical property testing cente

QA & DOC: Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report Heat Treatment Report, Dimensions Check Report

Packing: Plywood Case, Wooden Case or Wooden Pallet

Forging:
1>. Forging
2>. Forged parts
3>. Shaft forging
4>. Forged parts
5>. Gear forging
6>. Ring forging
7>. Forged Hollow Bar
8>. Forged Block
9>. Forged round bar
10>. Special shape forging part
11>. Forged pipe
12>. Forged valves part

Raw material:

15CrMo, 42CrMo, 1Cr5Mo, 16Mo3, 12Cr1MoV, 4130, 4140, 4317, 4142, 4340, UNS440, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo530CrMo, 9Cr2W, 9Cr2Mo, 9Cr3Mo, 60CrMoV, CK45, 5CrMnMo, 40Cr, 20Cr2Ni4, 5CrNiMo, 15CrNiMo, 20CrNiMo, 35CrMo, 40CrNiMo

Products Type: Maximum Diameter(mm) / Max. Length(mm) / Maximum weight(ton)
Shaft/Round Bar 2000 / 5000 / 20
Ring/Flange/Gear 4000 / 1000 / 10
Block 2000 / 5000 / 20
Unusual shapes 2000 / 1000 / 10

Standard: According to drawings

Delivery status: Forging+Heat Treatment+UT
We have professional UT center and mechanical property testing center.

Packing: Wooden Case or Wooden Pallet

QA & DOC: Product Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report, Dimensions Check Report
Prod Model: Flange Forgings
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Od100mm-4000mm
Pressure: 150lb-5000lb
Carbon Steel Flange 1: ASTM A105,ASTM A350 Lf2,A694 F42-F52-F60-F65-F70
Carbon Steel Flange 2: C22.8,C21,Rst37.2,S235jrg2,P355nh,Ss400
Stainless Steel Flange: ASTM A182 F304-304L-304h, F321-321H,F316-316L-316h
Alloy Steel Flange 1: 1cr5mo,15CrMo,42CrMo,12cr1MOV,Tste355
Alloy Steel Flange 2: ASTM A182 F1--F5- F9-F11 ,F12,F22,F51,16mo3
Duplex Stainless Steel: ASTM A182 F44, F45, F51, F53, F55, F60, F61
Nickel Alloy 1: Uns 2200,Uns 4400,Uns 8825 Inconel,Uns 6600
Nickel Alloy 2: Uns 6601,Uns 6625,Uns 10276,Uns 2201
Material: Carbon Steel
Type: Welding Flange
Standard: Asme, API, Mss, Awwaand Other Standards
Manufacturing Way: Forging
Expert Maker of Various Metal Products

Sunnyhome Metal Products is located in Wuxi City. We mainly focus on manufacturing and supplying qualified metal products such as flanges, rings, forged parts (including shafts, cylinder heads, bending blocks, wheels and couplings) and pipe fittings for the field of oil and gas. We also offer parts in 1/2 to 160 inches, with weights from 150 to 5, 000lbs and made of carbon, stainless and alloy steel.

Meeting ANSI, ASME, API, MSS, AWWA DIN, JIS, GOST, BSW, GB and Other Standards

All our products are manufactured according to ANSI, ASME, API, MSS, AWWA DIN, JIS, GOST, BSW, GB and Other Standards. We can also design and manufacture special types of rings, flanges and other forged items according to the drawings that you provide and special requirements you propose.

Exporting to over 20 Countries and Regions

With our own professional technical teams, advanced quality inspection equipment, and perfect management systems, we export our goods to more than 20 countries and regions, like Japan, South Korea, Southeast Asia and Europe. We look forward to receiving your inquiry. Call now.
