| Price: | US $ 23.6/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 300/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
INTRODUCTION
CPM series are single stage centrifugal pumps, suitable both domestic and industrial applications to convey clean liquids and non-aggerssive chemical fluids.
WORKING CONDITIONS
Max Temperature of Fluid to +80 degree
Max Pressure 10 bar
Max Ambient Temperature up to 40 degree
Construction:
Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum / Brass
Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
With thermal overload protector in single phase motor

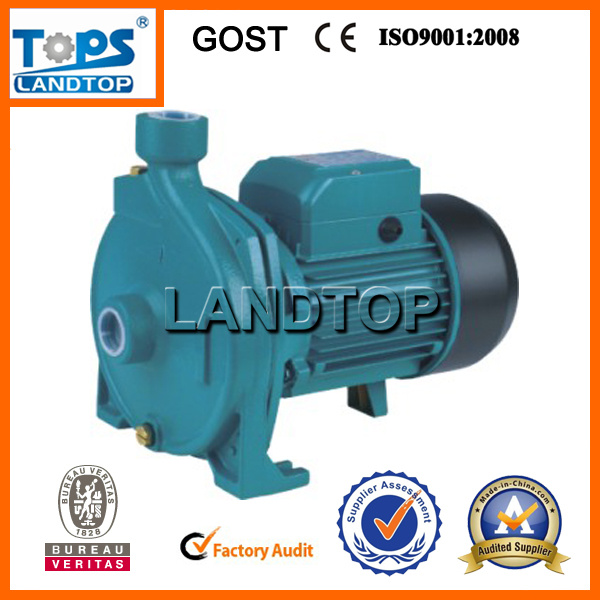

Photo show:
FAQ:
Q: Do you offer OEM service? A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C. DP and OA payment is also acceptable.
Q: What is your lead time? A: About 30 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do:
Stamping of lamination
Rotor die-casting
Winding and inserting both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting both wet paint and powder coating
Assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
| TYPE | Power | Ampere | R.P.M | Q.Max (l/min) | H.Max (m) | S.Head (m) | Pipe Dia | ||
| HP | KW | 1-220V | 3-380V | ||||||
| CPM-130 | 0.5 | 0.37 | 3 | - | 2850 | 90 | 19 | 9 | 1"X1" |
| CPM-146 | 0.75 | 0.55 | 3.6 | - | 2850 | 110 | 22 | 9 | 1"X1" |
| CPM-158 | 1 | 0.75 | 5 | - | 2850 | 115 | 30 | 9 | 1"X1" |
| CPM-180 | 1.5 | 1.1 | 7.5 | 2.7 | 2850 | 120 | 35 | 9 | 1"X1" |
| CPM-200 | 2 | 1.5 | 13.5 | 13.5 | 2850 | 125 | 40 | 9 | 1"X1" |
| Prod Model: | CPM-130/CPM-146/CPM-158/CPM-180/CPM-200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Body: | Cast Iron/Stainless Steel/Brass |
| Wire: | Copper / Aluminum |
| Impller: | Brass / Aluminum / Plastic |
| Motor: | Aluminum Motor Housing |
| Insulation Class: | B(Class F If Required) |
| Protection Class: | IP44 / IP55 |
| Duty: | Continuously Rated |
| Front / Back Cover: | Cast Iron |
| Fan Cover: | Iron |
| Shaft: | Ss420/CS45#/SKF/NSK/NTN/C&U |
| Power: | Electric |
| Structure: | Single-stage Pump |
| Theory: | Vortex Pump |
| Application: | Clarified Water Pump |
| Material: | Cast Iron |
| Type: | Centrifugal Pump |
