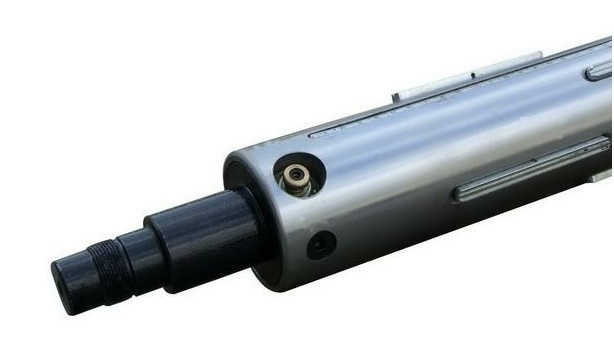

The air shaft introducing foreign advanced production equipment and fabrication technology, using imported balloon, the shaft is casting by aluminum alloy, shaft body plating chromium, accurate assembly, convenient to use and long operate life.when using, match with our company's professional configuration of the average gun filling gas for the nozzle jet, to make the shaft of off-axle apperance uniform expansion, thereby lock nitrogen-treated barrel, when unloading, press on deflated mouth to deflated, then nitrogen-treated barrel can be unloaded.
Performance and advantages: air shaft in practical applications, it has advantages of convenient operation, quick, without damage rolls etc.
Product usage: It is widely used in printing, cutting, coating, compounding and other machineries's releasing and winding scroll.
|
Winding drum core standard |
Unearated axis external diameter |
Inflated bulging blockdiameter |
|
1.5 " |
Ø 36mm |
Ø 40 - Ø 42mm |
|
2 " |
Ø 49mm |
Ø 53 - Ø 55mm |
|
3 " |
Ø 74mm |
Ø 79 – Ø 82mm |
|
4 " |
Ø 100mm |
Ø 104 – Ø 106mm |
|
4.5 " |
Ø 120mm |
Ø 124 – Ø 126mm |
|
6 " |
Ø 150mm |
Ø 155 – Ø 158mm |
|
8 " |
Ø 200mm |
Ø 205 – Ø 208mm |
Ruian Xincheng Zhongtai Packaging Machinery Factory. We are engaged in manufacturing slitting and rewinding machine, inspecting machine, sealing machine, and flexo printing machine etc. Our machine have been exported to South America, South-east Asian, Africa, Middle East ans so on, which without any exception, have been given good accomplishment by our customers and cusumers.
Our factory is authorized CE certification and also ISO9001 Certification. We have been also authorized to advanced enterprise and so on.
