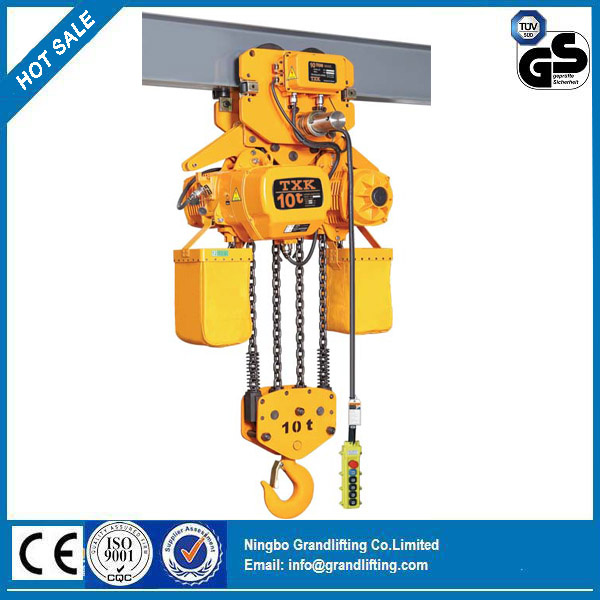

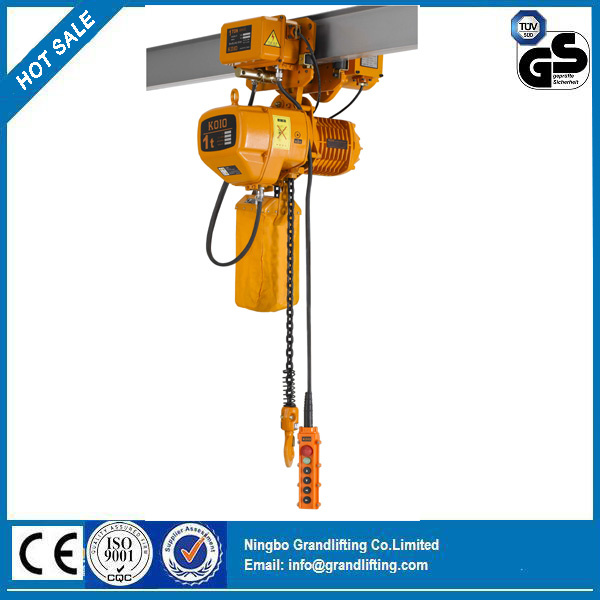

K Type Electric Chain Hoist with Trolley

Name: K Type Electric Chain Hoist with Trolley
Brand: china-castingforging.com
SKU: 766238045
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 305.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Ningbo Grandlifting Co., Ltd.

Showroom Product Company Profile

Details of Electric Chain Hoists:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Advatages: Solid and light
Fast release heat
Continuous use
Enclosed structure
Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2M
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.

Item No.	Capacity(ton)	Lifting Height(m)	Lifting Speed (m/min)	Lifting motor					Operating motor						I-Beam (mm)
Item No.	Capacity(ton)	Lifting Height(m)	Lifting Speed (m/min)	Power(Kw)	Rotation speed (r/min)	Phases	Voltage(V)	Frequency(Hz/s)	Power(Kw)	Rotation speed (m/min)	Operating speed (m/min)	Phases	Voltage(V)	Frequency(Hz/s)	I-Beam (mm)
ZHEH-K-0.3T-T	0.3	3/9	7.1	0.6	1440	3	220-440	50/60	0.12	1440	12.2	3	220-440	50/60	58-153
ZHEH-K-0.5T-T	0.5	3/9	6.8	0.9	1440	3	220-440	50/60	0.12	1440	12.2	3	220-440	50/60	58-153
ZHEH-K-1T-T	1	3/9	6.9/2.3	1.8/0.6	2830/930	3	220-440	50/60	0.4	1440	11/21	3	220-440	50/60	58-153
ZHEH-K-1.5T-T	1.5	3/9	8.9/2.9	3.0/1.0	2830/930	3	220-440	50/60	0.4	1440	11/21	3	220-440	50/60	82-178
ZHEH-K-2T-ST	2	3/9	6.8/2.3	3.0/1.0	2830/930	3	220-440	50/60	0.4	1440	11/21	3	220-440	50/60	82-178
ZHEH-K-2T-DT	2	3/9	3.3/1.1	1.8/0.6	2830/930	3	220-440	50/60	0.4	1440	11/21	3	220-440	50/60	82-178
ZHEH-K-3T-ST	3	3/9	5.4/1.8	3.0/1.0	2830/930	3	220-440	50/60	0.75	1440	11/21	3	220-440	50/60	100-178
ZHEH-K-3T-DT	3	3/9	4.5/1.5	3.0/1.0	2830/930	3	220-440	50/60	0.75	1440	11/21	3	220-440	50/60	100-178
ZHEH-K-5T-T	5	3/9	2.7/0.9	3.0/1.0	2830/930	3	220-440	50/60	0.75	1440	11/21	3	220-440	50/60	100-178
ZHEH-K-7.5T-T	7.5	3/9	1.8/0.6	3.0/1.0	2830/930	3	220-440	50/60	0.75	1440	11/21	3	220-440	50/60	100-178
ZHEH-K-10T-T	10	3/9	2.7/0.9	3.0X2/1.0X2	2830/930	3	220-440	50/60	0.75	1440	11/21	3	220-440	50/60	150-220
ZHEH-K-15T-T	15	3/9	1.8/0.6	3.0X2/1.0X2	2830/930	3	220-440	50/60	0.75x2	1440	11/21	3	220-440	50/60	150-220
ZHEH-K-20T-T	20	3/9	1.3/0.4	3.0X2/1.0X2	2830/930	3	220-440	50/60	0.75x2	1440	11/21	3	220-440	50/60	150-220

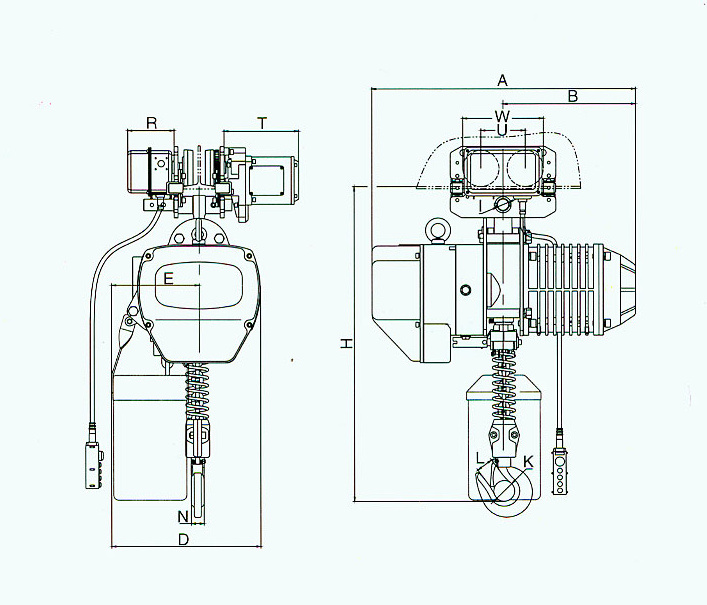

Item No.	Capacity(ton)	Dimension(mm)
Item No.	Capacity(ton)	H	A	B	D	E	I	K	L	N	W	U	P	J	R	T	Chain
ZHEH-K-0.3T-T	0.3	658	415	168	290	195	/	φ34	28	19	/	/	191	19	159	142	φ6.1
ZHEH-K-0.5T-T	0.5	658	415	168	290	195	/	φ34	28	19	/	/	191	19	159	142	φ6.3
ZHEH-K-1T-T	1	650	520	260	300	176	φ31	φ42	32	24	206	111	/	/	142	231	φ7.1
ZHEH-K-1.5T-T	1.5	770	615	295	430	265	φ36	φ49	40	30	237	127	/	/	142	231	φ10.0
ZHEH-K-2T-ST	2	770	615	295	430	265	φ36	φ49	40	30	237	127	/	/	142	231	φ10.0
ZHEH-K-2T-DT	2	815	520	260	300	236	φ36	φ49	40	30	237	127	/	/	142	231	φ7.1
ZHEH-K-3T-ST	3	830	615	295	430	265	φ43	φ59	48	35	265	140	/	/	142	231	φ11.2
ZHEH-K-3T-DT	3	930	615	295	430	320	φ43	φ59	48	35	265	140	/	/	142	231	φ10.0
ZHEH-K-5T-T	5	1015	615	295	430	325	φ54	φ60	48	43	296	156	/	/	142	231	φ11.2
ZHEH-K-7.5T-T	7.5	1200	615	295	505	320	φ54	φ85	80	55	295	156	/	/	142	231	φ11.2
ZHEH-K-10T-T	10	1190	630	315	505	890	φ70	φ85	80	55	366	191	/	/	142	231	φ11.2
ZHEH-K-15T-T	15	1310	630	315	1070	535	φ54	φ120	96	78	/	/	926	/	142	231	φ11.2
ZHEH-K-20T-T	20	1470	630	315	1260	630	φ70	φ150	115	95	/	/	1106	/	142	231	φ11.2

Prod Model:	K type Electric Chain Hoist With Trolley
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hand Chain:	G80
Capacity:	0.3t-20t
Application:	Small Crane
Power Source:	Electric
Sling Type:	Chain
Certification:	ISO9001:2000
Maximum Lifting Height:	Depends
Color:	Customized

Grandlifting is a professional manufacturer and exporter of lifting & lashing equipment, alloy chain and fittings, material handling equipment, etc.

Our company is certified by ISO9001: 2008, whilst most of our products are CE, TUV & GS certified. Our main products are: Ratchet tie down, webbing sling, chain hoist, lever block, push trolley, crance scale, hand winch, snatch block, grade 80 chain and fittings, rigging hardware, jack, wire rope, etc.

Our products are widely used in metallurgy, electric power, shipyard, sea port, oil-field, railway, machinery, auto, energy, aerospace, etc.

With rich experience of many years in exporting lifting products to more than 50 countries in Europe, America, Australia, Middle East, Southeast Asia, Africa, etc., we have now won a quite good reputation on lifting field from our customers all over the world for high quality, good service as well as extremely competitive prices.

We sincerely welcome enquires from all our new customers to establish long-term friendly business relationship with us!
