Jetst Series Self-Priming Jet Pumps (JETST-60)

Jetst Series Self-Priming Jet Pumps (JETST-60)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P

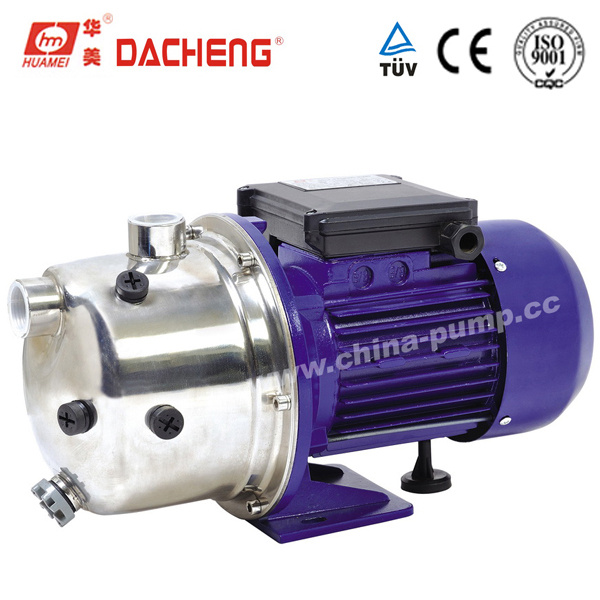

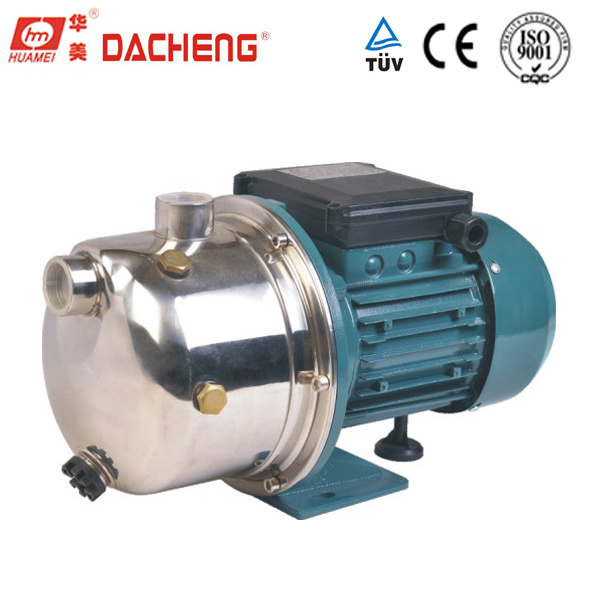

JETST Series Stianless-steel Self-priming Jet Pump

Consist of a single impeller,centrifugal pump and a jet pipe with a nozzle.
Stainless-steel pump body and P.P.O diffuser

Extremely high efficiency and excellent suction ability.
Suitable for water supplying in domestc installations,small-scale agriculture,home drinking water and garden irrigation.


FEATURES

a.14 years of manufacturing water pump
b.All of our products are with CE approved and testing reports concerning EMC and LVD.
1. Models: JETST-60-80-100
2. Stator: 100% pure wire coil( copper or aluminum as you require)
3. Rotor: Enough sillicone steel sheet with high durability
4. Shaft: Rust resistance with 45# steel or stainles steel
5. Compact size and Simple operation
6. Heavy duty continuous work.
7. High-efficient and Low noise

OUR ADVANTAGE

1. Matured channels for purchasing high quality raw material
2. Advanced equipments to manufacture and process the pump parts
3. Rigorious check for pump castings, stators before any piece of product leave the factory
4. Multiple and Perfect assembling lines
5. Export-standard packing skill

CONSTRUCT

Pump

Pump body: Stainless Steel
Impeller: Brass/Techno-polymer(P.P.O)/ Stainless Steel
Mechanical seal: Carbon/ceramic/Stainless Steel
Diffuser:
Techno-polymer(P.P.O)

Motor

Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
Insulation class: B and F
Protection class: IP44 or IP54
Power: 220-240V 50Hz( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)

OPERATING CONDITION

Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty

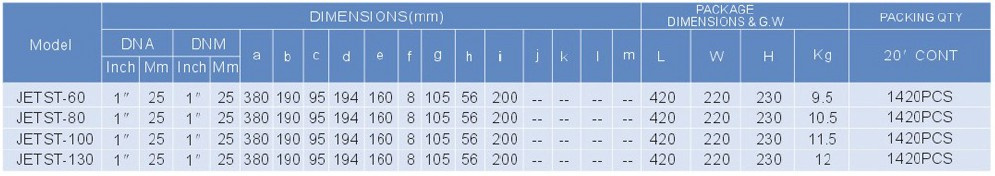

TECHNICAL DATA(220-240V/50Hz)




Prod Model: JETST-60
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pump Body: Stainless Steel
Impeller: Stainless Steel/Brass/Techno-Polymer(P.P.O)
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Diffuser: Techno-Polymer(P.P.O)
Working Fluid: Water
Fujian Dacheng Electric Group Co., Ltd. is located in Fuan city, Fujian province. Which founded in 1999, have 330 staffs.

Having 8 highly developed automatic assembling lines, experienced and professional engineering team, our monthly capacity of pump is 80, 000 PCS, motor and generator 10, 000PCS. We are a professional manufacturer dedicated to design and manufacture best quality, reliability micro-pump, motors and generators, to exceed the expectation from customers. Company pay attention to product quality, research and development, own provincial technical center.

Passing ISO9001: 2008 quality management system certification, our products obtained certificates from CE, SGS, RoHS, BV etc., also won 13 national patent, Y, YC, ST, STC series products have been gained quality license of export products. Exporting to Europe, South America, Middle East, Southeast Asia more than 30 countries and regions.
