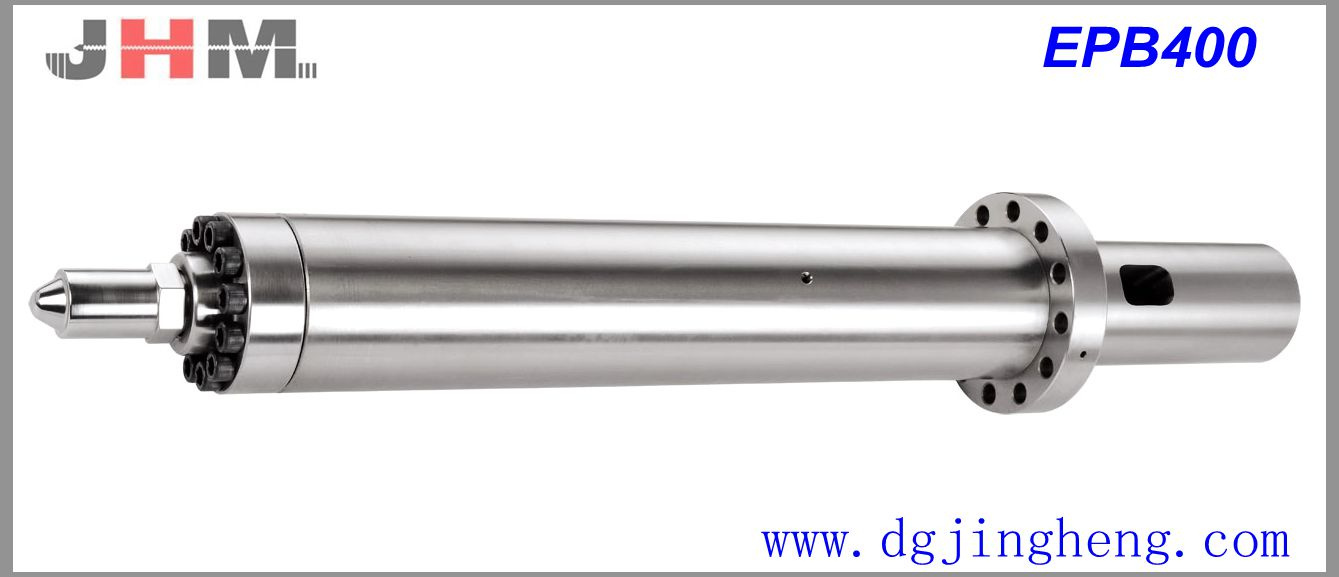

Basic infoName: Cobalt-based alloy barrel Brand name
:JHM screw
Model name:Injection machine, extruder machine, etc.
Material: Ni+Cr+W+B
Application conditions:Fit for application below 50% GF, good anti-wear and corrosion
Range of work: Dia.:14D-180D/ length: 10-3000mm
Processing technic : Use American Stellite cobalt based alloy centrifugal casting
Material source : Germany, Japan
Hardness: HRC55
°-60
°Product type: Material type series
→ Cobalt-based alloy barrel

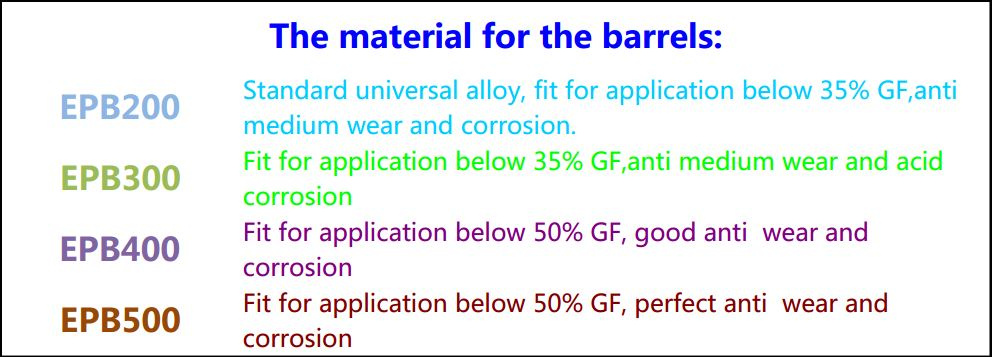

Performance Parameters
Series |
Type |
Hardness |
Main ingredient |
Feature | 400ºC
Thermal expansion |
Applications |
| EPB | EPB200 | HRC55ºC-58ºC | Ni+Cr+B+Cu | Wear resistance | 12.0 *10^-6 | Fiberglass materials, halogen-free materials, iron powder |
| EPB300 | HRC54ºC-58ºC | Ni+Cr+W+B | Corrosion resistance | 12.0 *10^-6 |
| EPB400 | HRC55ºC-60ºC | Ni+CO+Cr+W+B | Wear and corrosion reststance | 12.0 *10^-6 |
| EPB500 | HRC58ºC-64ºC | Ni+Cr+Wc+Co+B | High wear and corrosion resistance | 12.0 *10^-6 |
