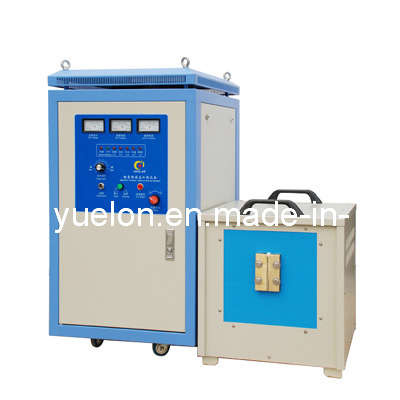

Induction Heating Machine 30kw

Induction Heating Machine 30kw
Price: Negotiable/Set
Trade Terms: FOB,CIF,others
Min Order: 1/Set
Pay Type: L/C,T/T
SF-30AB

Main specifications:
Maximum output power: 30KW
Frequency: 10-40KHz
Maximum input current: 48A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: 0.1Mpa 27L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:

Model Net weight(KG) Size: L x W x H (mm) Packing weight Pacing size: L x W x H (mm)
SF-40AB generator 61KG 510x380x810mm 142KG 610x800x990mm
SF-40AB transformer 31KG 320x320x330mm

Main characteristics:
1. IGBT inversion technology based LC series circuit.
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: Converts up to 97.5% above of the expended energy into useful heat. Energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can subsititue traditional heating methods.

Application:

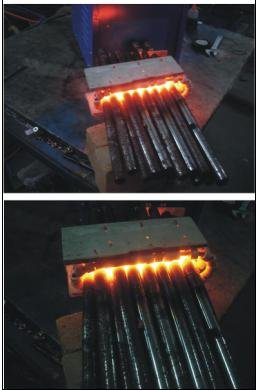

Rod forging
Bolt, nut forging
Heat treatment of shaft, gear, pin, etc.
Shrink-fitting
Annealing of pipe welding


Model Max output power Frequency Max input current Working voltage Input
voltage
Duty cycle Water flow Generator weight Transformer weight Generator size
SF-30AB 30KW 10-40KHZ 48A 342-430V




3phase 380V50/60HZ
100% 27L/(min)





(0.1Mpa)
61KG 31KG
SF-40AB 40KW 10-40KHZ 80A 342-430V 32L/(min) 73KG 37KG
SF-50AB 50KW 10-40KHZ 90A 342-430V 32L/(min) 75KG 41KG
SF-60AB 60KW 10-40KHZ 110A 342-430V 40L/(min) 80KG 46KG
SF-80AB 80KW 10-40KHZ 160A 342-430V 50L/(min) 106KG 68KG
SF-100AB 100KW 10-40KHZ 200A 342-430V 50L/(min) 121KG 91KG
SF-120AB 120KW 10-40KHZ 240A 342-430V 68L/(min) 138KG 95KG
SF-160AB 160KW 8-30KHZ 280A 342-430V 68L/(min) 151KG 121KG
SF-200AB 200KW 8-30KHZ 320A 342-430V 80L/(min) 172KG 125KG
SF-250AB 250KW 8-30KHZ 380A 342-430V 80L/(min) 180KG 131KG
SF-300AB 300KW 8-30KHZ 460A 342-430V 100L/(min) 185KG 136KG
SF-350AB 350KW 8-30KHZ 540A 342-430V 100L/(min) 192KG 141KG
Prod Model: SF-30AB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method: Mold Forging
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.

Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.

Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)

Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
