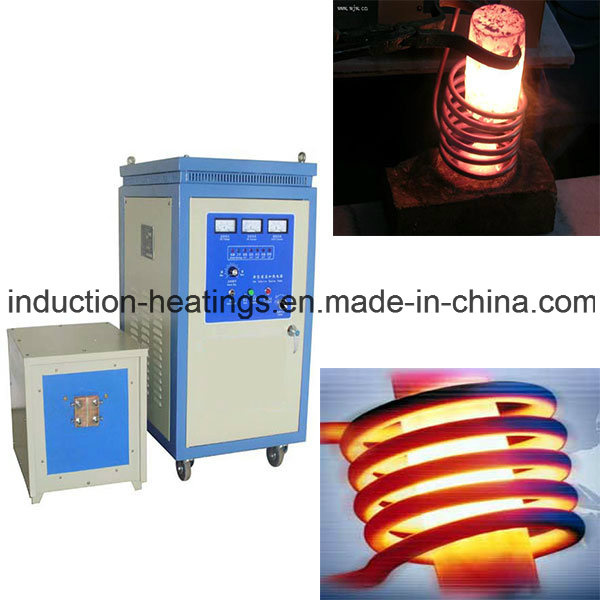

Induction Forging Equipment Forging Steel Iron WH-VI-60KW
Application of Induction Forging Equipment:
1. Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
Tecnical Parameter of Induction Forging Equipment:
Model | WH-VI-60 | Work power | Three phrase 380v/50-60hz |
Working voltage range(AC) | 342v-430v | Max input current | 90A |
Max out power | 60kw | Oscillation frequency | 10-40Khz |
Efficiency | 100% | Continuous load rate | 100% |
Cooling water flow(host) | 25L/min(0.1mpa) | Cooling water flow(transformer) | 18L/min(0.1mpa) |
Cooling water pressure | 0.1-0.3mpa | Host weight | 65kg±5% |
Transformer weight | 50kg±5% | Size of host(mm) | 590x450x780 |
Size of transformer(mm) | 420x355x450 | Temperature protection | 50ºC |
Color of host | Blue/white | Color of transformer | Blue/white |
Our service:
1. Reply your inquiry in 24 working time
2. Exerienced staffs answer all your questions in fluent English
3. Customized design is available
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
5. Special discount and protection of scales are provided to our distributor
After-sale service:
1.one year free parts replacement
2.life-long time technology support and installation guide
3.only charge little money for parts replacement when warranty expired
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
