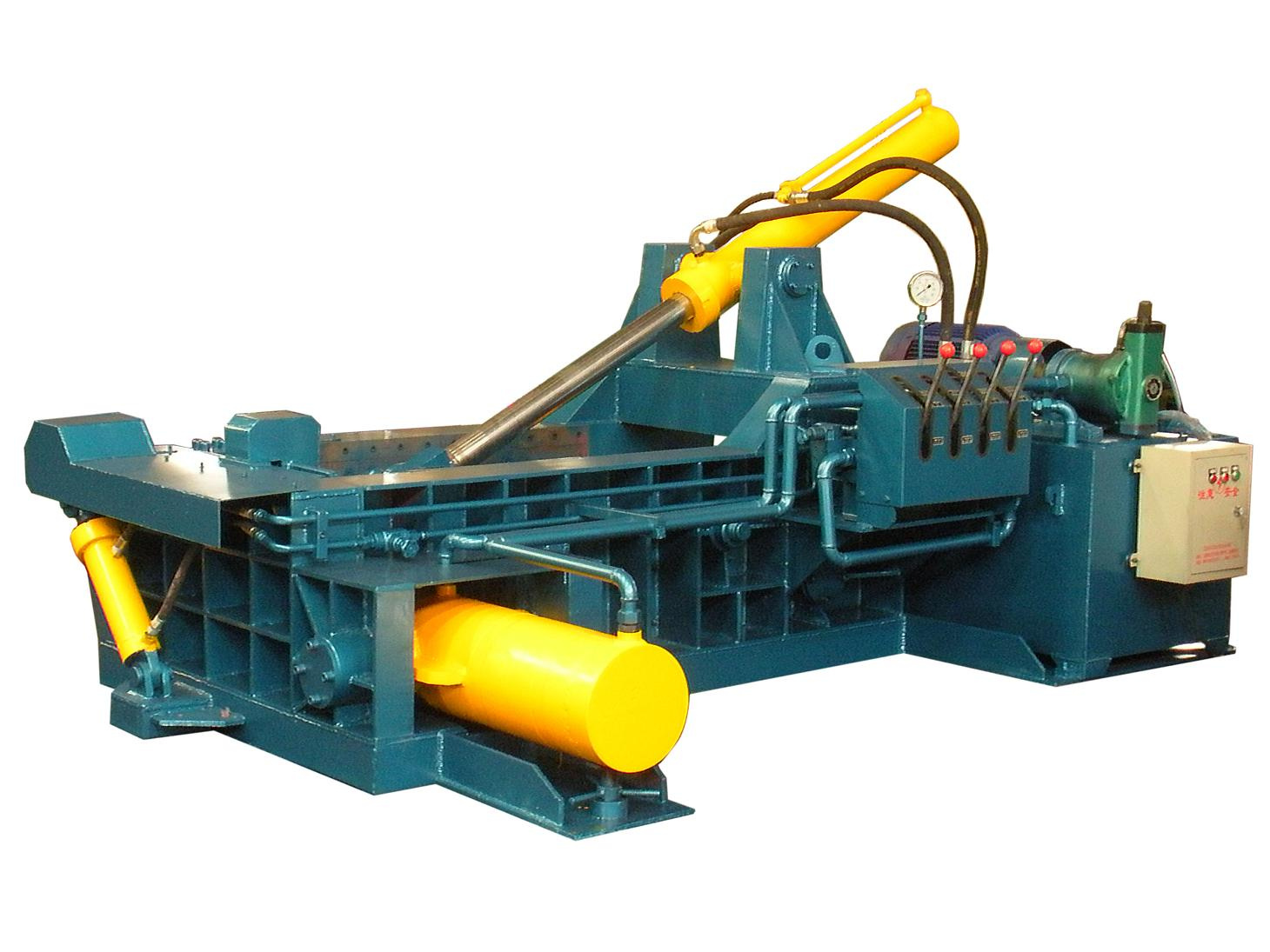

Hydraulic Waste Metal Baler (YD1300B)

Hydraulic Waste Metal Baler  (YD1300B)
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: T/T
Hydraulic metal baler
1. Press scrap thickness under 3mm
2. Turn over bale, fast speed
3. Manual operation

1. Brief introduction:

This machine cold compresses material thickness under 3mm, like materials of dismounted automobile shells, waste bucket, waste copper and aluminum into rectangle lumps. The operation efficiency is high and lump lengths are identical and uniform. The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance.

2. Product characteristics:
1. The longest main cylinder applies quick-action technology and its operation efficiency is one time higher than that of the machines of the same type in China.
2. The machine for export is designed with integration of main machine and ydraulic System. It covers small area and does not need any installation.
3. The package is discharged from side way, The package is compact and nice.

4. Full automatic and with fast device
Model Nominal pressure (ton) Material box size
(mm)
Baler size   (mm) Productivity(kgs/h) Bale discharging mode Motor(KW) Machine weight (ton)
YD-630A 63 1000*600*500 200*200 500-750 Turn over 11 4.5
YD-1000 100 1000*700*500 250*250
220*220
200*200
750-1000 Turn over 11 5.5
YD-1000A 100 1100*500*500 200*200 750-1000 Front bale 11 5
YD-1300B 130 1200*700*550 300*300
250*250
1000-1800 Turn over 15 6
YD-1300C 130 1200*800*550 300*300
250*250
1500-2000 Turn over 15 6.5
YD-1350 135 1400*600*600 600*250 1500-2000 Front bale 18.5 7
YD-1600 160 1200*800*550 300*300 1500-2000 Turn over 18.5 7
YD-1600A 160 1600*800*800 350*350 1750-2250 Turn over 22 12
YD-2000 200 1600*1200*800 350*400 2000-2500 Turn over
side push
30 18
YD-2500 250 2000*1200*1000 450*450 2250-3500 Turn over
Side push
30 20
YD3150 315 2000*1400*1200 450*500 3750-4500 Side push 37 32
YD4000 400 2000*1600*1200 500*500 4500-6250 Side push 45 40
YD-4000A 400 2500*1600*1200 600*500 7500-10000 Side push 45 50
Prod Model: YD1300B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Machine Tool&Accessories
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.

We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.

We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
