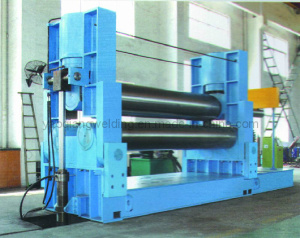

Hydraulic Three Roller Plate Rolling Machine
| Price: |
US $ 10000-50000/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
This metal plate rolling machine is three-roller type.1, The upper one roller is placed in the up middle of the bottom two roller poles, and will carry out the up and down movement. Its movement is hydraulic driven. The hydraulic oil inside the hydraulic cylinder affects the piston and drives the upper roller.2, The two lower roller poles carry out the rotary movement. The export cogwheels of speed reducer gear into lower rollers cogs, and provide torsion for rolling metal material plate.Compact structure. Easy to operate and maintain.| Model | max. plate thickness | max. plate width | rolling speed | full-loading min. rolling diameter | upper roller diameter | lower rollers diameter | main motor power | central distance of two lower rollers |
| mm | mm | m/mm | mm | mm | mm | kw | mm |
| W11Y-16*2000 | 16 | 2000 | 4.5 | 550 | 260 | 220 | 7.5 | 320 |
| W11Y-16*2500 | 16 | 2500 | 4.5 | 600 | 280 | 240 | 11 | 360 |
| W11Y-20*2000 | 20 | 2000 | 4.5 | 600 | 280 | 240 | 11 | 360 |
| W11Y-20*2500 | 20 | 2500 | 4.5 | 700 | 340 | 260 | 15 | 430 |
| W11Y-25*2500 | 25 | 2500 | 4.5 | 750 | 360 | 270 | 18.5 | 480 |
| W11Y-30*2500 | 30 | 2500 | 4.5 | 900 | 400 | 320 | 22 | 550 |
| W11Y-30*3000 | 30 | 3000 | 4.5 | 900 | 430 | 350 | 30 | 600 |
| W11Y-40*2500 | 40 | 2500 | 4.5 | 1000 | 480 | 380 | 37 | 600 |
| W11Y-40*3200 | 40 | 3200 | 4.5 | 1100 | 540 | 440 | 45 | 700 |
| W11Y-50*2500 | 50 | 2500 | 4.5 | 1200 | 560 | 460 | 45 | 700 |
| W11Y-50*3000 | 50 | 3000 | 4.5 | 1200 | 580 | 480 | 55 | 750 |
| W11Y-60*2500 | 60 | 2500 | 4 | 1300 | 600 | 510 | 55 | 750 |
| W11Y-60*3000 | 60 | 3000 | 4 | 1300 | 620 | 530 | 55 | 800 |
| W11Y-70*3000 | 70 | 3000 | 4 | 1400 | 680 | 590 | 75 | 850 |
| W11Y-80*3000 | 80 | 3000 | 4 | 1500 | 750 | 660 | 75 | 900 |
| W11Y-90*3000 | 90 | 3000 | 4 | 1600 | 780 | 680 | 90 | 1000 |
| W11Y-100*3000 | 100 | 3000 | 3.5 | 1700 | 830 | 740 | 90 | 1000 |
| W11Y-110*3000 | 110 | 3000 | 3.5 | 1800 | 880 | 790 | 110 | 1080 |
| W11Y-120*3000 | 120 | 3000 | 3.5 | 2000 | 920 | 830 | 110 | 1160 |
| W11Y-120*4000 | 120 | 4000 | 3.5 | 2000 | 960 | 850 | 132 | 1160 |
| W11Y-150*3000 | 150 | 3000 | 3.5 | 2200 | 1000 | 900 | 150 | 1280 |
| W11Y-160*3000 | 160 | 3000 | 3.5 | 2500 | 1060 | 920 | 150 | 1280 |
| W11Y-180*3000 | 180 | 3000 | 3.5 | 2500 | 1080 | 950 | 180 | 1360 |
| W11Y-200*3000 | 200 | 3000 | 3.5 | 2500 | 1120 | 980 | 220 | 1420
|
| Prod Model: |
W11Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd & Wuxi Lokdias Mechanical Automation Equipment Co., Ltd & Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e. The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing, management and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai. And the Jiangsu Silver Coast International Trade Development Co., Ltd is the export title for those above two companies
The group owns modern office building and also professional manufacturing plant which includes 2 sets of workshops connecting to each other and total 15, 000 square meters.
Holding the idea of humanity first, customer supreme, the group always contributes to optimize modern management and customer service system, thus to enhance Yaoqing Technology as a high-tech enterprise brand, build top creative team to make ourselves being a base of whole set, heavy type welding equipments production.
Rely on technical specialist of welding, cutting, machine assembly, digital control, electronics, electric automation and so on, who has many years experience of engineering equipment design and manufacture, also applying new technology of famous colleagues at home and abroad, through team working, provide customized solutions including production layout, technics analysis, engineering equipments technical service in a short time.
The products we served are diversified and professional, and the business involved are: Ship and bridge, electricity building, metallurgy construction, steel structure beam, caigang structure, construction installation, engineering machinery, vehicle, boiler pressure container, windpower generation, petroleum chemical machinery, coal mine machinery, metallurgy environment protection equipment, ship building heavy type machinery and etc. Our products are wildly required by domestic market as well as foreign markets of south east Asia, Australia and America.
Our company culture is that technology creates value, integrity leads to win-win, Yaoqiang is looking forward to work closely with our customers to build brilliant future.
