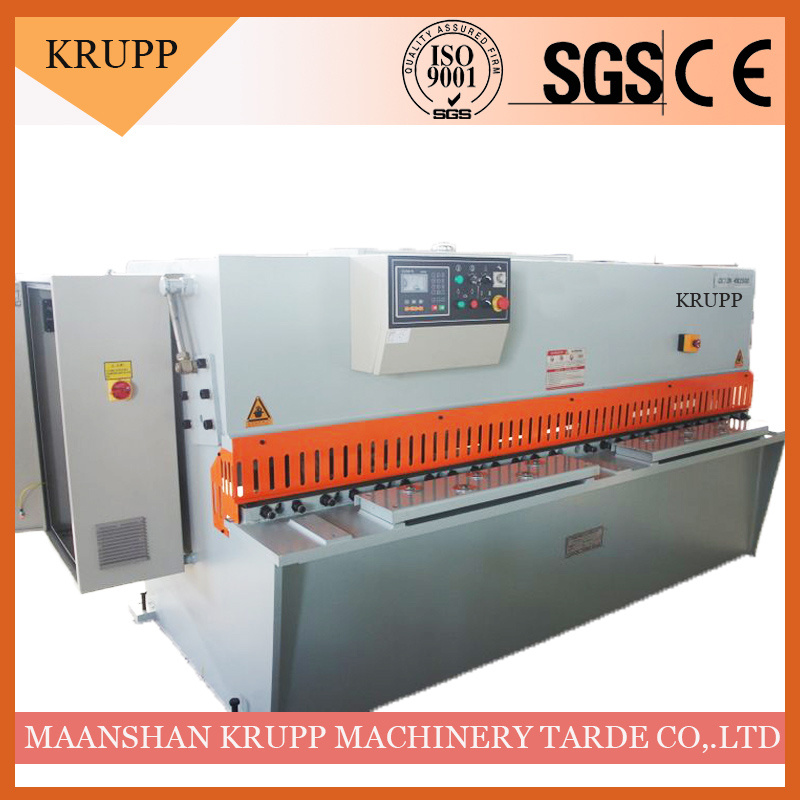

1.The machine employs hydraulically-driven swing beam,the steel plate welded structure,and accumulator-based pullback cylinder with steady and reliable operation.
2.Indicator-based adjustment of gap of blade is convenient and fast.
3.The machine is equipped with lighting alignment device,and uses steeples control for the stroke of up tool carrier.
4.The machine uses protection fence for safe operation.
5.Digital display device for size of back gauge and shearing times available.
Model | Cutting thickness (mm) | Cutting width (mm) | Cutting angle(º) | Travel times (min-1) | Stopper adjust range(mm) | Motor power (Kw) | Dimension (L × W ×H) (mm) |
4×2500 | 4 | 2500 | 1°30` | ≥16 | 20-600 | 4 | 3040×1430×1560 |
4×3200 | 4 | 3200 | 1°30` | ≥12 | 20-600 | 5.5 | 3840×1675×1720 |
4×4000 | 4 | 4000 | 1°30` | ≥10 | 20-600 | 5.5 | 4640×1850×1800 |
6×2500 | 6 | 2500 | 1°30` | ≥16 | 20-600 | 7.5 | 3040×1520×1690 |
6×3200 | 6 | 3200 | 1°30` | ≥12 | 20-600 | 7.5 | 3840×1660×1720 |
6×4000 | 6 | 4000 | 1°30` | ≥10 | 20-600 | 7.5 | 4640×1855×1800 |
6×5000 | 6 | 5000 | 1°30` | ≥8 | 20-600 | 11 | 5786×2200×2160 |
6×6000 | 6 | 6000 | 1°30` | ≥7 | 20-600 | 11 | 6800×2130×2270 |
8×2500 | 8 | 2500 | 1°30` | ≥12 | 20-600 | 11 | 3040×1575×1720 |
8×3200 | 8 | 3200 | 1°30` | ≥10 | 20-600 | 11 | 3840×1675×1750 |
8×4000 | 8 | 4000 | 1°30` | ≥8 | 20-600 | 11 | 4680×1850×1800 |
8×5000 | 8 | 5000 | 1°30` | ≥7 | 20-600 | 15 | 5786×2200×2160 |
8×6000 | 8 | 6000 | 1°30` | ≥5 | 20-600 | 18.5 | 6800×2130×2270 |
10×2500 | 10 | 2500 | 1°30` | ≥10 | 20-600 | 15 | 3200×1960×1800 |
10×3200 | 10 | 3200 | 1°30` | ≥9 | 20-600 | 15 | 3950×1840×1810 |
10×4000 | 10 | 4000 | 1°30` | ≥8 | 20-600 | 15 | 4720×1870×1925 |
12×2500 | 12 | 2500 | 1°30` | ≥10 | 20-800 | 18.5 | 3225×1950×1910 |
12×3200 | 12 | 3200 | 1°30` | ≥9 | 20-800 | 18.5 | 3925×2130×2050 |
12×4000 | 12 | 4000 | 1°30` | ≥8 | 20-800 | 18.5 | 4740×2290×2170 |
16×2500 | 16 | 2500 | 2° | ≥8 | 25-800 | 18.5 | 3240×2182×2040 |
16×3200 | 16 | 3200 | 2° | ≥7 | 25-800 | 22 | 3940×2222×2100 |
16×4000 | 16 | 4000 | 2° | ≥5 | 25-800 | 22 | 4750×2290×2225 |
20×2500 | 20 | 2500 | 2°30` | ≥6 | 30-800 | 37 | 3340×2265×2230 |
20×3200 | 20 | 3200 | 2°30` | ≥5 | 30-800 | 37 | 4050×2400×2330 |
20×4000 | 20 | 4000 | 2°30` | ≥5 | 30-800 | 37 | 4870×2600×2535 |
25×2500 | 25 | 2500 | 3° | ≥5 | 30-800 | 45 | 3400×2430×2335 |
25×3200 | 25 | 3200 | 3° | ≥4 | 30-800 | 45 | 4100×2580×2490 |
25×4000 | 25 | 4000 | 3° | ≥4 | 30-800 | 45 | 4950×2500×2600 |
30×2500 | 30 | 2500 | 3°30` | ≥4 | 30-800 | 45 | 3300×2900×3000 |
30×3200 | 30 | 3200 | 3°30` | ≥4 | 30-800 | 55 | 4200×2500×2600 |
40×2500 | 40 | 2500 | 4° | ≥3 | 30-800 | 55 | 3200×3300×3200 |
40×3200 | 40 | 3200 | 4° | ≥3 | 30-800 | 55 | 4300×3300×3000 |
The above data is just for you reference,if there is any disaccord please refer to actual data
