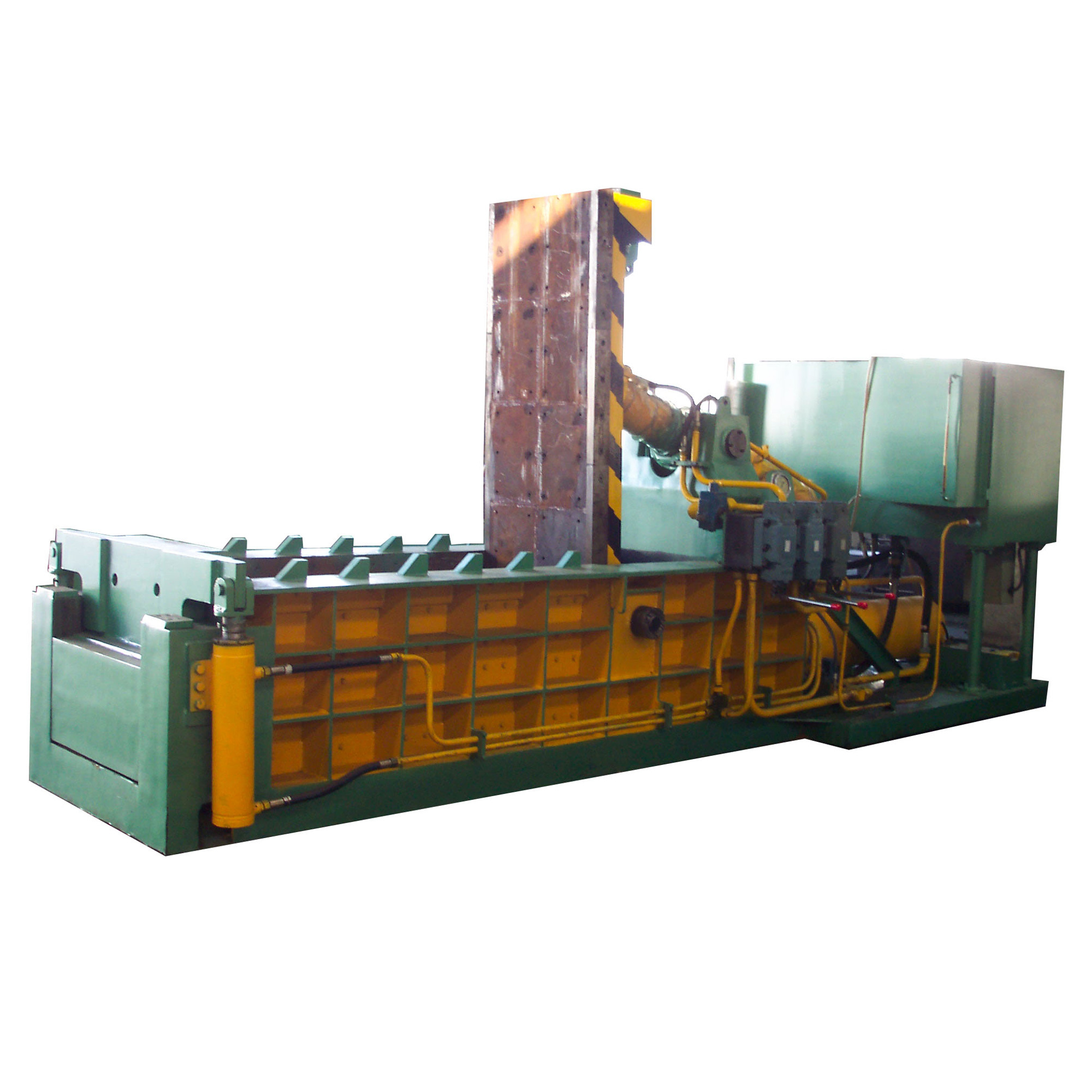

Y81 series of hydraulic baling presses are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc) into acceptable furnace charges in shapes of cuboids, cylinders & octagons.
Features:
1. Hydraulic drive, manual valve operation or PLC control.
2. Bale-discharging: "turn-out", "push-out", "forward-out", & manual discharging.
3. Options for different force, press box size, bale shape & size.
4. Electrical motor, diesel engine or generator for power.
Model Main Cyl. Force Press Box Size Bale Size Bale Weight Capacity Motor
(Ton) (mm) (mm) (kg) (ton/hr) (kW)
Y81F-63 63 1000× 600× 500 190× 190 15-30 0.4-0.8 7.5
YE81F-63 63
Y81F-100 100 1150× 650× 550 200× 200 230× 230 250× 250 20-45 0.5-1.0 11
YE81F-100 100 1000× 600× 500 200× 200 20-30 0.5-0.8
Y81F-125A 125 1100× 700× 550 200× 200 Octagon 140 Octagon 200 15-35 0.4-0.8 15
Y81F-125B 125 1100× 700× 600 230× 230 25-40 0.8-1.0
Y81F-125C 125 1150× 700× 600 250× 250 Octagon 230 Octagon 260 30-50 0.8-1.2
Y81F-125D 125 1200× 700× 600 300× 300 50-70 1.0-1.5
YE81F-125D 125
Y81F-125E 125 1200× 800× 600 300× 300
Y81F-125F 125 1200× 900× 600 300× 300 Octagon 260 1.0-1.8 15 / 22
YE81F-125G 125 1400× 700× 700 300× 300 60-90 1.5-2.0 22
Y81F-125H 125 1400× 800× 700 300× 300 Octagon 300
Y81F-125J 125 1400× 900× 600 Octagon 260 Octagon 300
Y81-150Y 150 900× 550× 500 φ 135× 500 20 0.4-0.5 18.5
YE81-150Y 150
Y81Q-160Y 2× 125 800× 800× 500 φ (125-140)× 500 22
Y81-200WY 125 800× 600× 450 φ 125× 420
Model Main Cyl. Force Press Box Size Bale Size Bale Weight Capacity Motor
(Ton) (mm) (mm) (kg) (ton/hr) (kW)
Y81T-63 63 1100× 600× 500 200× 200 15-30 0.4-0.8 11
YE81T-63A 63 1000× 600× 500
YE81T-63B 63 1200× 600× 550
Y81T-100 100 1200× 600× 600 240× 240 25-40 0.8-1.0 15
YE81T-100A 100 1000× 600× 500 200× 200 20-30 0.5-0.8
YE81T-100B 100 1200× 600× 600 230× 230 25-40 0.8-1.0
YE81T-100C 100 1300× 600× 600 300× 300 40-50 1.0-1.2
Y81T-125A 125 1200× 700× 600 240× 240 18.5
YE81T-125A 125
Y81T-125B 125 1400× 700× 700 300× 300 60-90 1.5-2.0 22
YE81T-125B 125 18.5 / 22
YE81T-125D 125 1400× 1000× 700 70-100 1.5-2.5 45
YE81Q-80 80 1100× 550× 550 550× 240 35-45 0.8-1.0 11
Y81Q-80C 80 1800× 1000× 700 1000× 260 40-90 0.8-1.8 15
Y81Q-135B 135 1300× 600× 600 600× 240 50-75 1.5-2.0 22
YE81Q-135B 135
YE81Q-135D 135 1300× 600× 800 600× 400
Y81Q-160 160 1600× 950× 700 950× 300 90-130 2.0-2.8 2× 18.5
Y81Q-200 200 1400× 700× 600 700× 280 70-100 1.8-2.5
YE81Q-200 200 700× 300 45
YR81Q-200 180/200 1800× 750× 700 750× 350 100-150 2.2-3.0 37
