Hydraulic Ironworker, Hydraulic Combined Punching and Shearing Machine, Hydraulic Ironworker
| Price: |
US $ 5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Features of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine
1, Baide Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine adopt shydraulic driving system.
2, Baide Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machines are the latest iron workers in China.
3, Various metal plate, square bar, round bar, angle, channel and joist can be cut, punched and notched on the Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine.
4, Baide hydrualic ironworker is also equipped with a stop device for cutting.
Function of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine
1. Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
3. Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending
Can also bend the plate below 500mm.
Other detail of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine
1) Robust and accurate steel frame
2) Large punch table with scales
3) Removable bolster for punching flanges and channel and beam
4) 2 independent hydraulic cylinders
5) 2 shielded foot controls
6) 2 Separate Die Openings for oversized punching
7) 5 working stations for wide applications
8) Power inching on all 5 work stations
9) Plate shear support/table and notching table
10) Adjustable stroke controls with indicators on both cylinders
11) Movable work light as standard
12) Overload protection on hydraulic system
13) Electric backgauge
14) Optional bending attachment
15) Optional 5 sets punches and dies
Model
Q35Y-16
Q35Y-20
Q35Y-25
Q35Y-30
Punching Pressure (Ton)
55
75
110
140
Shear thickness (mm)
16
20
25
30
Material Strength(Kn/mm 2 )
≤450
≤450
≤450
≤450
Notching Angle
7°
8°
8°
8°
Shear Size of One Stroke (Thickness*Width)(mm)
16*250
8*400
20*330
10*480
25*330
16*600
30*355
20*600
Slide Stroke
80
80
80
80
Stroke Times(time/min)
8
8
6
6
Throat Deepth (mm)
300
355
400
600
Punch Thickness (mm)
16
20
25
26
Punch Diameter (mm)
25
30
35
38
Motor (kw)
4
5.5
7.5
11
Dimension (L*W*H) (mm)
1640*730*1770
1860*800*1900
2355*960*2090
2680*1040*2300
Weight (kg)
1700
2300
5000
7200
H,Channel,Angle need special oder.
shape
round
square
angel with same side
T beam
H
I beam
90°shear
45°shear
90°shear
45°shear
Section
Q35Y-16
45
40*40
125*125*12
50*50*5
120*120*12
60*60*8
126*74*5
126*53*5.5
Q35Y-20
50
50*50
140*140*12
50*50*5
140*140*12
70*70*10
160*86*6
160*60*6.5
Q35Y-25
60
50*50
160*160*14
50*50*5
160*160*14
80*80*10
200*102*9
210*75*9
Q35Y-30
65
55*55
180*180*16
60*60*6
180*180*16
80*80*10
280*124*10.5
280*86*11.5
Q35Y-35
70
60*60
200*200*18
60*60*6
200*200*18
80*80*10
300*130*13
300*89*11.5

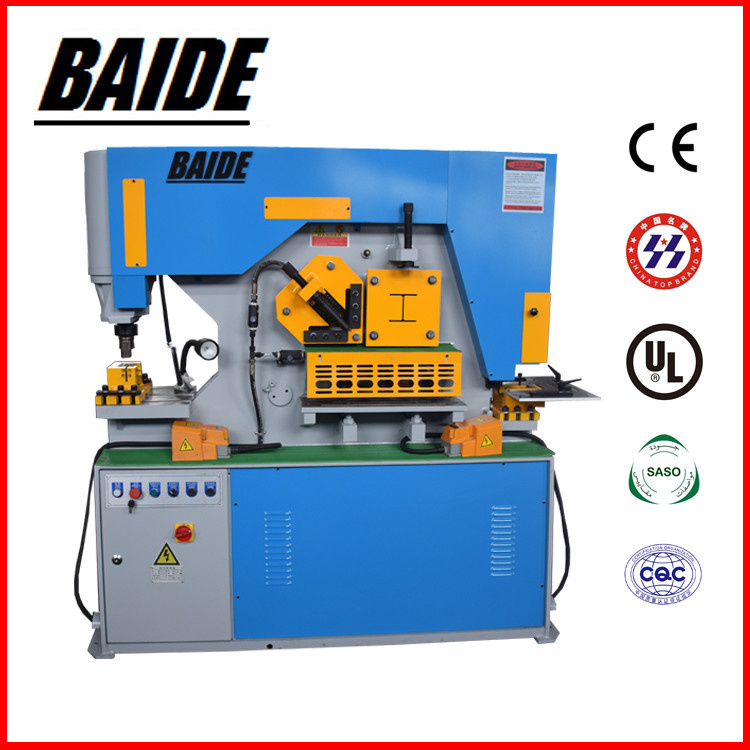

Real shot photos
| Prod Model: |
Q35Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Anhui, China (Mainland) |
| CNC Or Not: |
CNC |
| Brand Name: |
Baide |
| Model Number: |
Q35y |
| Color: |
Black and Red |
| Modle: |
Hydraulic |
| Quality Guarantee: |
1 Year |
| Operation: |
Optional |
| Delivery Date: |
30 Days |
| Package: |
Plywood |
| Forging Forming Method: |
Mold Forging |
Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine, hole punching machine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length line, slitting line, duct manufacture machines, etc.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
