Welding Capacity:
Welding range in steel is from 300mm2 to 10000mm2
Main Features of The Machine:

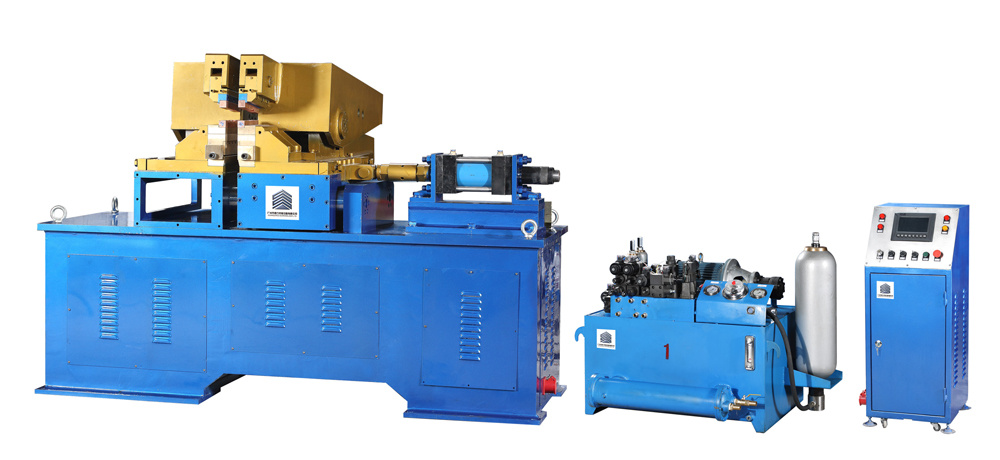

AS Series Big Power Flash Butt Welding Machine have two type:
Vertical Type and Lever Type.
They are adopted with high power hydraulic cylinder system which can output the much higher and more stable press.
Our largest models range from 10Ton upset to 200Ton upset with 500 Ton clamp force. These welders weigh up to 45 Ton
They specially designed for long, heavy duty butt welding, such as big auto rim, big size of chain, big diameter bar and tube, etc.
The flash and butt welding process provides an excellent weld quality while no need any kind of filler materials, flux or gas coverage, therefore very convenient and fast.
AS Series Vertical Type Flash Butt Welding Machine is in heavy duty circle design, which is suitable for both welding series part continuously and welding various of workpiece by one machine.
AS Series Lever Type Flash Butt Welding Machine is in strong and hard construction design, which is mainly suitable for butt welding the big cross section product
The Experienced Saleman and Engineer will evaluate your application and process to determine the size of welder and tooling arrangement to fit your needs.
There are the series and power model as: AS-200kVA, AS-250kVA, AS-300kVA, AS-350kVA, AS-400kVA, AS-450kVA, AS-500kVA, AS-630kVA, AS-800kVA, AS-1000kVA, AS-1200kVA.
Single phase AC or three phase DC.
Typical Applications:
1. To weld both light and heavy duty chain links and big rings;
2. To weld the steel strip continuously;
3. To weld car and motorbike wheel rims and wheel flange, also can weld the heavy rim of lorries and tractors.
4. To weld Cr alloy drill bits to drill rods and stems;
5. To weld the ribbed steel plates of railway crossings;
6. To weld the forged workpiece, also can weld the product before forging and punching workpiece.
7. To weld large diameter of copper tube and aluminum tube, also can butt weld other tube with big cross section area.
8. To weld the railway track.
GUANGZHOU DUROWELDER Limited is founded by WELDING TECHNOLOGIES, USA and serves as its Manufacturing Plant in order to bring latest achievements in welding science and technology to the biggest market of welding equipment in the world-China with a goal to support a demand for high quality equipment in the region and beyond.
Quality oriented design is produced by US trained technicians using state of the art facility in Guangzhou.
Our engineers make sure that all components are designed to the highest quality standards and tested in 3D models prior to release for manufacturing. It eliminates possible mistakes in design, cut the cost and allows us to produce price competitive welding machines with very short lead time.
Our products include full line of standard and custom made resistance welders, various arc welding and high degree automated
Systems, medium frequency and high frequency induction heating equipment, and so on.
Our Company is a certified ISO9001: 2000 facility and holds various quality and safety Certificates, such as National Mandatory Safety System certificate of CCC, European CE and others.
Long list of customers includes such well known companies as Dow Chemical, USA; Eastern Manufacturing, USA; Electric-NPO, Russia; Eupa Co., Taiwan; General Motors North American and European Operations; Honeywell, USA; Harley Davidson Motor Co., USA; Lloyd Industries, USA; Ningbo Fotile Kitchenware Co., Ltd., China; Phar, Mexico; Premium Aviation, USA; Zhongshan Hechang Electric Appliance Co., Ltd., China.
Welding machines manufactured in our facility are exported to many countries in the world (USA, Canada, Mexico, Italy, Spain, South Asia and Middle East countries).
Diversity of welding machines manufactured by GUANGZHOU DUROWELDER Limited with sales and technical support from WELDING TECHNOLOGIES, USA allows us to satisfy demand for dependable and cost effective quality equipment anywhere in the world.
Our Company is consumer oriented therefore we support our products not only with our extended Limited Warranty and detailed operator manuals but also throughout wide net of distributors in various regions. This distributor organization is continuously being expanded meeting demand for excellent customer support to customers who purchase our equipment.
