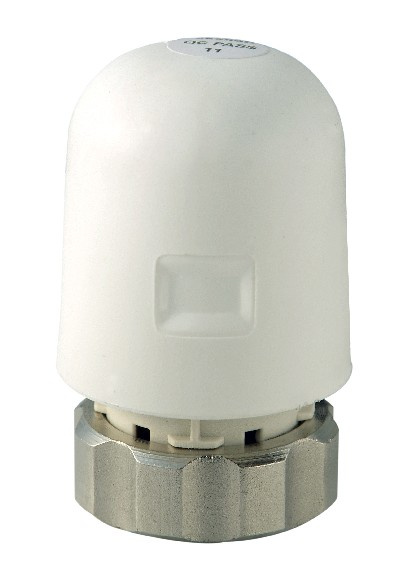

HVAC Electric Valve Actuators(HV230)
1, Product Summary:
HV230 thermoelectric actuator is a two point form switching device which has been tested by TUV. It is usually applied to control radiator, floor heating system or zone valves. It can automatically close the flux of system under the control of room thermostat and other electrical switch. This model only can be used as on-off administrator.
2, Technical Parameter:
Working Voltage: 230VAC± 10% 50/60Hz
Resumption power: 4W (Working Voltage: 24VAC); 2W (Working Voltage: 230VAC)
Single Running Time: About 4 minutes (Off-On)
Nominal Pressure: 1600KPa
Connection Way: Pipe Thread (Screw Thread G)
Working Journey: ≥ 3mm
Medium Temperature: 2~80º C
Environment Temperature: -5~50º C
Protection Grade: IP54
Safety Class: II(Double Insulation);
Connecting Line: 100cm
The material of valve body: Casting Brass
The material of actuator: PC Engineering Plastic, Fire-resistant.
|
Model |
AI |
AO |
DI |
DO |
Positive Inversion Output |
Hardware Clock |
Communication |
|
KEC621P |
1 |
X |
X |
X |
√ |
X |
1 |
|
KEC621SP |
1 |
X |
X |
X |
√ |
√ |
1 |
|
KEC622P |
2 |
1 |
1 |
1 |
X |
X |
1 |
|
KEC622SP |
2 |
1 |
1 |
1 |
X |
√ |
1 |
|
KEC682P |
4 |
2 |
2 |
3 |
X |
X |
1 |
|
KEC682SP |
4 |
2 |
2 |
3 |
X |
√ |
1 |
| Prod Model: |
HV230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
220VAC, 50/60Hz |
| Nominal Pressure: |
1.6mpa |
| Working Journey: |
3mm |
| Connection Way: |
Pipe Thread (Screw Thread G) |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Linear |
