Hot Sale Spiral Tube Forming Machine From Crystal

Hot Sale Spiral Tube Forming Machine From Crystal
Price: US $ 8600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

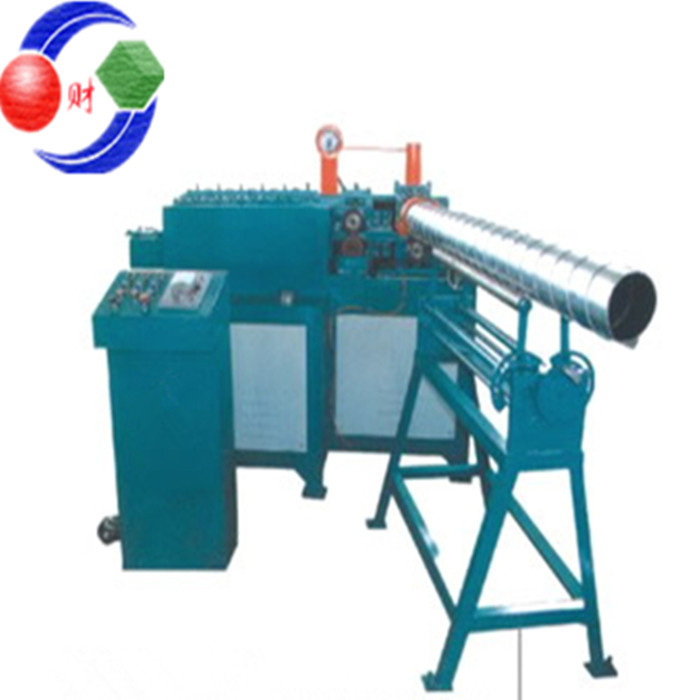

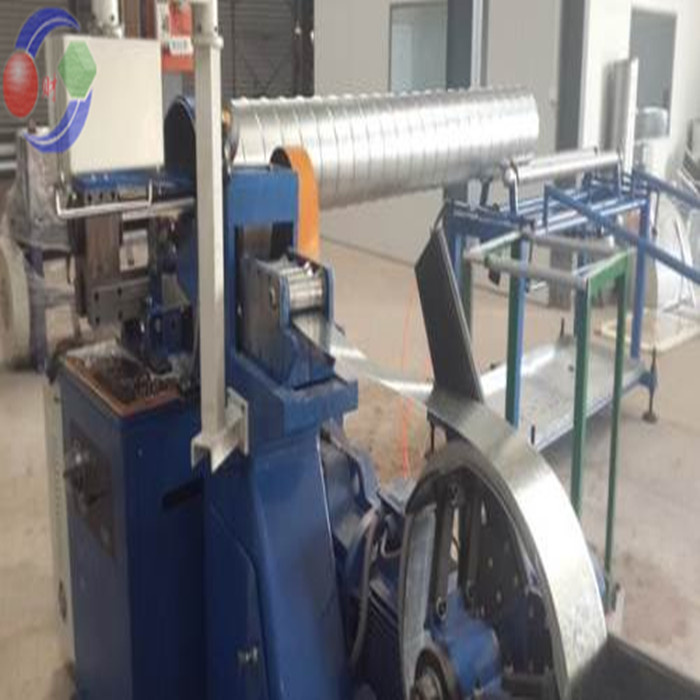

(1)This kind of tube former is similar to Spiro--one fixed mould for one diameter.
Advantages
* Quick changing mould.
* Large diameter range
* PLC control, convenient operation
* High speed synchro flying cutting system.
Main technical data
Diameter 100-800mm
Tube Length 200mm-Unlimited
Thickness of Strip 0.35-1.0mm
Width of Strip 120mm
Strip Speed 20m/min
Suitable Material Aluminum, Stainless steel, Galvanized steel, Color steel
Dimension (L x W x H): 1500 x 1500 x 880mm
Weight 1500kg
main motor 3 kW
Control System switch

main parts
1.uncoiler
2.Gear box
3.rollerGGr15,HRC58-62
4. out table:? 2000mm
5special mould ?80mm,100mm, 150mm 200mm? with the machine. If customer need more moulds ,should pay cost of the mould
We can supply mould up to 1000mm
6.Special tools

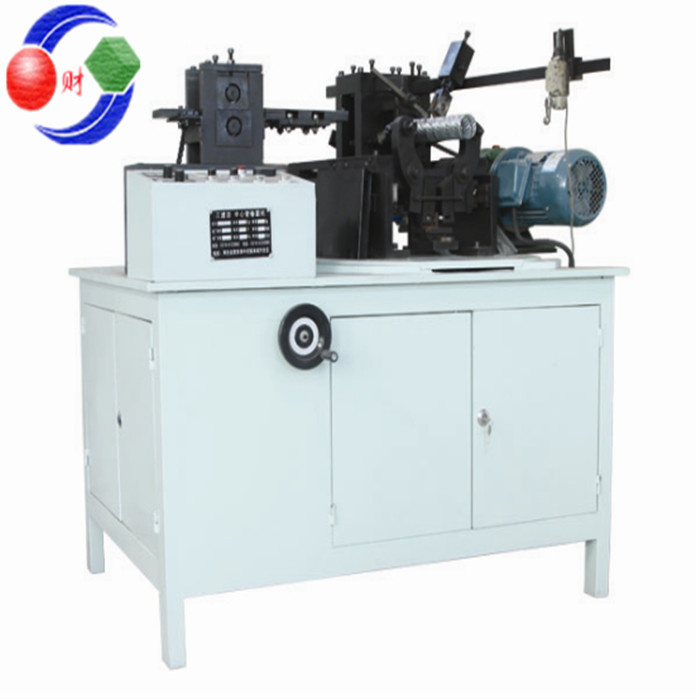

(2)

Plate thickness:0.2mm-0.4mm
Strip width:45mm
Tube diameter to produce:Ø30mm-Ø140mm
Working method:Full automatic,cut off without stopping
Motor power:1.5KW+0.75KW+0.37KW
Application materials:galvanized strip steel
Volume:
        1300mm*1200mm*1400mm(host machine)
       800mm*800mm*1000mm(material rack)
Weight:1200kg



Prod Model: HZ-CXJ-88, FUGE8-50, etc
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pipe Diameter: 100-800mm
Tube Length: 300mm-Unlimited
Plate Thickness: 0.2-0.4mm
Strip Width: 45mm
Type: Forming or Making Machine
Forging Forming Method: Forming
Customized: as Per Actual Condition
Advantage: High Quality and Cheap Price
Our company is a big exporter of various kinds of steel and iron products, metal mineral.

One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.

Here are our steel products:

Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.

The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.

Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).

If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
