Hot-Roll Fishplate Shaping Machine (JK-Y3)

Hot-Roll Fishplate Shaping Machine (JK-Y3)
Price: Negotiable/Piece
Trade Terms: By Sea
Min Order: 1set
Pay Type: Western Union

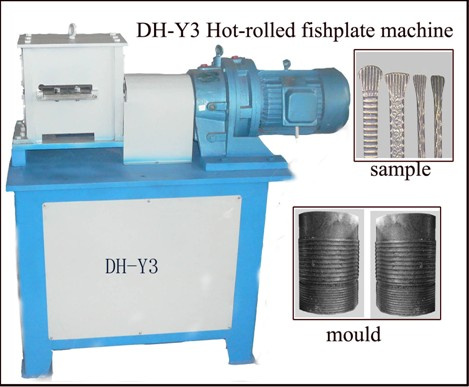

JK-Y3 Type Hot-Roll Fishplate Mill

Main features
1. There is no need to beat flat the materials to process, after heat of the end of material we can get the fishtail decoration directly by this machine. The material end becomes wider and thinner with the thickness not more than 2mm.
2. Made with cycloidal pinwheel reduction box the machine has large torque. Special way is adopted for the torque transmission between the gear box and working case, ensuring smooth and reliable mechanical operation.
3. The material input has the following advantages: Adjustable, flat and straight, so the fishtail are very straight.

4. There is a size-localization device. We can select the rolling length through the localization size according to your requirement and to achieve the best result.
5. When we process 10mm or more materials, we can get the beautiful moulding fishtail pattern depend on the wide rolling mechanism.
6. Large processing range and high efficiency, and can roll 300 pieces of 8× 40mm flat iron parts per hour.
The roller material has very good quality and long-life, and each roller can roll at least 100 thousand pieces.

External dimension 1165mmx560mmx1100mm(LxHxW)
Packing by one wood case, the sizes is 1200x580x1120mm
Net weight (kg): 350 gross weight(kg): 400
Wrought iron machine. Metal craft machine
Dies All dies was included and installed in the machine,
Working ability
(Maximum working specification) Flat steel & le; 10mmx50mm
  Round steel & le; Diameters 18mm
  Square steel & le; 16mmx16mm
Basic shaft rotation speed 10 r/min
Electric motor performance Power: 2.2 KW (class 6)
Electric voltage: 380V
Frequency: 50HZ
Prod Model: DH-Y3
Markets: North America,Southeast Asia,Africa,Eastern Asia
Attribute (E. G.: Size): Value (E. G.: 12 Inches)
Shijiazhuang Jackie Wrought Iron Machine Co., ltdis a professional manufacturer specializing in wrought iron machines, iron fittings and various wrought iron products. With its whole series of manual tools and electric programmed control wrought iron machines, Jackie company's goods not only were sold domestic market but also were exported to Europe AND AMRICA, SOUTHEAST Asia, Middle East, Africa AND OTHER PLACES. Low price and good quality were welcome by users.

Being the great industry in iron craft, our company process wrought iron craft, single component, wrought iron furniture, iron gate, stairway, iron fence, iron light etc. We also can contract to do any wrought iron craft projects.

Beneficial by mastering and possessing of nearly all the processing and manufacturing means in the wrought iron crafts field. Hebei Jackie company will exert its superiority in capability and devote itself to emerging as the best iron-art manufacturer in China depend on great variaties of products, elaborate manufacturing preferential price and best service.

Our company exist in the society and rely on society to develop itself. We return profits back to customers and society with good faith-centered concept. We sincerely hope that all the iron -art friends from all over the world can cooperate and develop together.
