The Hammer Union can be used for cementing trucks, all kinds of manifolds and other high pressure equipment, and pipes. It is an important part for transporting oil. Water, fracturing fluid and mixed fluid. These products are all made of high quality steel by forging and finishing cut. They have good. Mechanical performance and sealing property. Especially they can operate under the bad weather condition. They can be assembled fixed easily and conveniently. Main technical parameter model number collecting norm working pressure, structural length drift diameter. The product adopts some end connections of pipeline thread, tubing thread, butt-weld.
The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002.

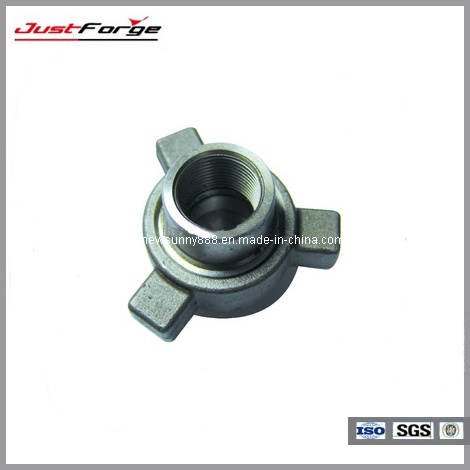

Figure 100 Hammer Union
Nominal pipe Size: 2; ± , 2-1/2; ± , 3; ± , 4; ± , 6; ± , 8; ±
Pressure Rating: 1000psi cwp; 1500 psi test;
Connections Type: Pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Manifold and line connections.
Features
Pressure-tight make-up with hammer;
Economical, low-pressure union.
ABOUT US
Ningbo just forging Co., Ltd is a professional forging manufacturer in China for auto forging parts, forging flange, forged valve body and forged parts and large forging parts. It is equipped with many advanced forging equipments: 75kg/400kg/560kg air forging hammer, 1-ton/ 5-ton electro-hydraulic forging hammer, die forging hammer from 1ton to 16 ton, 630-ton/2000-ton friction press, 315-ton/900-ton block hammer, 2000-ton/4000-ton hot die forging press, 500-ton/1000-ton oil hydraulic press and 4500-ton free forging water press.
|
1.Open Die Forging |
|
1) Suitable for: |
Small bath or Big size part. |
|
2) Material: |
Carbon steel, Alloy steel, Stainless steel,aluminum/brass |
|
3) Industry involved: |
Fluid power industry/ Automotive industry |
|
4) Part overall dimension limit: |
not exceed Dia.4000 (mm) |
|
5) Representative product: |
Flanges/Gears |
|
5) Manufacturer Certification: |
ISO9001 (2000) |
|
2.Close die forging |
|
1) Suitable for: |
big bath & medium size |
|
2) Material: |
Carbon steel, Alloy steel, Stainless steel,aluminum/brass |
|
3) Industry involved: |
Automotive industry/Engineering/^. |
|
4) Part overall dimension limit: |
max 4000tons
Hot die forging press: up to 2500tons
Electronic hydraulic hammer: up to 5tons |
|
5) Representative product: |
Auto connecting rods/Steering engines/Gears/Driving shafts/Vehicle axles |
|
6) Manufacturer Certification: |
ISO9001 (2000)/TS16949.
|
Ningbo New Sunny Co., Ltd. Founded in 1985, is a private company with 300 employees. It takes 6, 000 square meters of building area. The company's fixed assets amount to 10 million US Dollars. Our company is 15 kilometers near from Ningbo International Airport. Also 40 kilometers from Ningbo Beilun Seaport which is third largest port in China.
Ningbo New Sunny Co., Ltd has two wholly owned factory which one is Ningbo JUST forging Co., Ltd, another one is Ningbo New Sunny Plastic Auto Part Co., Ltd. From 1985 year, we produced forged valve body, forged valve bonnet, forged iron core of rubber track, forged stainless steel component, forged car steering knuckle, forged cross shaft, forged mechanical parts, forged auto parts, forged motorcycle parts, etc. These products are exported to the United States, Canada, Germany, Sri Lanka, Turkey, and Southeast of Asian included more than 150 countries of the world...
Durning the more than 20 years development, due to complete and excellent production equipments, advanced technologies and whole testing facilities, we enlarge our products line to molding system. Such as provides injection molding, stamping plastic products processing plastic, non-standard plastic tools for all kinds of auto parts.
Our company has advanced processing equipment die - CNC machining centers, CNC milling machine, EDM machine tools, WEDM and lathes, MILLING machines, GRINGING machines, production of all die on their own equipment and processing. The annual capacity of the company is 10000 ton forged & million injection molding plastic products per month. Our main hot die forging equipment include: Hot die forging double friction press(1600T, 1000T, 630T, 400T), air hammer, 200 ton punching machine, sand rolling machine, round steel cut machine, sawing machine, coal gas furnace, 5 web-strip hot resistance furnace. The main test machine include: Sclerometer, hydraulic universal testing machine, magnaflux, carbon and sulfur analyzer, metallographic analysis instrument, spectrum meter. Also our company passed the ISO9001 & ISO14001. For more details, please don't hesitate to visit our B2B platform of HTTP: //nbnewsunny888. Made-in-China. com
