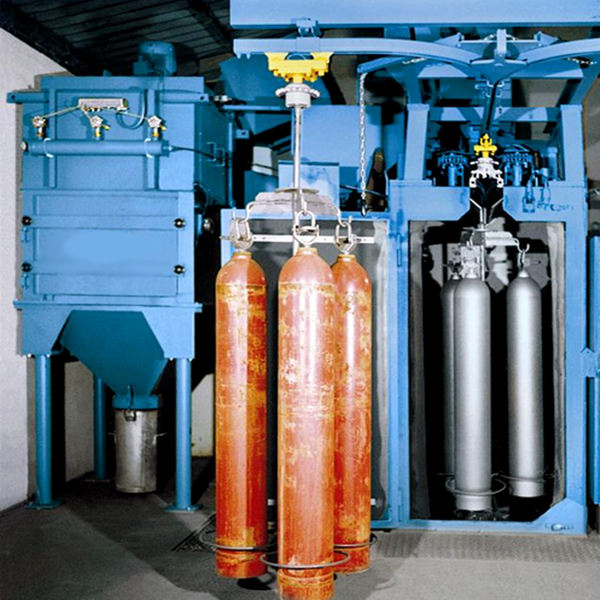

Gas Cylinder Shot Blasting Machine
1.Application of Hook Type Gas Cylinder Shot Blasting Machine:
Hook Type Gas Cylinder Shot Blast Machine is mainly used to clean and strengthen the surface of steel structural parts, casting parts, aluminum alloy parts and other spare parts.
Hook shot blasting machine is widely used in forging industry, forging machinery, iron and steel industry.
2.Description:
Pass Through Hook Type Shot Blasting Machine is suitable for bulk of large pieces of machinery and steel structure to make surface cleaning and blasting strengthen.to remove the welding slags and surface oxide;it aslo used for surface cleaning and strengthening for heat-treated pieces;and it's used for fear,gear shaft,engine connecting rod,diaphragm spring,cannonball inner shell and other parts surface descaling after heat-treating to make the surface of workpieces to reach the color of silver-gray,and eliminate stress,improve surface adhesion of the coating;increase the surface stress ,improve fatigue strength to reach the aim of blasting stengthen.
3.Technical parameters:
We will recommend you the right machine according to the workpiece and your requirement.
| Technical parameters of Hook type shot blasting machine |
| NO. | Type
Item | KSB-6 | KSB-8 | KSB-10 | KSB-20 | KSB-30 | KSB-35 |
| 1 | Size of cleaning piece | mm | Ø700*
1120 | Ø900*1600 | Ø1000*1850 | Ø1400*
2300 | Ø1600*
2200 | Ø1800*2500 |
| 2 | Carrying weight of single hook | kg | 600 | 1000 | 1000 | 2000 | 3000 | 5000 |
| 3 | Abrasive flow rate | kg/min | 2*140 | 2*
260 | 2*260 | 3*260 | 3*260 | 4*260 |
| 4 | elevating capacity | t/h | 16 | 24 | 33 | 48 | 48 | 60 |
| 5 | Separating capacity | t/h | 16 | 24 | 33 | 48 | 48 | 60 |
| 6 | Ventilation capacity | m³/h | 5000 | 8000 | 9000 | 15000 | 15000 | 18000 |
| 7 | Power(excluding dedusting) | kw | 19 | 32.5 | 36.55 | 61.27 | 64.4 | 78.4 |
| 8 | Outline dimensions | mm | 4429*2850*4200 | 4235*2660*5009 | 5047*3850*5156 | 6110*3599*7842 | 7085*4650*8652 | 7062*5460*8852 |
4.Constituent Part:
| 1 | Blast Wheel |
| 2 | Shot blasting chamber |
| 3 | Screw conveyor |
| 4 | Elevator |
| 5 | Separator |
| 6 | Flow adjusting device |
| 7 | Dust removing pipe |
| 8 | Dust collector |
| 9 | Access Guide Device |
| 10 | Electrical control system |
5.Trade Term:
Payment term: 30% as deposit, 70% balance against the copy of B/L
Delivery of the goods is executed within 45 days after receipt of advance payment.
Manufacturer must provide the certificate of origin to buyer.
Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
Welcome contact us or visit our company in Qingdao China.
