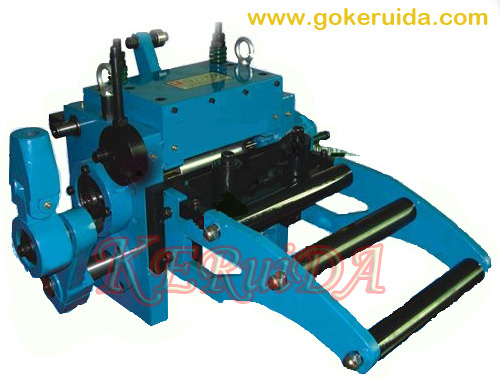

Mechanism Features:
1. One Direction Clutch
1). Made of tungsten carbide steel on the contacting surface to keep rigidity, precision and durability.
2). The gear is hardened to HRC60° And the best transmission accuracy.
2. Roller
High feed accuracy at exact positioning with hollow roller of less weight, and lower inertia.
3. Disk Brake:
Apply the advanced brake lining to have accuracy, durability, and rigidity.
4. The Anti-reversing Device
1). The structure is the same with the one way clutch. It can precisely control the lower roller which will not reverse even in long time using. It is stable and precise.
2). The brakes will be not out of control by the splashed waste oil when it is punching otherwise the lower roller will reverse and transfer distance will be imprecise.
3). It will not cause high heat.
4). Durable with super hard carbide surface and rollers.
5). The acting form of the rollers is circular movement, unlike the four guides moving in straight line, so it will not stuck.
6). As less friction it will occurred, the torsion needed will be correspondingly less. And the transfer structure will not easy wear out.
7). Speed can reach 30M/min if the anti-reversing device is fitted. Generally it is 20M/min. Efficiency has been increased by 50%.
8). Its special structure can increased it's using life.
|
|
|
|
|
|
|
Dimensions (mm) |
Weight(Kg) |
|
Models |
Roll width (mm) |
Feed Lengt (mm) |
Material Line height(mm) |
Material Thickness (mm) |
Press Capacity (T) |
|
A |
B |
C |
D |
E |
F |
G |
H |
|
|
RFS-105NS |
100 |
50 |
0-1.6 |
60-140 |
5–20 |
537 |
247 |
250 |
292 |
200 |
95 |
295 |
120 |
64 |
|
RFS-205NS |
200 |
50 |
0-1.6 |
55-100 |
20 |
637 |
347 |
270 |
342 |
220 |
125 |
345 |
120 |
87 |
|
RFS-255NS |
150 |
50 |
0-1.6 |
55-101 |
20 |
687 |
397 |
270 |
367 |
220 |
125 |
345 |
120 |
95 |
|
RFS-305NS |
150 |
50 |
0-1.6 |
55-102 |
40 |
737 |
447 |
270 |
392 |
220 |
125 |
345 |
120 |
103 |
|
RFS-355NS |
150 |
50 |
0-1.6 |
55-103 |
40 |
787 |
497 |
270 |
417 |
220 |
125 |
345 |
120 |
111 |
|
RFS-405NS |
150 |
50 |
0-1.6 |
55-104 |
60 |
837 |
547 |
270 |
442 |
220 |
125 |
345 |
120 |
121 |
|
RFS-455NS |
150 |
50 |
0-1.6 |
55-105 |
80 |
887 |
597 |
270 |
467 |
220 |
125 |
345 |
120 |
131 |
|
RFS-505NS |
150 |
50 |
0-1.6 |
55-106 |
80 |
937 |
647 |
270 |
492 |
220 |
125 |
345 |
120 |
141 |
|
RFS-555NS |
150 |
50 |
0-1.6 |
55-107 |
110 |
987 |
697 |
270 |
517 |
220 |
125 |
345 |
120 |
151 |
|
RFS-605NS |
150 |
50 |
0-1.6 |
55-108 |
110 |
1037 |
747 |
270 |
542 |
220 |
125 |
345 |
120 |
161 |
|
RFS-138NS |
150 |
80 |
0-1.6 |
55-109 |
10-60 |
535 |
275 |
310 |
276 |
200 |
95 |
295 |
185 |
76 |
|
RFS-188NS |
150 |
80 |
0-1.6 |
55-110 |
20-60 |
605 |
345 |
310 |
311 |
200 |
125 |
325 |
185 |
84 |
|
RFS-1310NS |
150 |
100 |
0-3.5 |
55-111 |
40-60 |
618 |
308 |
410 |
349 |
272 |
380 |
632 |
241 |
142 |
|
RFS-1510NS |
150 |
100 |
0-3.5 |
55-112 |
40-60 |
658 |
348 |
410 |
359 |
272 |
380 |
632 |
241 |
150 |
