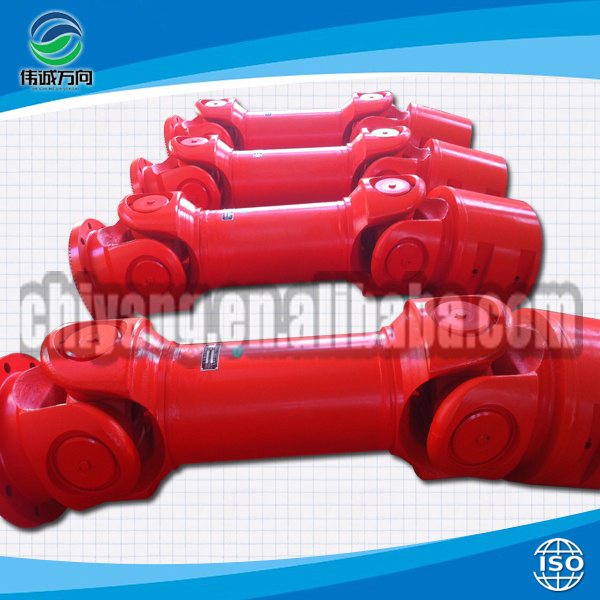

High Rotation Speed Precise Drive Shaft

Data and Size of SWCZ Series Universal Joint Couplings:

Type	Design Data Item	SWCZ 680	SWZ 700	SWZ 750	SWZ 780	SWZ 800	SWZ 840	SWZ 900	SWZ 920	SWZ 1000	SWZ 1060	SWZ 1100	SWZ 1200
C	L	1540	1600	1840	1920	1920	2120	2280	2280	2380	2480	2500	2720
	M(kg)	3150	3450	4300	4680	5050	6400	8420	8950	10600	12100	13500	16900
D	L	1940	2100	2400	2500	2500	2680	2950	2950	3130	3200	3300	3570
	M(kg)	3220	3530	4500	5400	5800	7470	9980	10500	12300	14500	15800	19500
E	L	3230	3460	3620	4000	4000	4250	4580	4850	4770	4950	5100	5660
	LV	250	250	250	250	250	250	300	300	300	300	300	300
	M(kg)	4880	5400	8000	8450	9070	11800	15900	16500	19900	22000	27500	34800
Tn(kN·m)		1640	1750	2250	2500	2670	3100	3800	4050	5200	6500	6900	9000
TF(kN·m)		980	1050	1350	1500	1600	1860	2280	2430	3120	3900	4140	5400
Β(°)		15	15	15	15	15	15	15	15	15	15	15	15
D		680	700	750	780	800	840	900	920	1000	1060	1100	1200
Df		680	700	750	780	800	840	900	920	1000	1060	1100	1200
D1		635	635	695	725	745	775	835	855	915	980	1015	1100
D2(H9)		550	570	610	640	660	710	740	760	840	840	920	1000
D3		560	560	620	660	660	660	750	750	790	800	850	900
Lm		385	400	480	480	480	530	570	570	595	620	625	680
K		70	70	95	95	95	110	120	120	130	130	130	130
N		24	24	24	24	24	24	24	24	20	20	20	20
D		26	26	31	31	36	38	38	38	50	45	50	58
Flange bolt		M24	M24	M30	M30	M30	M36	M36	M36	M48	M42	M48	M56

1. Notations:
L=Standard length, or compressed length for designs with length compensation;
LV=Length compensation;
M=Weight;
Tn=Nominal torque(Yield torque 50% over Tn);
TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strength
Under reversing loads;
Β=Maximum deflection angle;
2. Millimeters are used as measurement units except where noted;
3. Please consult us for customizations regarding length, length compensation and
Flange connections.
(DIN or SAT etc. )



WHAT IS OUR ADVANTAGEs?

1. Low supply cycle to one week
2. Simple and convenient installation, can be put into use immediately
3. In the bad environment in high intensity running for a long time

WHY CHOOSE US?

1. A strong design team, to provide you with non - standard custom scheme of cardan shaft;
2. Structure optimization of cardan shaft, carry alternating torque capacity increased by 30%;
3. Alignment is less than 0.5 mm, smooth operation, the critical speed of up to 4000 r/min;
4. Unique packing design, the service life of the bearing more than 12000 hours.

HOW TO ENSURE OUR QUALITY?

1. To provide you with universal shaft of the overall solution!
2. To provide you with the drive more reliable, long life, the best quality products!
3. To provide you with timely after-sales service!
