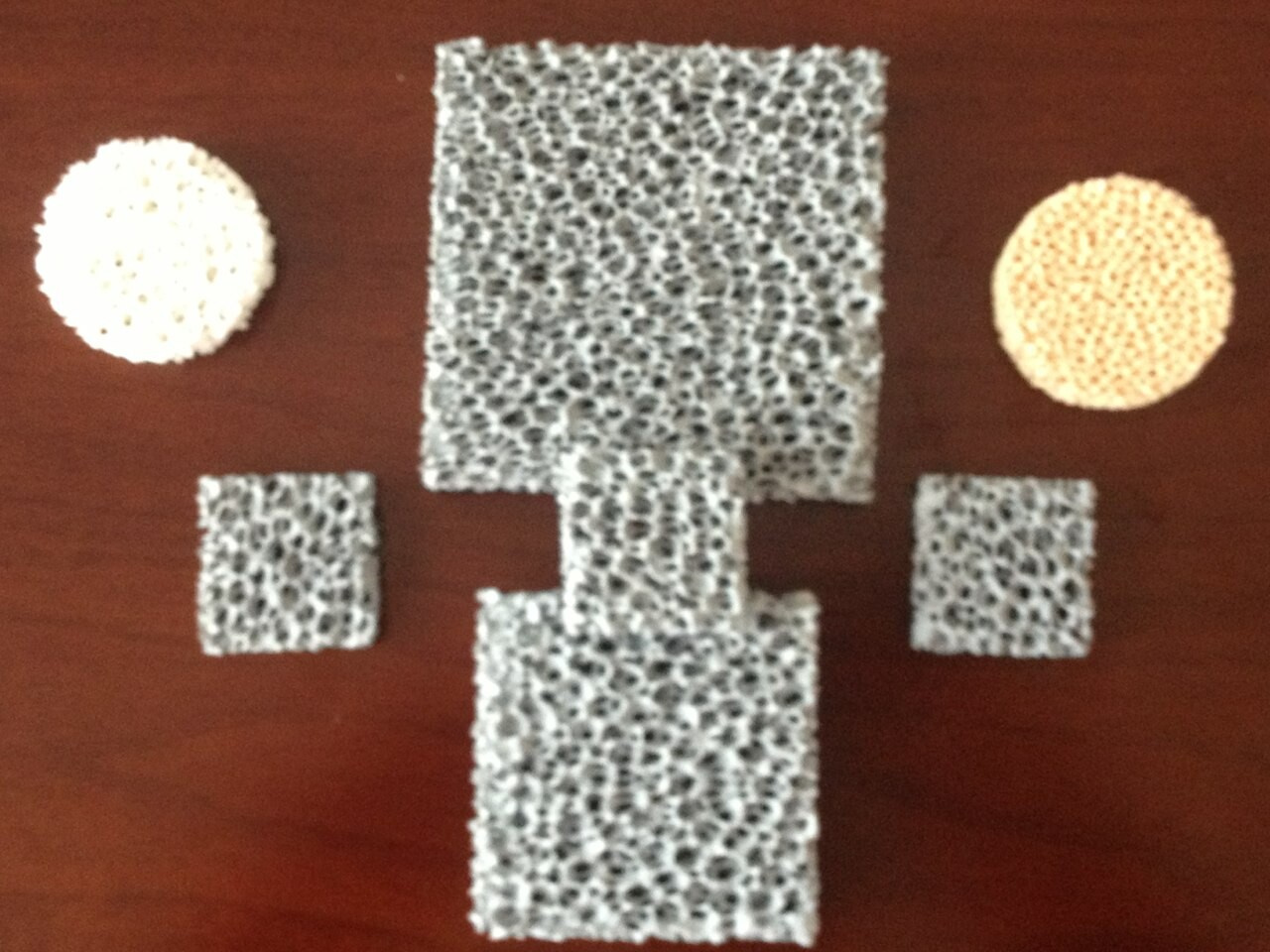

High Quality Sic, Alumina, Zirconia Ceramic Foam Filter for Casting

High Quality Sic, Alumina, Zirconia Ceramic Foam Filter for Casting
Price: US $ 0.13-0.17piece (depend on size)
Trade Terms: FOB,CFR,CIF
Min Order: 200piece (depend on size)
Pay Type: L/C,T/T,Western Union
Professional Factory Provided, Stable Quality! SiC/Al2O3/Zirconia Ceramic Foam Filter With High Mechanical Strength And Long
Service Life

In Common and high temperature, besides high porosity, heat and shock resistance, high intensity, high specific surface area and good stability, sieving, capturing slag and nidation are still the characters of foam ceramic filters, all that could filter very samll impurity, even micron. Even three dimensional structures could change turbulent current liquor into stable flow. After venting gas, we could mold gently, so as to improve the castings quality. Besides filtering molten metal with high temperature, our products could be used as dealing with high temperature gas, catalyst substrate, solid heat exchanger, special packing and so on.

According to our clients' requirement, we could produce Foam Ceramic Filters with different specifications (dimension and channel shape).
Feature CFA CFS CFM CFZ
Material Alumina SiC Magnesia Zirconia
Temperature (celsius degree) ≤1200 ≤1500 ≤1100 ≤1700
PPi 10~50
Porsity(%) 80~90   70~80
Hardness (Mpa) ≥0.8 ≥1.0 ≥0.8 ≥1.5
Density (g/cm3) ≤0.5 ≤0.5 ≤0.7 ≤1
Thermal Stability (1100celsius degree/per time) 2 2   2
Content AI2O3 (%) 60~70 30~35 _ 10~35
SiO2  (%) 15~25 0~5 _ 0~5
SiC  (%) _ 60~65 _ _
ZrO2 (%) _ _ _ >70
MgO   _ >90
Others (%) 10~15 0~5   0~10
Application Aluminum alloy, etc. Iron, Copper Casting Magnesium and Magnesium Alloys Steel Casting
Prod Model: FCF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification: 50*50*13mm, 200*150*15mm, 400*250*15mm, etc
Ppi: 10-60ppi
Thickness: 12-25mm
Usage: Steel Iron Casting
Feature: Long Time Materials
Type: Refractory Material
Refractoriness (',℃): 1770< Refractoriness< 2000
Shape: Rectangle, Round, Square
Material: Sic/Alumina/Zirconia/Cordierite
