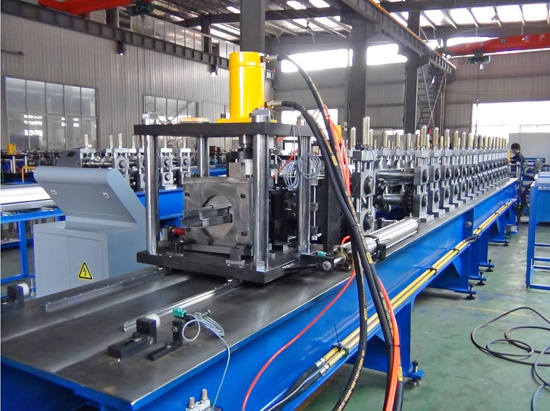

Stud and track forming machine, light keel roll forming machine, channel forming machine, omega profile forming machine, furring channel forming machine, Ceiling grid roll forming machine
Profile Shape: C shape, U shape, L shape, Omega Shape.
Technical Parameters of ceiling grid forming machine:
Technical Parameters:
1. Feeding Machine
1). Inner Diameter: 450mm-500mm
2). The largest width: 200mm
3). Capacity: 2500kg
2. Forming machine
1). 10 rows
2). Material of principal axis: 45#steel Diameter: Φ 50mm
3). Roll Composite Mould: 1 set, Cutter: 5sets, Material: Cr12
4). Main Motor Power: 4Kw(Delta Taiwan frequency changer)
5). Forming Speed: 3-50m/min(punching 0-15m/min)
6)Weight: About 4T
7)Size(L*W*H): 4500mm*700mm*900mm
3. Hydraulic Cutter and punching device
Hydraulic Tracking Cut device, Power: 3KW
4. Control System
PLC touch screen control system with the whole line(Delta Taiwan)
We can also design and manufacture as per your request!
Jacky (sales manager)
Botou Huikeyuan Engineering Control Co., Ltd.
Tel: 86-317-7668238
Fax: 86-317-3087243
Mobile: 15503170286
Website: Www. Rollformingmachine-China. Net
|
Advantage of our stud and track forming machines |
|
High quality |
|
Lower cost |
|
Durableness |
|
High efficiency |
|
Reliable working |
|
Low failure rate |
|
Low energy consumption |
|
Trouble free after sales service |
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
