Aluminum Gravity Die Casting Machine JDXZ-900

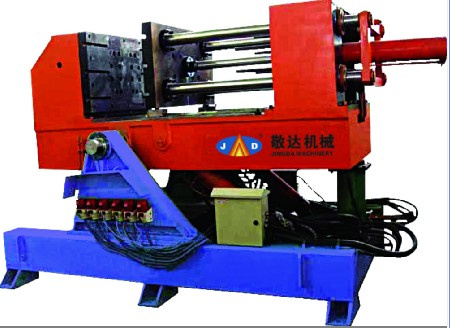

JDXZ-900 Tilt Gravity Die Casting Machine for aluminium.
It's a machine which is used in casting not only aluminum but also zinc and some other metals. For brass and copper casting, please refer to our products JD-AB500 and JD-AB400.
Technical parameters:
1. Controlled by a PLC control unit. (Mitsubishi).
2. Running: Hydraulic Transmission&water cooling system(A hydraulic master cylinder system can control three casting machines)...
3. Casting Function: Tilting moving casting, fixed tilting casting, fixed horizontal casting
4. Casting speed & angle are adjustable, size angle: 0-85°
5. The time of colling mold is adjustable
6. The size of die holder of fixed mold: 750mm*350mm*70mm
7. Max. Weight of mould: 250kgs
8. Having safety footboard(the set to protect the operator)
9. Power: 7.5KW.
10. Max engaging distance: 400mm
11. The space between the fixing board of the mold: 620mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity: 450L
14. Working oil pressure: 50-60kg/cm²
15. Solid time are adjustable.
16. The time of casting can be shown.
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold can not be engaged
19. The net weight of machine: 3500kg
20. Machine dimensions: 2600mm* 1500mm* 1700mm
Our products JD-650-75A and JD-750-75A are also used in casting not only aluminum but also zinc and some other metals.
On technology, we constantly innovate, and strive to high-tech and high quality;
On the process, we strive for perfection, breakthrough tradition and strive for excellence;
On management, we emphasize science, pursue internationalization management concept;
On the service, we adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.
| Aluminum Gravity Die Casting Machine JD500 |
| Device | Controlled by a PLC control unit. (Mitsubishi) |
| mould specifications | 900x750mm |
| minimum stroke | 400mm |
| max stroke | 900mm |
| Lifting stroke | 500(125x500)mm |
| To flip the oil cylinder stroke 80x360 | 360mm |
| Top oil cylinder stroke 100 x100 | 100mm |
| Top oil cylinder stroke 80 x100 | 100(adjustable)mm |
| Working oil pressure | 50-60kg/cm2; |
| Running | Hydraulic Transmission& water cooling system(A hydraulic master cylinder system can control three casting machines) |
| Casting Function | Tilting moving casting, fixed tilting casting, fixed horizontal casting |
| The net weight of machine | 3500kg |
| Machine dimensions | 2600mm* 1500mm* 1700mm
|
