Product Details
Basic Info.
Molding Style: Forging
？
Processing Object :Metal
Size: Outside Diameter From 100mm to 5000mm
？
Export Markets: Global
Additional Info.
Trademark: BROTHER
？
Packing: Sea worthy Packing
Standard: ISO 9001:2008,SGS
？
Origin: CHANGZHOU
Production Capacity:150 Tons/Day
Product Description
Special shape open die forging？/Free Forging
Specifications？
1Delivery status: heat-cogging-prototyping-rough machining-heat treatment-finish machining-package and delivery
2Dimention: OD100-5000mm？
3Shape: According to drawings？
3Delivery time: 25 days？
We professionally machining and produce forged heavy forgings for machinery, metallurgy, chemistry and petroleum industries, wind power, shipping, transportation, agriculture, pipeline, etc？
(1), among the free forgings are generally the better choice for the sake of its high tolerance strength, hardness, yield strength, elongation, crush resistance, torsion resistance and shearing resistance.？
(2), we can forge forgings according to weight ranges from 10kg-80T.？
(3), we have professional UT center and mechanical property testing center.？
(4), we were certificated to ISO9001: 2008,SGS？
(5), main material are 40Cr, 42CrMo, 20Cr2Ni4, 5CrNiMo, 15CrNiMo, 20CrNiMo, 35CrMo, 40CrNiMo,AISI4140,AISI4340,AISI4130,F11,F22,F91,304,321,316,316L etc.？
(6), regularly, we accept processing on giving materials.？
(7), we generally produce forging blank with rough machining range from 10kg to 80t？.
(8), according to practical situation and customers' clear requirements we can render excellent heat treatment.？
(9) We can finished product delivery according to customer`s requirement. We have full set of finishing equipment and testing equipment, such as digital controlled lathe, machining center ,three coordinates testing and so on
(10), as for the third party inspection, we will try out utmost to satisfy our customers' request.？
(11), if you have office in China, pls kindly pay a visit to our factory, and we are with much pleasure to apply for the invitation letter for your visa.？
(12), our staff are with tremendous sincerity welcome your arrival and guide! ! !？

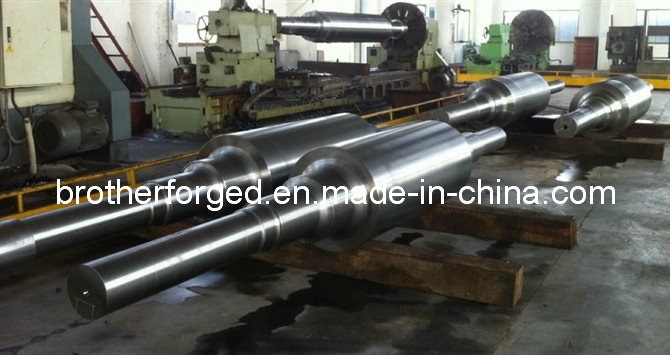

(13 ), shaft forging？
1, WEIGHT≤ 80T？
2, length ≤ 18m？
3, MIM dia over 80mm？
(14), cylinder forging？
1, min OD around 80mm？
2, weight of single piece ≤ 80T？
3, height within 5000mm？
(15), steel bar forging？
1, dia above 90mm？
2, length within 18m？
Other forgings that our factory can make also share the same requirements
|
ChangZhou Brother Machinery Co., Ltd |
|
Puan Village, Lijia Town, Wuji District, Changzhou, Jiangsu, China |
|
Tel: 0086 15861897712 |
|
|
Fax: 86-0519-88930716 |
|
Products: |
Free forging/Forged Open die |
|
Material: |
Vacuum Degassed Ingot of Carbon Steel & Alloy steel & Stainless Steel |
|
Forging Equipments: |
1.8tons, 6tons Electrical Hydraulic Hammer. 3000tons, 7000tons, 19000tons Hydraulic press |
|
|
2.1ton, 750KGS, 560KGS, 200KGS air hammers |
|
Heat treatment: |
Normalized/quench and temper/annealed/solution treatment |
|
Machining Equipment: |
1. Horizontal Turning Machine |
|
|
2. Vertical Turning Machine |
|
|
3. Milling Machine |
|
|
4. Drilling Machie |
|
|
5. CNC etc. |
|
Quality System: |
ISO9001: 2008 |
|
Cetificate: |
SGS |
|
Products Type: |
Maximum Diameter(mm) |
Max. length(mm) |
Maximum weight(ton) |
|
Ring |
5000 |
1500 |
35 |
|
Shaft |
2500 |
18000 |
80 |
|
Block |
3500 |
18000 |
80 |
|
Hollows |
4000 |
6000 |
80 |
|
Flange |
5000 |
1500 |
35 |
|
Round bar |
2500 |
18000 |
80 |
|
Unusualshapes |
2000 |
10000 |
80 |
|
Forging Ratio: |
≥ 3.5 |
|
Annual Production Ability: |
50000 tons |
|
QA & DOC: |
EN10228 3.1 Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report (according to EN10228-3, SA388, Sep 1921 etc. ) Heat Treatment Report, Dimensions Check Report |
