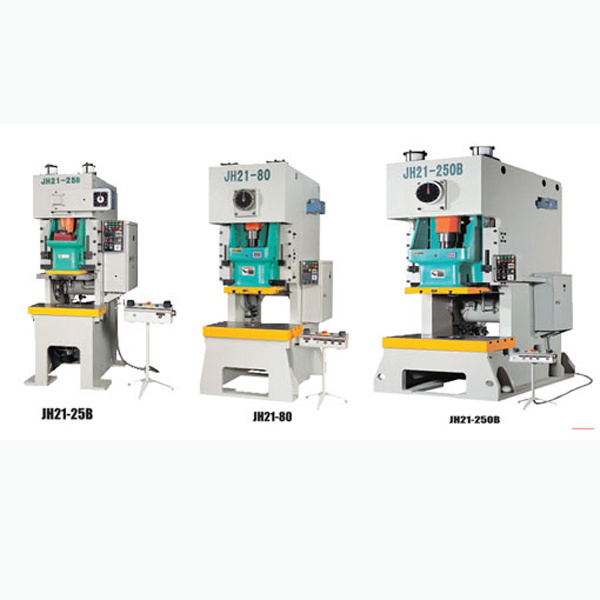

JH21 series open back press machine (with dry clutch and hydraulic overload protector)
Dry pneumatic friction, hydraulic safety device
Welded body with steel plate and high intensity
Main motor is made by Siemens
Adopts combined pneumatic friction clutch and brake
Cluster gear adopts the flooding oil lubrication
Six-face rectangle lengthen guide, JH21-315B/400B adopts eight-face lengthen guideway
Equipped with hydraulic overload protecting device
JH21-15/15B45 adopts manual shut height adjustment, among these types JH21-25/45 adopts scale display and JH21-25B with digital display, JH21-63 and above type adopts electric shut height adjustment with digital display
JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital
JH-25B, JH21-45 and above type equipped with balance cylinder
Duplex valves imported
Electric compelling grease lubrication system
Balancing cylinder adopts manual lubrication system
One set of blowing device
Controlled by PLC with international brand
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand
Equipped with optional air cushion device, automatic feed shaft and photoelectric protector, which can used to work with various automatic equipments
|
model |
JH21-25B |
JH21-25 |
JH21-45 |
JH21-63 |
JH21-80 |
JH21-110 |
JH21-125 |
JH21-160B |
|
nominal force |
kn |
250 |
250 |
450 |
630 |
800 |
1100 |
1250 |
1600 |
|
stroke under nominal force |
mm |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
6 |
|
slide block stroke |
mm |
60 |
80 |
100 |
120 |
140 |
160 |
160 |
160 |
|
number of stroke |
fixed |
spm |
100 |
100 |
80 |
70 |
60 |
50 |
50 |
40 |
|
variable (optional) |
spm |
80-120 |
80-120 |
70-90 |
60-80 |
50-70 |
40-60 |
40-60 |
35-50 |
|
max die set height |
mm |
200 |
250 |
270 |
300 |
320 |
350 |
350 |
350 |
|
die set height adjustment |
mm |
50 |
50 |
60 |
80 |
80 |
80 |
80 |
110 |
|
distance from slide block centre to the frame |
mm |
160 |
210 |
230 |
300 |
300 |
350 |
350 |
380 |
|
worktable dimensions (f.b*l.r) |
mm |
300*680 |
400*700 |
440*810 |
570*900 |
580*1000 |
680*1150 |
680*1150 |
740*1300 |
|
dimensions of worktable hole |
mm |
130*260 |
170*20*151 |
180*30*161 |
200*40*180 |
200*40*180 |
260*50*220 |
260*50*220 |
300*50*260 |
|
thickness of bolster |
mm |
70 |
80 |
110 |
110 |
120 |
140 |
140 |
150 |
|
hole dimensions in bed (diameter/f.b*l.r) |
mm |
200*270 |
260*250 |
300*300 |
390*460 |
390*520 |
420*540 |
420*540 |
480*600 |
|
dimensions of slide block bottom surface(f.b*l.r) |
mm |
270*330 |
250*360 |
340*410 |
400*480 |
420*560 |
500*650 |
540*680 |
580*770 |
|
size of the handle hole (diameter * depth) |
mm |
40*60 |
40*60 |
40*60 |
50*80 |
50*80 |
60*80 |
60*80 |
65*90 |
|
distance between columns of body |
mm |
448 |
450 |
550 |
620 |
670 |
760 |
760 |
850 |
|
main motor capacity |
kw |
3 |
3 |
5.5 |
5.5 |
7.5 |
11 |
11 |
15 |
|
outline dimension (f.b*l.r*h) |
mm |
1150*1050*2050 |
1280*1050*2050 |
1500*1125*2400 |
1800*1210*2520 |
1760*1280*2780 |
2010*1400*3040 |
2010*1440*3050 |
2280*1550*3240 |
|
net / cross weight |
kg |
2200 |
2800 |
3450 |
5400 |
7000 |
9340 |
9900 |
14500 |
|
model |
JH21-200 |
JH21-200B |
JH21-250 |
JH21-250B |
JH21-315 |
JH21-315B |
JH21-400 |
JH21-400B |
|
nominal force |
kn |
2000 |
2000 |
2500 |
2500 |
3150 |
3150 |
4000 |
4000 |
|
stroke under nominal force |
mm |
6 |
6 |
8 |
8 |
8 |
8 |
10 |
10 |
|
slide block stroke |
mm |
180 |
200 |
200 |
250 |
200 |
250 |
200 |
250 |
|
number of stroke |
fixed |
spm |
35 |
35 |
30 |
30 |
30 |
30 |
25 |
25 |
|
variable (optional) |
spm |
30-40 |
30-40 |
25-35 |
25-35 |
25-35 |
25-35 |
20-30 |
20-30 |
|
max die set height |
mm |
390 |
450 |
430 |
500 |
430 |
550 |
430 |
550 |
|
die set height adjustment |
mm |
110 |
110 |
120 |
120 |
120 |
120 |
120 |
120 |
|
distance from slide block centre to the frame |
mm |
390 |
390 |
420 |
420 |
420 |
460 |
420 |
490 |
|
worktable dimensions (f.b*l.r) |
mm |
760*1400 |
760*1400 |
800*1400 |
800*1400 |
800*1400 |
880*1600 |
800*1400 |
940*1800 |
|
dimensions of worktable hole |
mm |
300*50*260 |
300*50*260 |
300*50*280 |
300*50*280 |
300*50*280 |
300*50*280 |
300*50*280 |
300*50*280 |
|
thickness of bolster |
mm |
160 |
160 |
170 |
170 |
170 |
200 |
180 |
200 |
|
hole dimensions in bed (diameter/f.b*l.r) |
mm |
470 |
470 |
370*570 |
370*570 |
440*580 |
440*580 |
440*580 |
440*580 |
|
dimensions of slide block bottom surface(f.b*l.r) |
mm |
600*800 |
600*800 |
650*850 |
650*850 |
650*850 |
700*950 |
690*900 |
720*1000 |
|
size of the handle hole (diameter * depth) |
mm |
65*90 |
65*90 |
70*90 |
70*90 |
70*90 |
70*90 |
70*90+ |
70*90 |
|
distance between columns of body |
mm |
870 |
870 |
960 |
960 |
920 |
920 |
960 |
960 |
|
main motor capacity |
kw |
18.5 |
18.5 |
22 |
22 |
30 |
30 |
37 |
37 |
|
outline dimension (f.b*l.r*h) |
mm |
2500*1580*3320 |
2500*1580*3420 |
2730*1640*3550 |
2770*1700*4060 |
2770*1650*3550 |
2850*1700*4450 |
2830*1680*3890 |
3100*1900*4600 |
|
net / cross weight |
kg |
17000 |
17350 |
23500 |
24500 |
25000 |
28000 |
29500 |
34000 |
