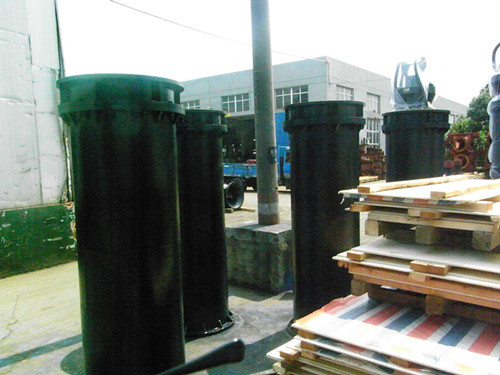

High Head Drainage Multistage Vertical Pump
General introduction and application:
LP Type Long-axis Vertical Discharge Pump is mainly used for pumping sewage or waste water which are non corrosive, at the temperature lower than 60Co and of which suspended substances are free of fibers or abrasive particles, content is less than 150mg/L.
On the basis of LP Type Long-axis Vertical Discharge Pump. LPT type is additionally fitted with muff armor tubing with lubricant inside, serving for pumping of sewage or waste water, which are at the temperature lower than 60Co and contain certain solid particles, such as scrap iron, fine sand, coal powder, etc.
LP(T) Type Long-axis Vertical Discharge Pump is of wide applicability in the fields of public work, steel and iron metallurgy, chemistry, paper-making, tapping water service, power station and irrigation and water conservancy, etc.
1. Application
1. Industries of petroleum, chemical, food, mining, cooling
2. Ship building, architecture, municipal work, construction
3. Sewage treatment, agriculture, drainage of water towers, hills, water circulate
4. Fish ponds, swimming pool, pond, rain, infiltration water
2. Features
1. Precision Casting promise it hard-wearing.
2. Standard ISO management system and CE products tests
3. Simple structure composed of top quality components
4. Endurable and easy repair, portable
5. Easily pass for solid and particles
6. High discharge low flow
3. Working conditions
1. Immersion depth is 0-5m under water
2. Temperature of transmission medium is 0-40c. (RWQ, RWQF, RQX, RQXF series can up to 120c. )
3. PH value is usually 6.5-8.5, (304 material is 4-10, 316 material is 2-12)
4. The concentration of medium with particles doesn't exceed 2%.
|
Pump type |
Outlet diameter(mm) |
Capacity (m 3 /h) |
Head (m) |
Speed (r/min) |
Efficiency (%) |
Motor Power (KW) |
|
900LP(T)-4 |
900 |
8500 |
4 |
485 |
85.1 |
160 |
|
900LP(T)-6 |
8500 |
6 |
485 |
85.3 |
200 |
|
900LP(T)-8 |
8000 |
8 |
490 |
84.5 |
280 |
|
900LP(T)-10 |
10 |
590 |
84.9 |
315 |
|
900LP(T)-14 |
14 |
85.3 |
450 |
|
900LP(T)-16 |
16 |
85.2 |
500 |
|
900LP(T)-20 |
20 |
86.4 |
630 |
|
900LP(T)-25 |
25 |
85 |
800 |
|
900LP(T)-7-X |
7 |
490 |
85.1 |
250 |
|
900LP(T)-12.6-X |
9000 |
12.6 |
590 |
87 |
450 |
|
900LP(T)-17-X |
8000 |
17 |
85.5 |
560 |
|
900LPC-15 |
15 |
84.5 |
500 |
|
900LPC-15-X |
15 |
84.5 |
500 |
|
900LPC-20 |
20 |
85.5 |
630 |
|
900LPC-20-X |
20 |
85.5 |
630 |
|
1000LP(T)-4 |
1000 |
9500 |
4 |
485 |
87 |
185 |
|
1000LP(T)-7 |
10500 |
7 |
485 |
87.1 |
315 |
|
1000LP(T)-9 |
10000 |
9 |
490 |
84.5 |
355 |
|
1000LP(T)-10 |
10 |
85.2 |
400 |
|
1000LP(T)-13 |
13 |
85.3 |
500 |
|
1000LP(T)-16 |
16 |
85.6 |
630 |
|
1000LP(T)-18 |
18 |
85.8 |
710 |
|
1000LP(T)-20 |
20 |
86.4 |
800 |
|
1000LP(T)-7-X |
10500 |
7 |
485 |
87.1 |
315 |
|
1000LP(T)-13-X |
10000 |
13 |
490 |
85.3 |
500 |
|
1000LP(T)-17-X |
17 |
85.5 |
710 |
|
1000LPTC-15 |
9000 |
15 |
84.5 |
560 |
|
1000LPTC-15-X |
15 |
84.5 |
560 |
|
1000LPTC-20 |
20 |
590 |
86 |
710 |
|
1000LPTC-20-X |
20 |
590 |
86 |
710 |
