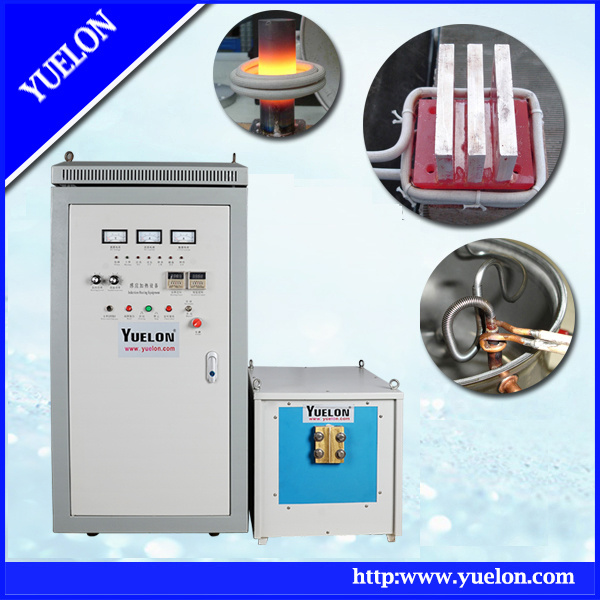

SF-100AB
Main specifications:
Maximum output power: 100KW
Frequency: 10-40KHz
Maximum input current: 200A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: 0.1Mpa 50L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:
Model Net weight(KG) Size: L x W x H (mm) Packing weight Pacing size: L x W x H (mm)
SF-100AB generator 121KG 770x510x1100mm 218KG 880x1020x1200mm
SF-100AB transformer 91KG 560x440x530mm
Main characteristics:
1. IGBT inversion technology based LC series circuit.
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: Converts up to 97.5% above of the expended energy into useful heat. Energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely.
9. can substitute traditional heating methods.
Main characteristics:
>MOSFET power component and current inverting technologies have been used.
>simple structure and light weight.
> simple to operate, a few minutes is enough to learn it.
> simple to install, installation can be donne by unprofesstional person very easily.
> mul-tidisplay functions, with displays of over current, over voltage, water failure, phase failure and unfit lad
and so on, machine can be protected from destroys and machines can be repaired easily.
> light weight, small size.
> different shape and size of induction coil can be changed easily to heat different parts.
> advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch
production to improve the repeatability.
> the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space
to increase the reliability; with the small size and light weight of the separated transformer, it is conveient to
use in the production line and easily assembled inside the machinery or moved mechanism.
Application:
Rod forging
Bolt, nut forging
Heat treatment of shaft, gear, pin, etc.
Shrink-fitting
Annealing of pipe welding etc.
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
