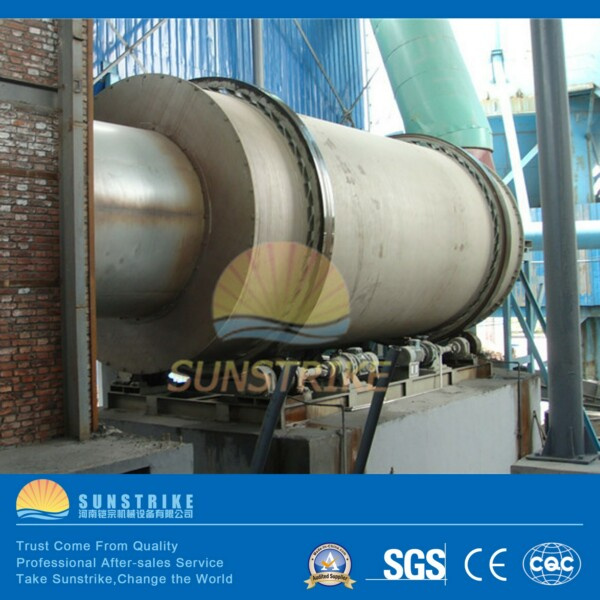

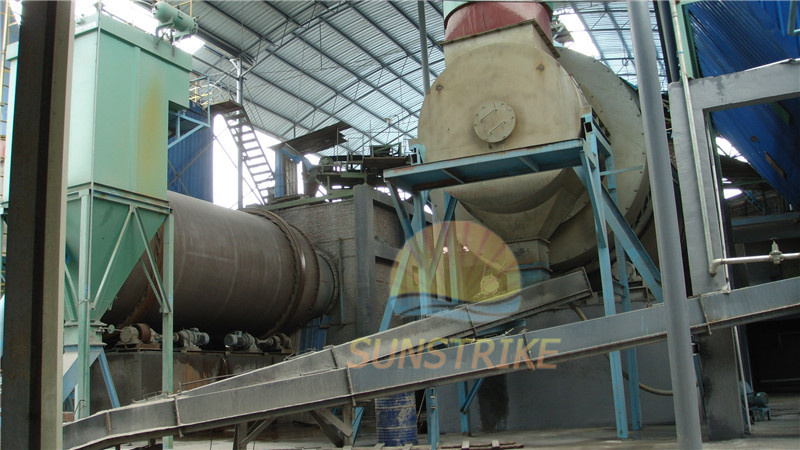

High effect Three cylinder quartz sand rotary dryer with large capacity
Quartz sand dryer is high efficient combination dryer.New type quartz sand dyer is uses the latest energy-saving technologies
in Europe-Mosaic structure,inside the dryer cylinder tube,middle tube and outer tube forming a since the insulation and close structure.
Special design concept of thermal process,elimination the problem of wind loss heat dissipation,increase the heat exchange area
and per unit volume evaporation intensity,this reduce energy consumption and improves drying efficiency, this type three cylinder quartz sand dryer is alternatives of traditional dryer equipment of environmental friendly and energy-saving products.
New type quartz sand dryer is suitable to drying quartz sand,yellow sand,slag,clay and other material, it widely used to Building
Materials,chemical industry,Casting and other industries,the fuel can use coal,oil,natural gas and other fuel.
Quartz sand dryer main features:
1.Equipment investment is 20-40% of the imported products, product use wear resistant manganese plates,
than ordinary steel wearable 3-4 times.
2.Before drying the material moisture is higher than 15%, after drying finish moisture can reach 0.5%.The thermal efficiency of more
than 40% higher than traditional single rotary dryer.
3.The fuel of this dryer can use coal,oil, natural gas or other fuel,can drying the material size below 30mm.
4.The cover area this dryer only 40% of common dryer,Construction investment is reduced by about 60%,easy installation.
5.No air leakage phenomenon, solved the sealing difficulties
Technology data of Three cylinder quartz sand Dryer:
| Model | Length (m) | speed (r/min) | Drying temperature (°c) | Capacity (t/h) | Motor (kw) | Weight (ton) |
| Φ0.8x8 | 8 | 3-8 | ≥800 | 0.6-0.8 | 3 | 3.5 |
| Φ1.0x10 | 10 | 3-8 | ≥800 | 1-1.5 | 4 | 7 |
| Φ1.0x12 | 12 | 3-8 | ≥800 | 1.5-1.8 | 4 | 8 |
| Φ1.2x12 | 12 | 3-8 | ≥800 | 2-3 | 11 | 15 |
| Φ1.5x15 | 15 | 3-8 | ≥800 | 3-3.5 | 15 | 20 |
| Φ1.8x15 | 15 | 3-8 | ≥800 | 4.5-5.0 | 18,5 | 28 |
| Φ2.0x18 | 18 | 3-8 | ≥800 | 6-6.5 | 18.5 | 42 |
| Φ2.0x20 | 20 | 3-8 | ≥800 | 6.5-6.8 | 18.5 | 50 |
| Φ2.2x20 | 20 | 3-8 | ≥800 | 6.5-7.0 | 22 | 56 |
| Φ2.4x20 | 20 | 3-8 | ≥800 | 7.5-8 | 30 | 60 |
| Prod Model: | SKS |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Q235B Carbon Steel Plate or as Client Requirement |
| Installation: | Supplier Dispatch Engineer |
| Voltage: | 380 V Others |
| Power(W): | 5.5-110 Kw |
| Dimension(L*W*H): | Different Model Different |
| Weight: | 6- 300 Ton |
| Certification: | CE, ISO9001:2000 |
| Warranty: | Two Years |
| Application: | Construction,Metallurgical,Mining Industry etc |
| Drying Temperature: | 200-1000 Degree |
| Structure: | Rotary Type Drier |
| Operational Method: | Continuous |
| Operation Pressure: | Atmospheric Dryer |
| Movement Way: | Fixed |
| Heating Mode: | Hot Air |
