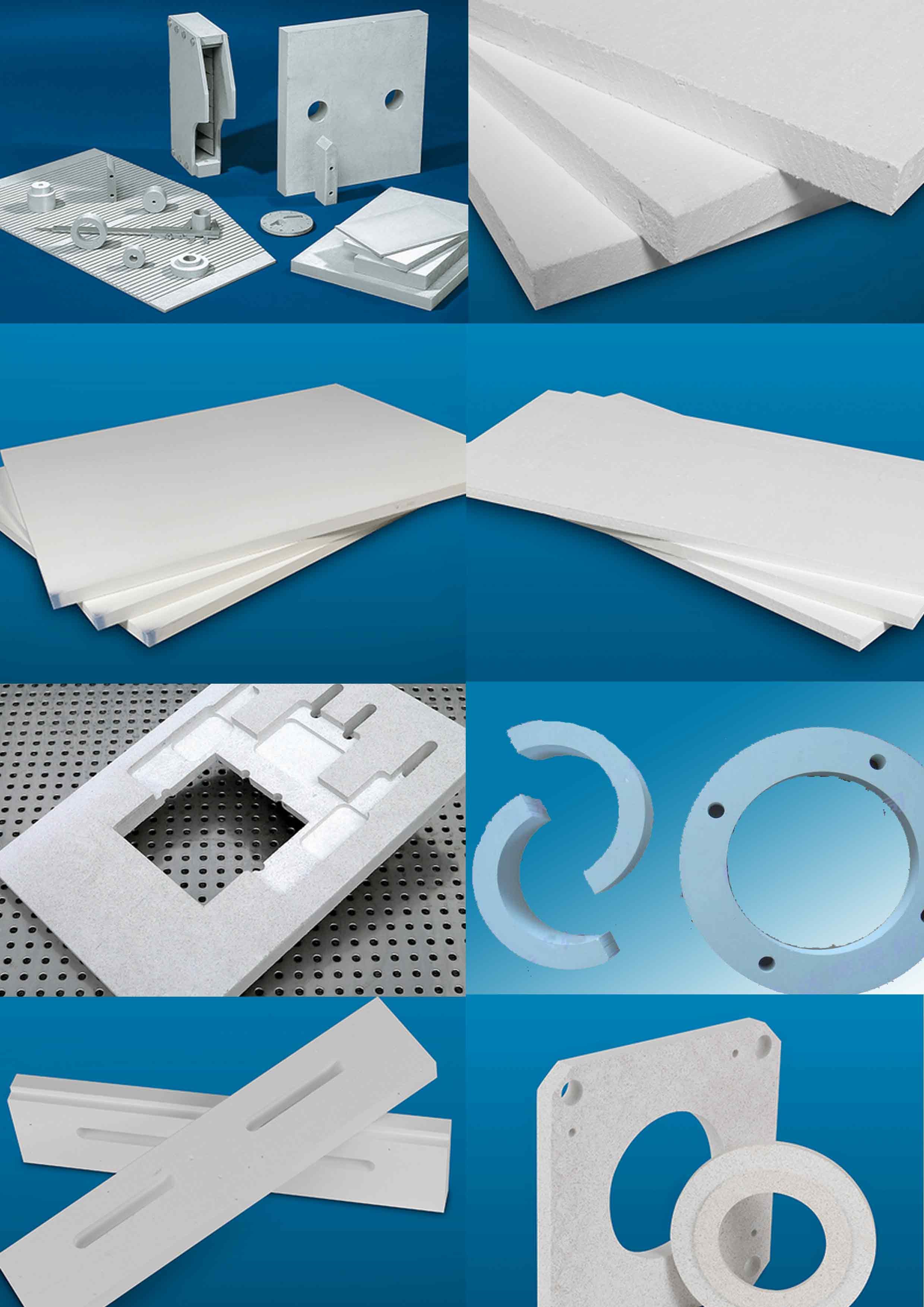

With density range 800-1000 kgs/m3 , high density calcium silicate insulation board is developed for the non-ferrous industry used for feeding ,casting and molding of molten aluminum and other non-ferrous metals, also can be used for clamping fixture of glass industry . In addition to its insulation, its characteristic of non-stick aluminum exerts a large. Superior strength and good process ability makes it the preferred material for precision CNC machined parts and complex components. There are two types, namely, glass fiber reinforced and carbon fiber reinforced.
Technical calcium silicate is a high performance technical ceramic manufactured from calcium silicate, it is asbestos and quartz free. The densities are ranging from 850 to 1100 kg/m³) and can be machined to very close tolerances. The non-wetting properties make these products ideally suited for non-ferrous metal casting applications. They are also used in a wide range of thermal process applications, and are rated for continuous use to 1832 °F (1000°C).
As a refractory material, it can be used in metal flow control applications in the aluminum industry, and as "hot face" linings in holding furnaces, die casting units and heat treatment equipment.
Technical calcium silicate board has high dimensional stability, and incorporates a unique particle reinforcement to increase fracture toughness and thermal shock resistance. These improvements extend the service life of the refractory components, and reduce operating costs.
Our products are widely used in billet and ingot casters as spouts, floats, trough dams, skim dams etc. Because of low shrinking, some of the material is very suitable for billet casting applications. The various of grades have specially tailored properties designed for use in specific applications in the metal casting industry.
Characteristic
Special carbon fiber makes it unparalleled strength and low shrinkage
Low thermal conductivity ,low heat losses at higher temperature|
Non wetted by molten aluminum
Resistance to thermal shock
Excellent machining
Asbestos-free
Application

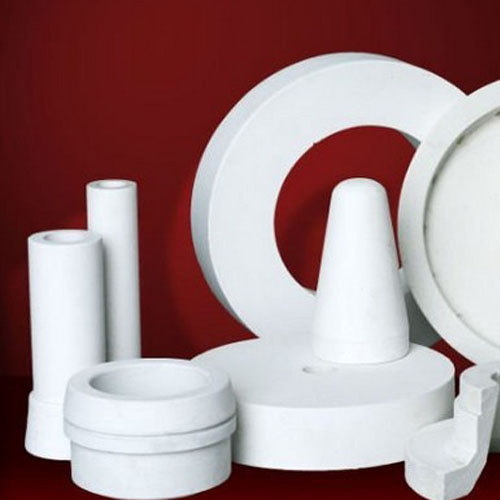

Furnace inside lining Continuous caster tips Transition plate Baffle plates Gasket,stopper Through liners Floats,Spouts Head box
North Refractories Co. Ltd (NRCL) was founded by Mr Sun from 15 years ago and from the year 2007 we started our exporting business via our sales company Beijing North Refractories Co. Ltd, we focus on refractory and heat insulation materials manufacturing, serving for wide range industries where high temperatures exist. Such as steel & iron, aluminum, glass industry, ceramics, power plant, petrochemical, foundry industries and so on.
Main product list:
CERAMIC FIBER INSULATION: Ceramic fiber blankets, ceramic fiber boards, ceramic fiber modules, ceramic fiber bulk, ceramic fiber papers, ceramic fiber felt, ceramic fiber top out cone, ceramic fiber special shapes, ceramic fiber binders, ceramic fiber coatings.
ECO FIBER INSULATION MATERIALS: Soluble fiber blankets, soluble fiber board, soluble fiber paper
CALCIUM SILICATE INSULATION MATERIALS: Calcium silicate pipe section, calcium silicate 650C, calcium silicate 1000C, calcium silicate block 1100C, super calcium silicate, high density calcium silicate insulation shapes, non-wetting calcium silicate, water proof calcium silicate board, carbon fiber reinforced calcium silicate, glass fiber reinforced calcium silicate.
REFRACTORY BRICKS: High alumina refractory bricks, SiC bricks, Fused Cast Refractory Bricks.
