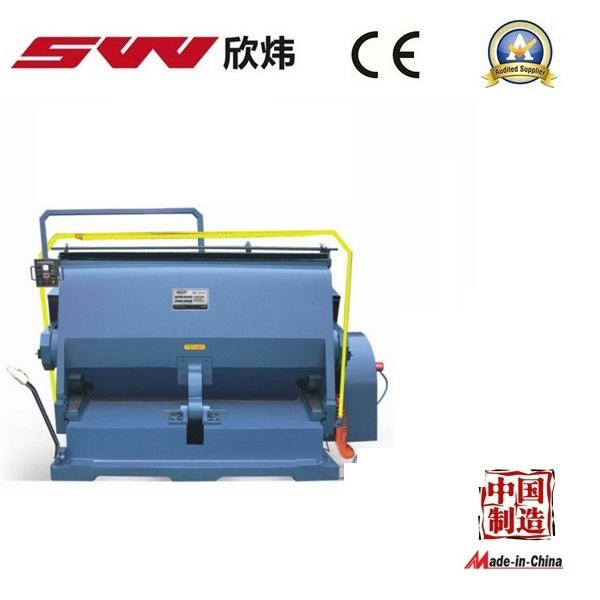

Die cutting and creasing machine IS cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
Features:
1)High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 3-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Single, continuous operation and opening delay are available, delay range adjustable.
6) Reliable safety system.
7)Adjustable chases with movable bar
|
Model |
Max. inner chase size |
Working speed |
Creasing length |
Motor power |
Weight |
Overall dimension |
|
|
mm |
strokes/min |
mm |
KW |
T |
mm(L*W*H) |
|
ML750 |
750*520 |
25±2 |
<15 |
2.2 |
2.0 |
1450*1600*1450 |
|
ML930 |
930*670 |
23±2 |
<25 |
3.0 |
3.0 |
1670*1670*1630 |
|
ML1100 |
1100*800 |
20±2 |
<32 |
4.0 |
4.5 |
1900*1780*1700 |
|
ML1200 |
1200*830 |
20±2 |
<35 |
4.0 |
4.8 |
1920*2140*1920 |
|
ML1300 |
1300*920 |
18±2 |
<40 |
5.5 |
6.0 |
2000*2140*2000 |
|
ML1400 |
1400*1000 |
17±2 |
<45 |
5.5 |
6.8 |
2010*2400*1930 |
