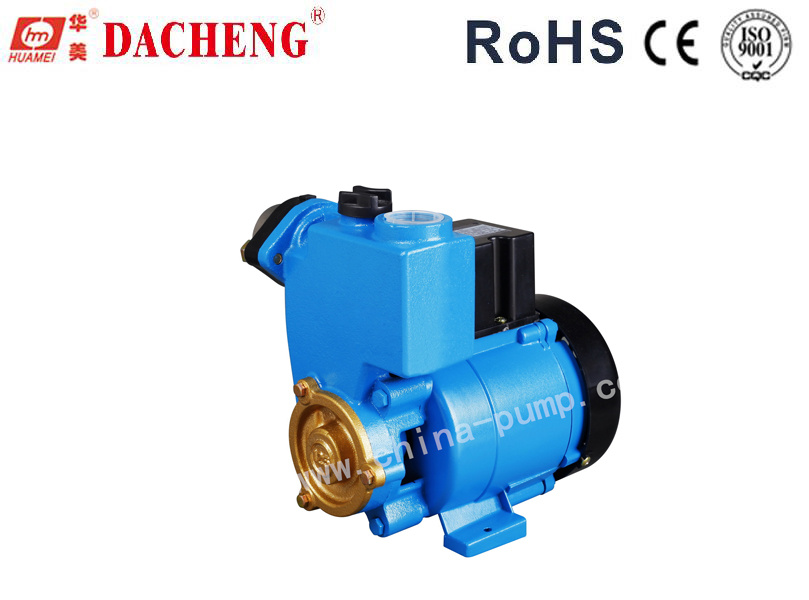

Gp Series Self-Priming Water Pump (GP-200)

GP Series self-priming peripheral pumps

This series pumps are with peripheral impeller containing numerous radial blades in its edge. Self-priming because the particular design of the pump body ensures the elimination of any air in the suction piping.



OUR ADVANTAGE

1. Matured channels for purchasing high quality raw material
2. Advanced equipments to manufacture and process the pump parts
3. Rigorious check for pump castings, stators before any piece of product leave the factory
4. Multiple and Perfect assembling lines
5. Export-standard packing skill


FEATURES

1. Models: SOP-30
2. Stator: 100% pure wire coil( copper or aluminum as you require)
3. Rotor: Enough sillicone steel sheet with high durability
4. Shaft: Rust resistance with 45# steel or stainles steel
5. Compact size and Simple operation
6. Heavy duty continuous work.
7. High-efficient and Low noise

CONSTRUCT

Pump

Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/ceramic/Stainless Steel

Motor

Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
Insulation class: B and F
Protection class: IP44 or IP54
Power: 220-240V 50Hz( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)

OPERATING CONDITION

Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty

TECHNICAL DATA(220-240V/50Hz)

Model

Single-phase Motor

N=2850r/min

Inch

PACKAGE DIMENSION&G.W

PACKING QTY   20' CONT

Input max

Output power

Current

Q.max

H.max

Suct.max

L

W

H

Kg

KW

KW

HP

A

L/min

m

m

GP-200

0.45

0.25

0.32

2.00

45

40

9

1''*1''

300

200

250

7.8

2600PCS
