Prod Model: |

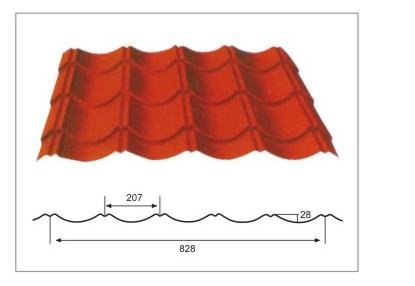

XS-828 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Suitable To Process: |
Color Steel Plate |
Thickness Of The Plate: |
0.3-0.8mm |
Width Of The Plate: |
1-1.25m |
Productivity: |
2-4m/Min |
Size: |
6*1.4*1.2m |
Weight: |
3.5t |
Forging Forming Method: |
Mold Forging |
Product Description
Our machine has been designed according to the customers' requirment.
We can provide technical guilding, installation, debugging, production and maintenance service.
We have 9 years professional experience in the field of Roll Forming Machinery.
Main parameter
MACHINE COMPONENTS: (1) Un-coiler 1 set(2) Roll-Forming M/C 1 set(3) Hydraulic Pump station1 set(4) Hydraulic Cutting 1 set(5) PLC Control System 1 set
Rack 1set
Process flow
Feeding ---Roll Forming--Cutting --Racking
Suitable to process |
Color steel plate |
Thickness of the plate |
0.3-0.8mm |
Width of the plate |
1-1.25m |
Productivity |
2-4m/min |
Rollers |
10 |
Rolling material |
Forging steel 45# |
Diameter of the roller |
Φ70mm |
Mould material |
45#,lathe-turning,chrome-plating |
Frame |
250H |
Specifications of frame |
Q235 |
Thickness of the frame |
12mm |
Chian |
15.24mm |
Reducer |
NO.4(speed ratio1:59) |
Control system |
PLC |
Size |
6*1.4*1.2m |
Weight |
3.58t |
Main motor power |
3kw |
Hydraulic power |
4kw |
Voltage |
380V OR 220V |
|
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
