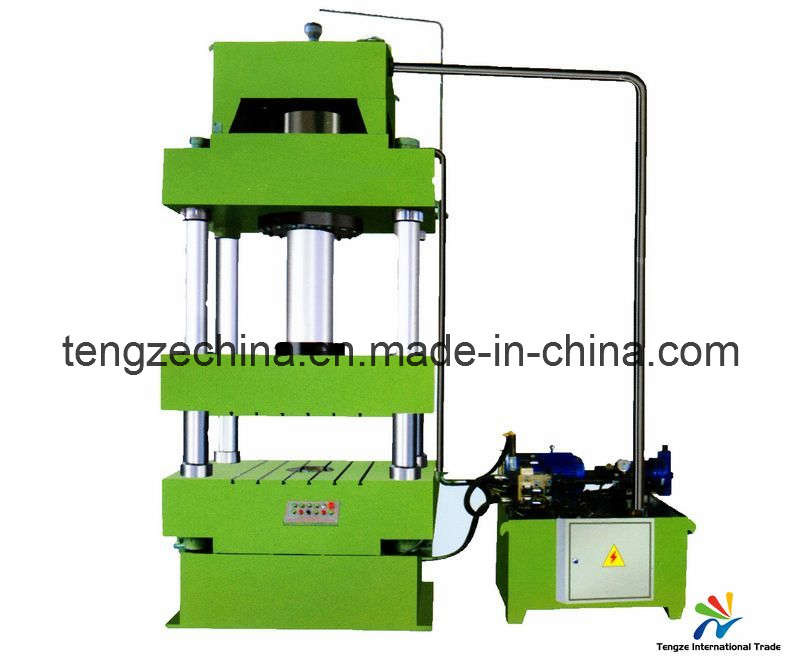

Glass Steel Compactor Press
Y32 series four-column hydraulic press is 3 beams 4 poles structure. The electricity adopts the PLC controller, the hydraulic system adopts the advanced cartridge inserted valve or slide valve system to control the hydraulic machine by manipulatively collecting button. Like a folding machine or moulding machine, when fitted with suitable die, this machine can be used to press the flange of metal, suppress and the powder products, plastic, glass steel, insulation material and rubber.
Its pressure speed and stroke can adjusted according to the requirements of technics, and it can finish two kinds of craftwork modes including extruding form and running form.
|
Model |
Nominal force |
Side Block Stroke(mm) |
Aperture Height(mm) |
Working Platform Size |
Ejecting Force |
Ejecting Stoke |
(mm/s)Slide Block Speed |
Power(kw) |
|
Left and Right(mm) |
Front and Back(mm) |
|
(kn) |
Zero Load DOWM |
Work |
Back Hual |
|
|
|
Y32-25 |
250 |
360 |
600 |
500 |
420 |
|
|
110 |
20~40 |
150 |
5.5 |
|
Y32-40 |
400 |
350 |
700 |
460 |
460 |
|
|
55 |
10 |
105 |
5.5 |
|
Y32-63 |
630 |
400 |
600 |
570 |
500 |
180 |
150 |
115 |
10 |
105 |
7.5 |
|
Y32-75 |
750 |
500 |
750 |
590 |
500 |
300 |
250 |
110 |
25~45 |
95 |
7.5 |
|
Y32-100 |
1000 |
600 |
900 |
720 |
580 |
300 |
200 |
22 |
14 |
47 |
7.5 |
|
Y32-100A |
1000 |
600 |
900 |
630 |
630 |
500 |
300 |
60 |
20~40 |
95 |
11 |
|
Y32-160 |
1600 |
710 |
1000 |
900 |
800 |
300 |
200 |
120 |
10 |
60 |
11 |
|
Y32-200 |
2000 |
710 |
1120 |
900 |
900 |
400 |
250 |
100 |
11 |
88 |
15 |
|
Y32-200B |
2000 |
710 |
1120 |
1000 |
900 |
400 |
250 |
90 |
18 |
80 |
15 |
|
Y32-315 |
3150 |
800 |
1250 |
1120 |
1120 |
630 |
300 |
100 |
12 |
50 |
22 |
|
Y32-315A |
3150 |
800 |
1250 |
1250 |
1120 |
630 |
300 |
100 |
12 |
60 |
22 |
|
Y32-400 |
4000 |
800 |
1250 |
1250 |
1250 |
630 |
300 |
120 |
8 |
92 |
30 |
|
Y32-500 |
5000 |
900 |
1500 |
1400 |
1400 |
1000 |
300 |
120 |
10 |
80 |
37 |
|
Y32-500A |
5000 |
900 |
1500 |
2200 |
1400 |
1000 |
300 |
120 |
10 |
80 |
37 |
|
Y32-630 |
6300 |
1000 |
1600 |
1900 |
1600 |
1250 |
350 |
120 |
8 |
90 |
44 |
|
Y32-630A |
6300 |
1000 |
1600 |
3200 |
2200 |
1250 |
350 |
120 |
12~6 |
90 |
44 |
|
Y32-1000 |
10000 |
1000 |
1600 |
2000 |
1800 |
2000 |
450 |
100 |
10 |
60 |
60 |
