Home Casting & Forging Products Gear Cover

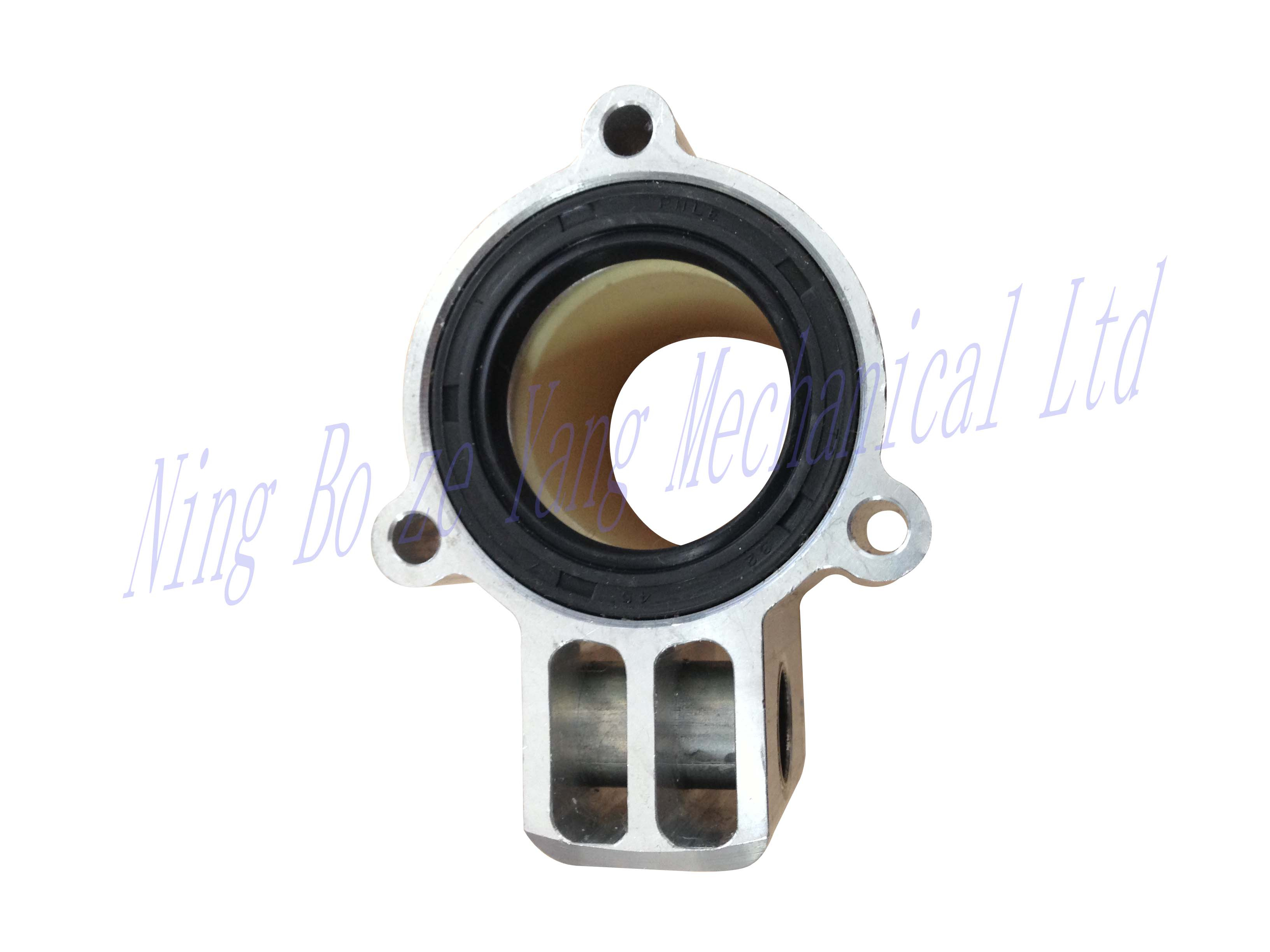

Gear Cover

Gear Cover
Price: US $ 5000/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T
Die casting is a professional manufacturing tech for metal forming industry. We can offer Aluminium die casting, zinc die casting, copper die casting. And with the service for post-treatment, such as blasting, polishing, machining, plating, anodizing, as well as good service, we hope we can earn your trust in this field...? Sometimes, we use Cast& flow simulation software to help to get good quality control for die casting production.? For cold chamber process, the molten metal is ladled into the cold chamber for each shot. There is less time exposure of the melt to the plunger walls or the plunger. This is particularly useful for metals such as Aluminum, and Copper (and its alloys) that alloy easily with Iron at the higher temperatures. Such as Aluminium Die Casting we ca offer.? For hot chamber process the pressure chamber is connected to the die cavity is immersed permanently in the molten metal. The inlet port of the pressurizing cylinder is uncovered as the plunger moves to the open (unpressurized) position. This allows a new charge of molten metal to fill the cavity and thus can fill the cavity faster than the cold chamber process. The hot chamber process is used for metals of low melting point and high fluidity such as tin, zinc, and lead that tend not to alloy easily with steel at their melt temperatures. Such as Zinc Die castings, Copper Die castings we offer.? Pressure die casting is a competitive casting method when the components are needed at high volumes or when better tolerances and surface finish are required than can be achieved by gravity die casting. The need for machining is very low due to the close casting tolerances. Heat treatment of pressure die casting is not possible but due to the high rate of solidification the mechanical properties are good.? Our factory have Large spectrum of die casting machines (280T - 1600T), can produce Variety of alloys available to meet in house production requirements and to provide quality custom-made die-casting parts for other industries. ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
Item Description Contents
Die casting mould Mold core material H13, Dievar, DAC 55, Germany 12344V, etc.
Mold core treatment Vacuum hardening
Mold base material QT600, 45#, 50#, etc.
Mold base treatment Thermal refining
Max mould 2000T
Leading time 50 days
Die casting parts Name: Gear Housing For Solar Generator
Material: ADC12/A380/A360/Alsi9MgMn/Alsi12Cu2Fe
Surface treatment: Electrophoresis
Package: Bubble Pack & Carton & Pallet
Capacity: 2000/month
MOQ: 500pcs
Industry: Solar energy fittings
Production Equipment Electric discharge machines  EDM: LCG703D2 16P       DA7140
  BM70                  DA7135
  BM50                  EDM3540M-A
Toshiba die casting machine
LKTECH die casting machine
Natural gas concentration meling furnace
CNC amchining center: TMC-960             TMC-900
  HTM-850G           HTM-1500G
CNC lathe: L-5A                   C6250A
  C0632A               DB7155
Infiltration production line
Shot-blasting machine
Carving machine: DC-42                   DC-2007
Knee type milling machine : X6130A                 500T
  X53K                      400T
Grinding machine: MT140/G                280T
  M7163*12G/GM       160T
Shot-blasting machine
Testing Equipment Ultrasonic washing equipment
High-precision CMM
Spectrograph
X-ray flaw detector
Salt fog tester
Universal tensile testing machine
Roughness measuring instrument
Hardness tester
Projector
3000i Flexible 3D Measurement System
Rockwell Hardness Tester

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ningbo Jiangdong ZeYang Machinery Co., Ltd. is engaged in comprehensive multi-business, industry and trade integration of mold designing & manufacturing, aluminum alloy and zinc alloy casting, precision machining, heat treatment and surface treatment. It's located in No. 16-1 Zhousudu Road Jiangdong, Ningbo, China. Our own factory-Ningbo High-tech Zone Sansheng Aluminum Co., Ltd was established in 1998. We got export license at year 2008 with name of ZeYang. Our worldwide sales cover Canada, USA, Germany, Israel, France, Sweden, Norway, Italy, Chile, Peru, South Korea, etc. We are also qualified supplier of Flextronics. In 2012, we successfully set a new agent in Israel which is also responsible for worldwide sales.
From designing to delivery; From manufacturing to end testing; From single part to assembly, Zeyang people are full of enthusiam to focus on every single details to give every of our customers the star-level service!

We believe we can have a splendid cooperation in near future.
