Full Automatic 60tph Yellow Sand Dryer
| Price: |
US $ 50000-120000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

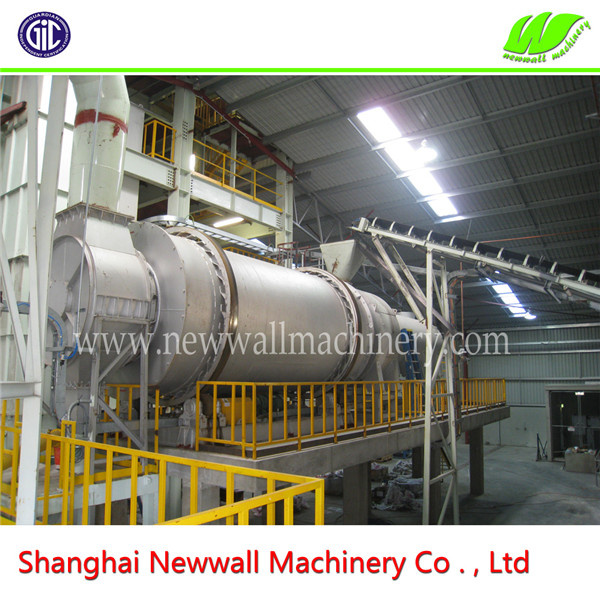

Three drum sand dryer
The three drum sand dryer can be applied in drying raw materials such as yellow sand, slag, clay, quartz sand etc...It's widely used in industries such as dry mortar, cement, building materials, glass, chemicals, and casting etc.
the heat efficiency of three drum sand dryer can be up to 80%. shorter length, it's easy to arrange the work site. gas burner is clean and save space.
General description:

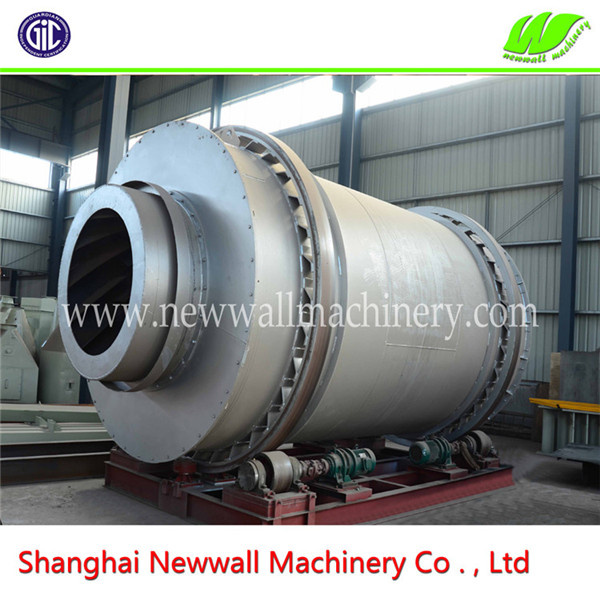

The dryer is assembled by three concentric-cylinders which halved joint with different diameters. Computer optimized stock
guide and lifting blade with different angles and spacing are installed inside the
cylinder, the structure can ensure that the material being dried runs along the
direction of screw under the impact of gravitation, stay sufficient time and good
dispersion in the cylinder to let the material exchange with the heat airflow from
air heating furnace inside of the cylinder. The special three-cylinder structure
makes the inner cylinder and middle cylinder being surrounded by the outer
cylinder to form a self-contained thermal insulation system, the radiated heat
from surface of inner and middle cylinder assist heat the material in the outer
cylinder, but the outer cylinder is at the low temperature end, so the heat
dissipation area and heat loss is reduced significantly.
Advantage:
1.Energy saving, the heat efficiency can be up to 80%,
2. Save space, just the 1/3 of single cylinder dryer.

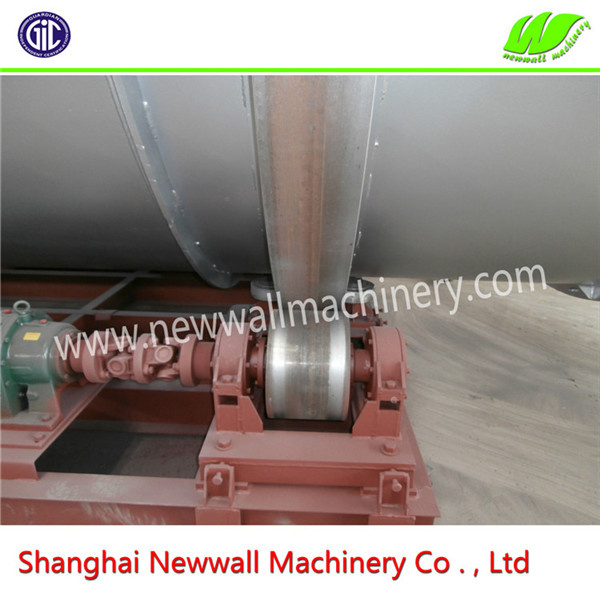

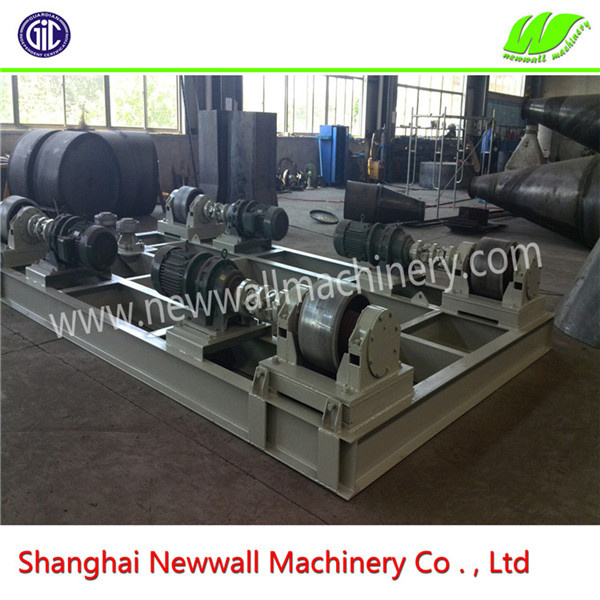

3. Friction transmission, lower noise
4. Low dust pollution
5. The cylinder and flying plate use alloy steel, double service life than normal steel.
6. Can use coal, gas or oil as fuel.
| Prod Model: |
NWS-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Dry Sand, Slag, Limestone |
| Capacity: |
60tph |
| Fuel: |
Gas, Oil, Coal |
| Powder: |
44kw |
| Dust Collector: |
Cyclone and Tank Dust Collector |
| Moisture Before Drying: |
15% |
| Moisture After Drying: |
<0.5% |
| Output Temperature: |
50-65°c |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Combined |
Shanghai Newwall Machinery Co., Ltd was found in 2012, and is the Changzhou
Longcheng Powder equipment Co., Ltd independent investment company
Engaged in foreign trade import and export.
Changzhou Longcheng powder equipment Co., Ltd locates in Changzhou, two and
Half hours by car from Shanghai. It has started to develop and produce of dry mixed
Mortar equipment since 2003, It is an earlier professional manufacturer of dry mixed
Mortar equipments in China.
It turns into a hightech enterprise integrated with technology development, manufacturing
And installation, presale support and after service from a company whole produce single
Machine.
To improve product quality, we set up a research and development center of new material
Technology and equipment with Changzhou Institute of Engineering Technology jointly, it
Specially develop dry mortar formulation, production technology and related equipments based
On different raw materials and technical requirements. Till now, we have finished over 100
Projects at home and abroad and all get favorable comment. The three tube dryer, dry mortar
Mixer and control system are awarded the patent and has own intellectual property right.
Longcheng company was assessed National dry mortar production and related equipment
Manufacturing approved enterprise in 2009. During our entrepreneurship and development, we
Adhere to our management policy is quality is first, customer is supreme, honesty is base.
Longcheng company anticipated hand in hand cooperates with you, altogether creates magnificently.
